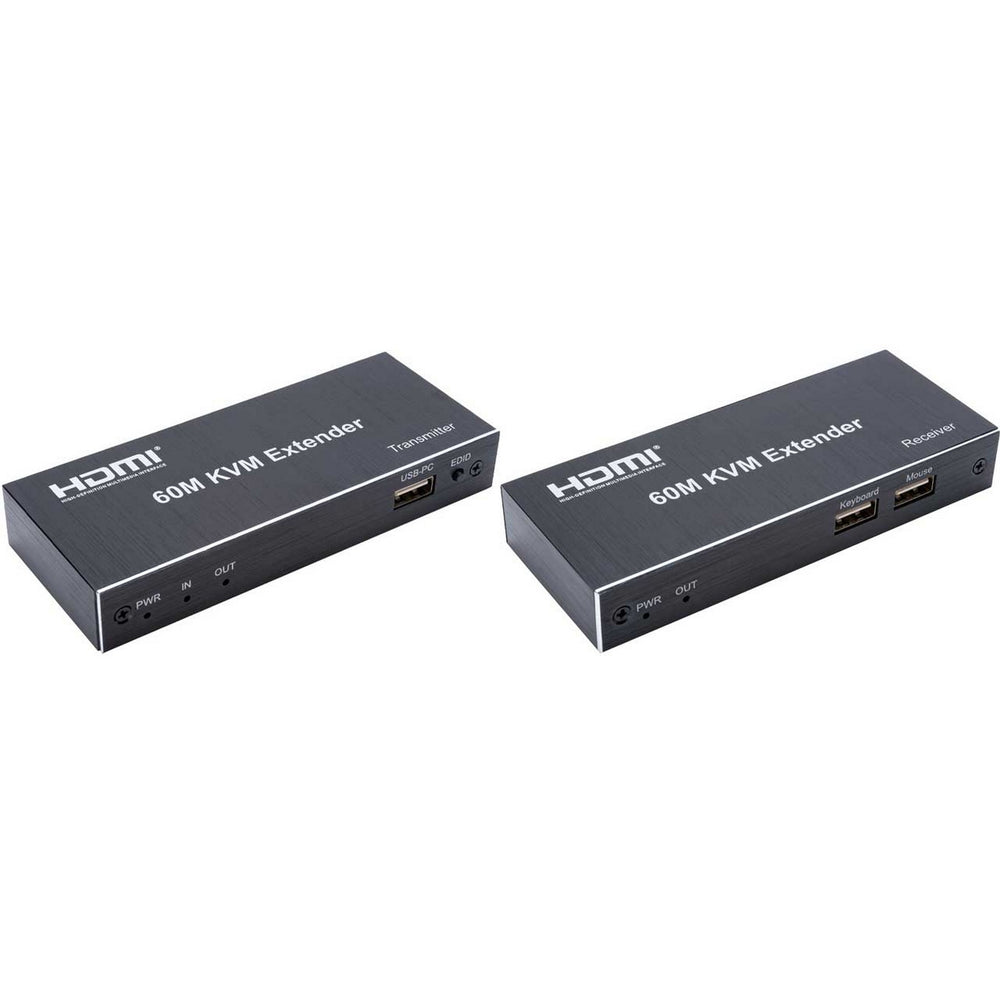

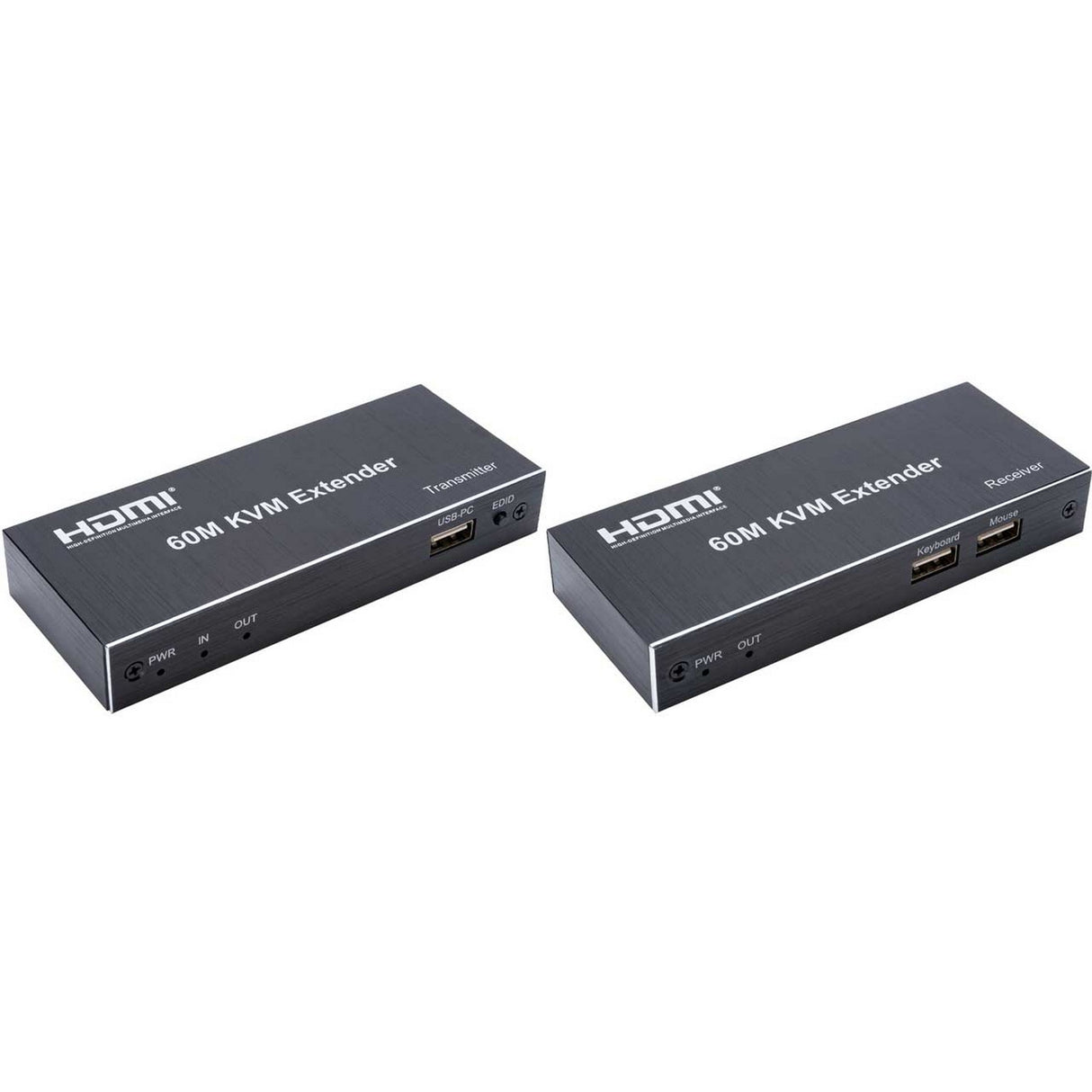

Ocean Matrix OMX-01KVKV0002 1080p 60Hz HDMI KVM Extender over CAT5E/6

Control your computer effectively from distances of up to 60 meters with the cost-efficient Ocean Matrix OMX-01KVKV0002 1080p 60Hz HDMI KVM Extender over CAT5E/6. This device extends HDMI signals, keyboard, and mouse via USB, and stereo audio via a 3.5mm Mini connection, all carried over a single CAT6/CA6A ethernet cable. Ideal for conference rooms, command centers, and any setup requiring long-distance computer control.

The Ocean Matrix 01KVKV0002 ensures high-quality performance with full 1080p/60Hz support. An outstanding feature of this OMX KVM extender is the built-in IR control function, making it suitable for digital signage applications. Additionally, a front panel EDID switch enables easy selection between 720P and 1080P for compatibility with various monitor types.

Key Features

• Capable of handling resolutions up to 1080P at 60Hz
• Features a local loop-out function
• Allows for transmission distances of up to 60 meters or 197 feet
• Designed with low power consumption and operating temperature
• Both transmitter and receiver units support 3.5mm stereo audio

Technical Specifications

Transmission Distance
Up to 60m/197ft via CAT5e/6
HDMI Input
1080p/1080i/720p/576p/576i/480p/480i
HDMI Output
1080p/1080i/720p/576p/576i/480p/480i
Max Bandwidth
150MHz
Max Baud Rate
4.5Gbps
Input Video Signal
0.5~1.5Volts p-p
Output DDC Signal
5 Volts p-p (TTL)
Input HDMI Cable Distance
≤ 10m AWG26 HDMI Standard Cable
Output HDMI Cable Distance
≤ 15m AWG26 HDMI Standard Cable
TX Max Working Current
450mA
RX Max Working Current
350mA
Power Adapter Format
Input AC (50HZ, 60HZ) 100V-240V; Output DC5V/1A
Operating Temperature range
5 to 113°F (-15 to +45°C)
Operating Humidity Range
5 to 90% RH (No Condensation)
TX Weight
108g
RX Weight
108g
Dimensions (LxWxH)
4.78 x 1.97 x 0.74" (122 x 50 x 19 mm)
Weight
0.24 lbs / 3.8 oz / 107 grams
Warranty
1 Year
