Ocean Matrix OMX-01UBUB0001 USB 2.0 Extender over Cat6e
Ocean Matrix OMX-01UBUB0001 USB 2.0 Extender over Cat6e
Free Shipping
Expand the range of your USB 2.0 signals well beyond the standard 15-foot limit of regular cables with the cost-effective Ocean Matrix OMX-01UBUB0001 USB 2.0 Extender over Cat6e. It offers a practical solution for scenarios requiring longer cable lengths without compromising data transfer speeds or reliability.

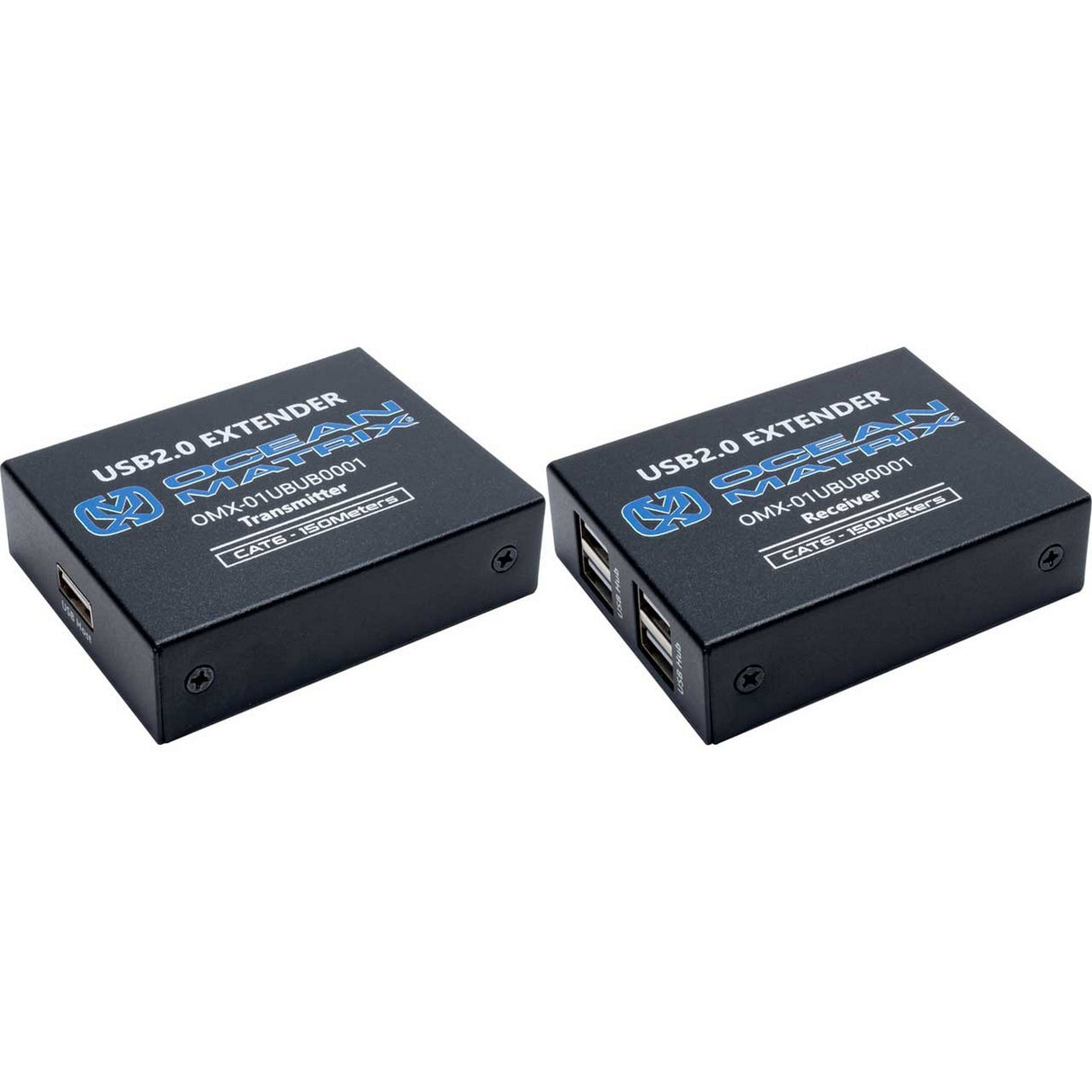

The OMX system consists of a transmitter and receiver, enabling signal extension up to 490 feet (via CAT6A). This allows users to establish a centralized control hub for various USB devices like computers, media players, and security equipment, eliminating the need for costly rewiring or equipment relocation.
Using standard CAT5e/CAT6/CAT6A cabling, the Ocean Matrix 01UBUB0001 supports USB 2.0 formats and features 4 USB 2.0 inputs at the receiver Hub. The transmitter can draw power from the source device, eliminating the need for an additional power supply. This system is perfect for applications in large production facilities, industrial machine control environments, distance learning setups, and medical facilities.
Key Features
- USB 2.0 high-speed support with compatibility for USB 1.1 full speed and USB 1.0 low-speed.
- Receiver "Hub" supports 4 USB 2.0 inputs, while the transmitter "Host" features 1 USB 2.0 output.
- CAT5e/6/7 network cables compatibility, with Cat5e transmission distance up to 100M and Cat6/7 transmission distance up to 150M.
- Ability to support USB hub connection.
- The Transmitter is powered by the source device, eliminating the need for an additional power supply.
- Enhanced protection against lightning, surges, and electrostatic discharge (ESD).
Technical Specifications
Compatibility
USB 2.0, USB 1.1, USB 1.0
Supports CAT5e / CAT6 / CAT6A / CAT7 / IEEE-568B Standard
Transmission Distance
Up to 150m via CAT6/6A/7; Up to 100m via CAT5e
Power Supply
TX Powered by Source Device | RX DC5V/1A
Power Consumption
TX ā¤ 0.69W | RX ā¤ 1.23W
Operating Temperature
-4 - 140Ā°F (-20 - 60Ā°C)
Storage Temperature
-22 - 158Ā°F (-30 - 70Ā°C)
Dimensions (LxWxH)
Both TX & RX
3.035 x 2.37 x 0.81
Weight
TX 0.275 lbs (125g) RX 0.288 lbs (130g)
Item Includes
OMX-01UBUB0001 USB 2.0 Extender Set (1 x Transmitter / 1 x Receiver)
1 x DC5V/1A
1 x USB Cable
Warranty
1 Year
