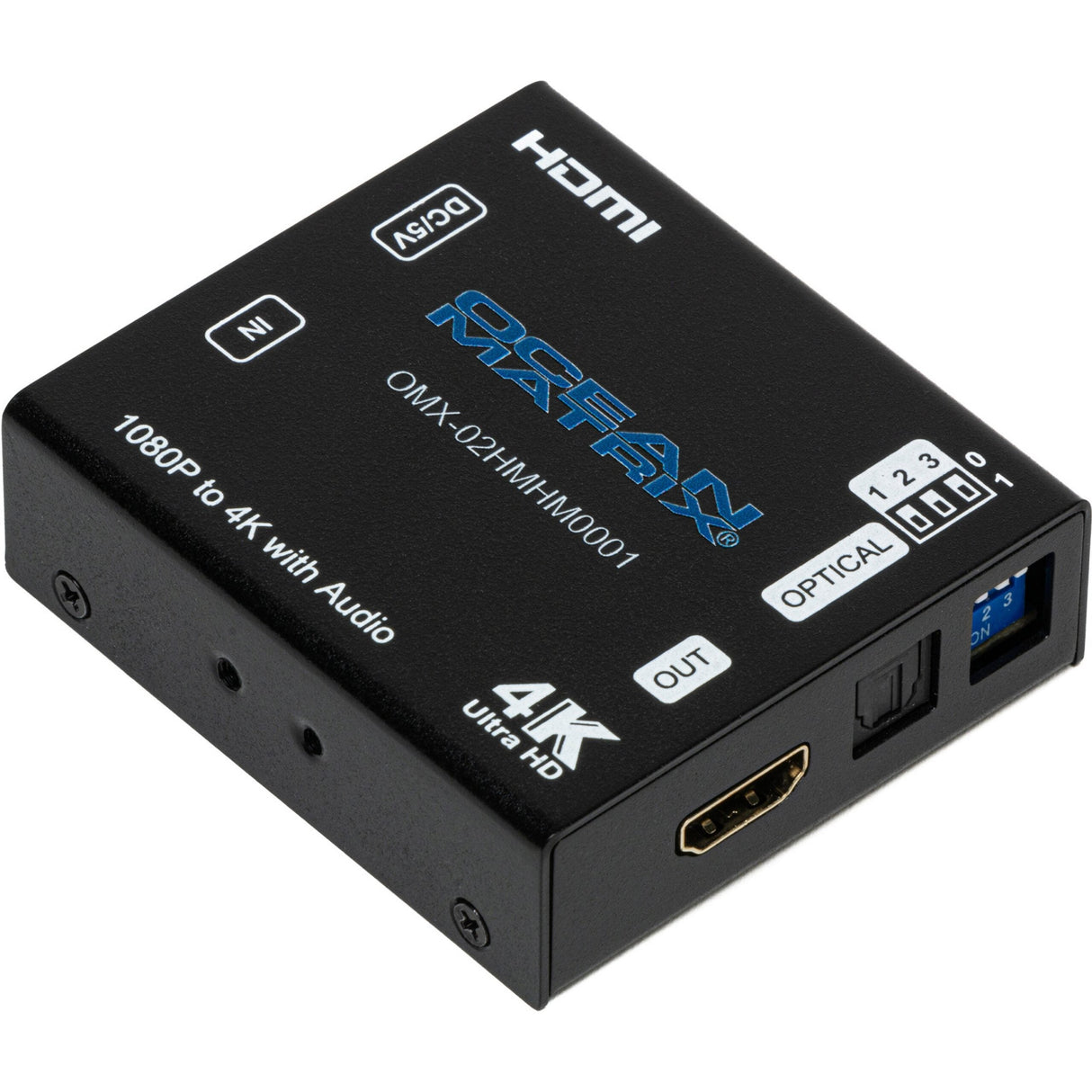

Ocean Matrix OMX-02HMHM0001 1080p to 4K/2K Scaler with S/PDIF Audio Extraction
Ocean Matrix OMX-02HMHM0001 1080p to 4K/2K Scaler with S/PDIF Audio...
Ocean Matrix OMX-02HMHM0001 1080p to 4K/2K Scaler with S/PDIF Audio Extraction
If you're looking for a low cost solution to scale 1080p to 4Kx2K, then look no further than the Ocean Matrix 02HMHM0001. This HDCP compliant unit features convenient audio extraction to SPDIF optical audio out for easy integration into sound systems. It'supports 36-bit deep color and 4Kx2K resolutions @ 30HZ. The Ocean Matrix 02HMHM0001 houses a bypass switch to maintain the original input signal when required. It's an effective way to match the native resolution of multiple displays in digital signage and sports bar applications.
Key Features
- Audio Extraction, S/PDIF Digital Audio Interface
- Supports EDID
- CEC Passthrough
- HDCP, MHL2.0 Compliant
- Black Powder-Coated Steel Cabinet
- FCC, CE Certified
Technical Specifications
Video Resolution
Deep Color 36bit at 1080p@60Hz
Transmission Distance
4K2K@30Hz up to 49.21 Ft / 4K2K@24Hz up to 65.62 Ft
Video Resolutions
up to 4K x 2K (3840 x 2160 @ 30Hz)
Audio Formats
PCM, Dolby Digital, DTS Digital Surround Audio
Power Consumption
1.5W
Dimensions Each Unit
2 7/8 x 2 1/2 x 7/8 Inches
Weight
4.9 oz
Item Includes
1-5VDC/1A Power Supply, 2- Mounting Brackets, 4-Screws
Warranty
1 Year
