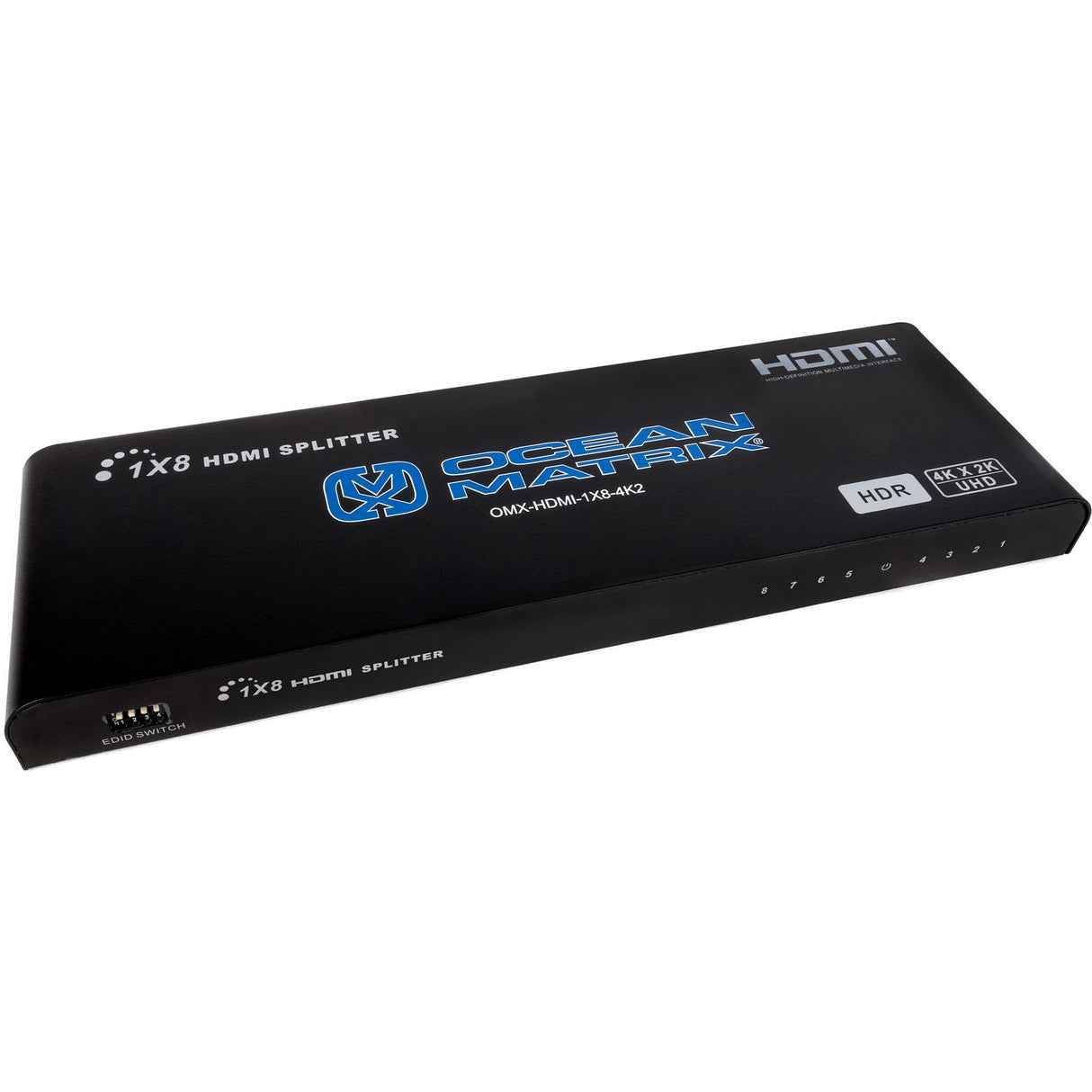

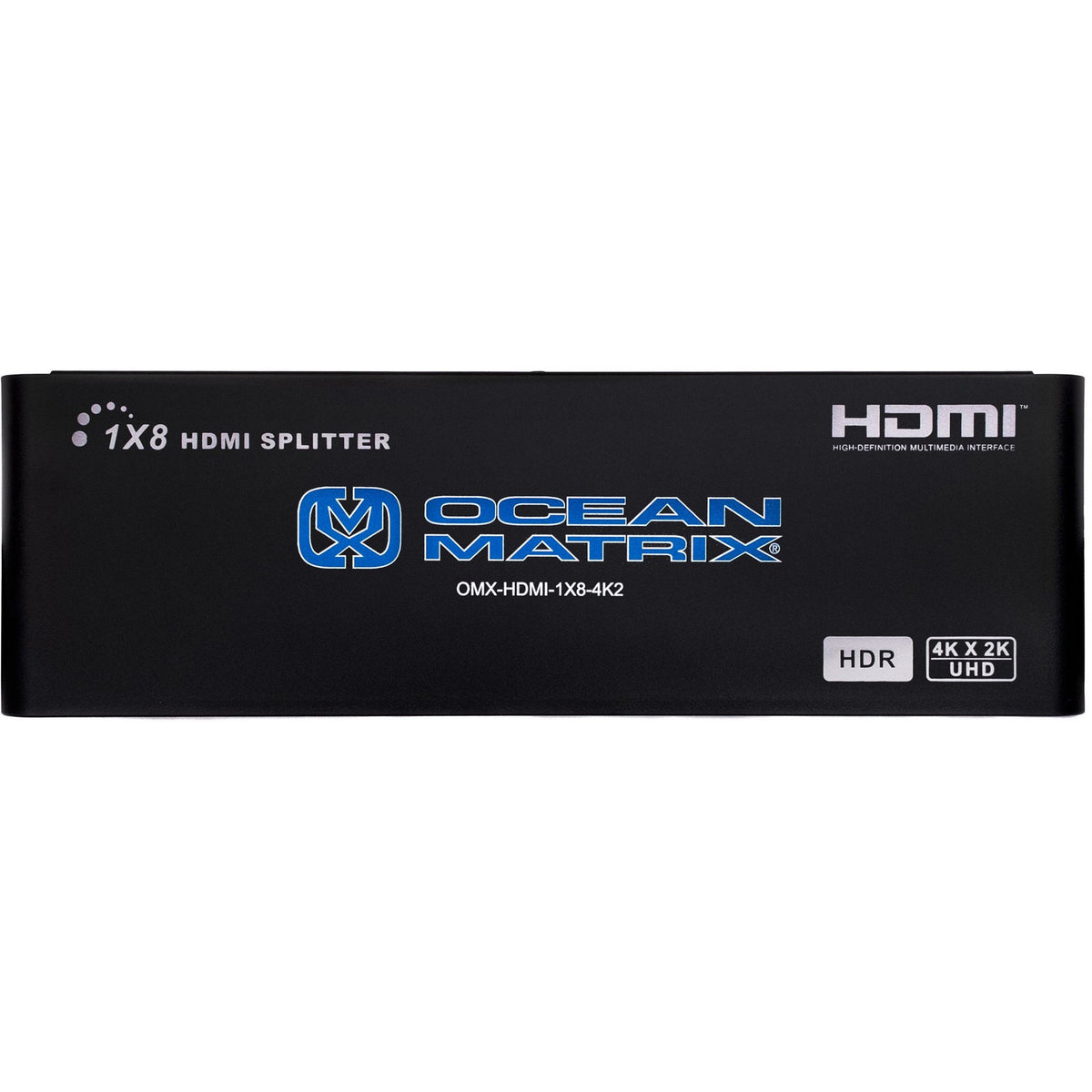

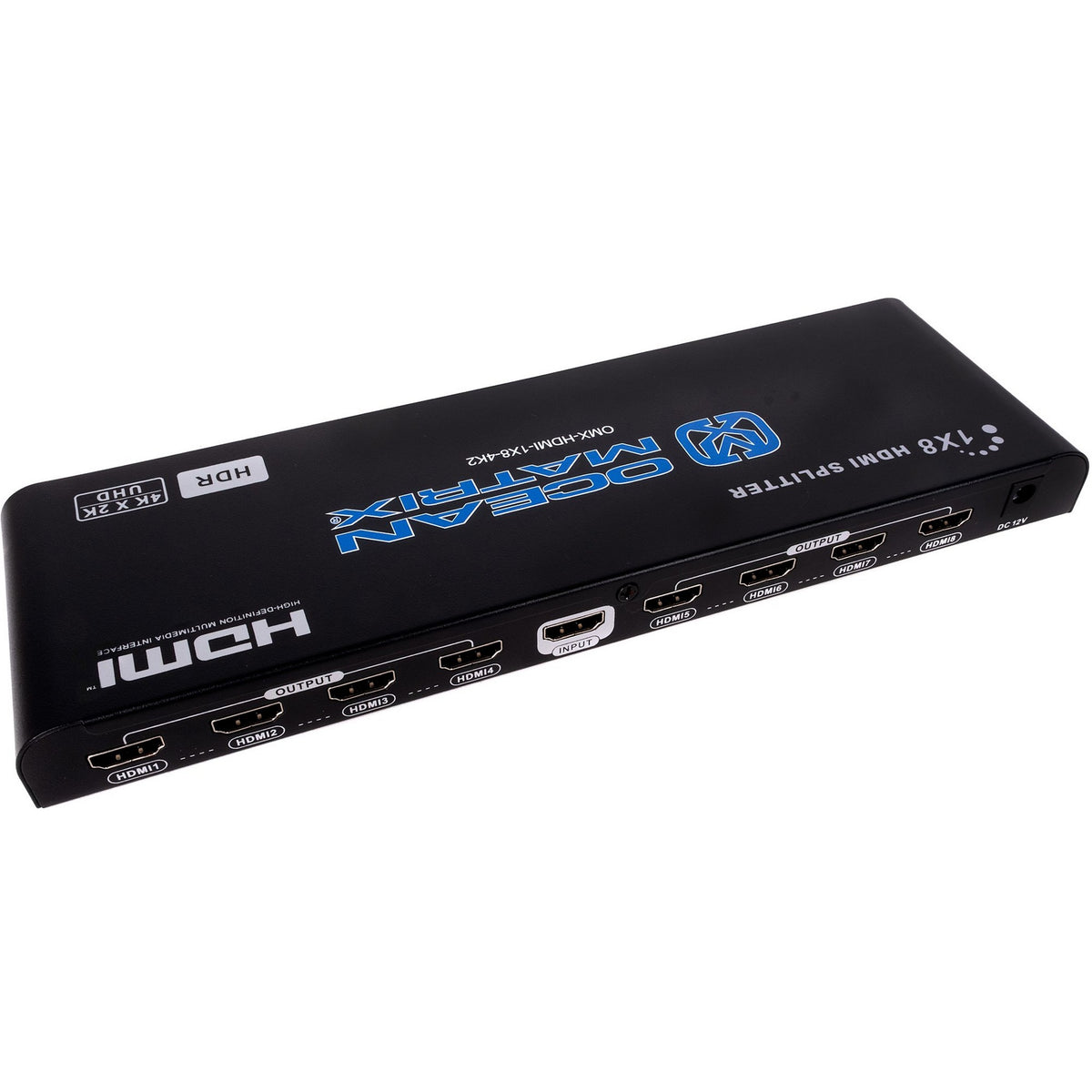

Ocean Matrix OMX-HDMI-1X8-4K2 4K60 HDMI 1x8 Distribution Amplifier

Ocean Matrix OMX-HDMI-1X8-4K2 4K60 HDMI 1x8 Distribution Amplifier

The Ocean Matrix OMX-HDMI-1X8-4K2 4K60 HDMI 1x8 Distribution Amplifier distributes one HDMI source to as many as eight synchronized displays. It supports Ultra HD signals through 4K x 2K at 60 Hz with 4:4:4 8-bit color, HDR, HDMI 2.0, HDCP 2.2, and intelligent EDID management.

This 1x8 HDMI splitter is built for digital signage, entertainment venues, restaurants, presentation systems, and other installations requiring one source across multiple displays. Its EDID system automatically coordinates compatible display resolutions, includes 16 preset EDID profiles, and supports a simultaneous mix of 4K and 1080p outputs. Plug-and-play operation helps streamline multi-display HDMI distribution.

HDMI 2.0 support is backward compatible with HDMI 1.4, while HDCP compatibility covers versions 1.4 and 2.2. The distribution amplifier also handles 3D video, 4:4:4 chroma sampling, DSD audio, and high-bit-rate audio. Eight individual signal indicators provide quick output-status monitoring, while the compact chassis operates from a 12V/1A power supply.

Key Features

• Eight HDMI Outputs: Distributes one HDMI input to as many as eight synchronized HDMI displays.
• 4K60 4:4:4 Support: Handles Ultra HD video through 4K x 2K at 60 Hz with 4:4:4 8-bit color.
• Intelligent EDID Management: Automatically coordinates output resolutions and provides 16 preset EDID profiles.
• Mixed Display Resolutions: Supports simultaneous operation with a combination of 4K and 1080p output signals.
• HDR and 3D Video: Supports HDR content and compatible HDMI 3D video formats.
• HDMI 2.0 and HDCP 2.2: Provides current-format compatibility while remaining backward compatible with HDMI 1.4 and HDCP 1.4.

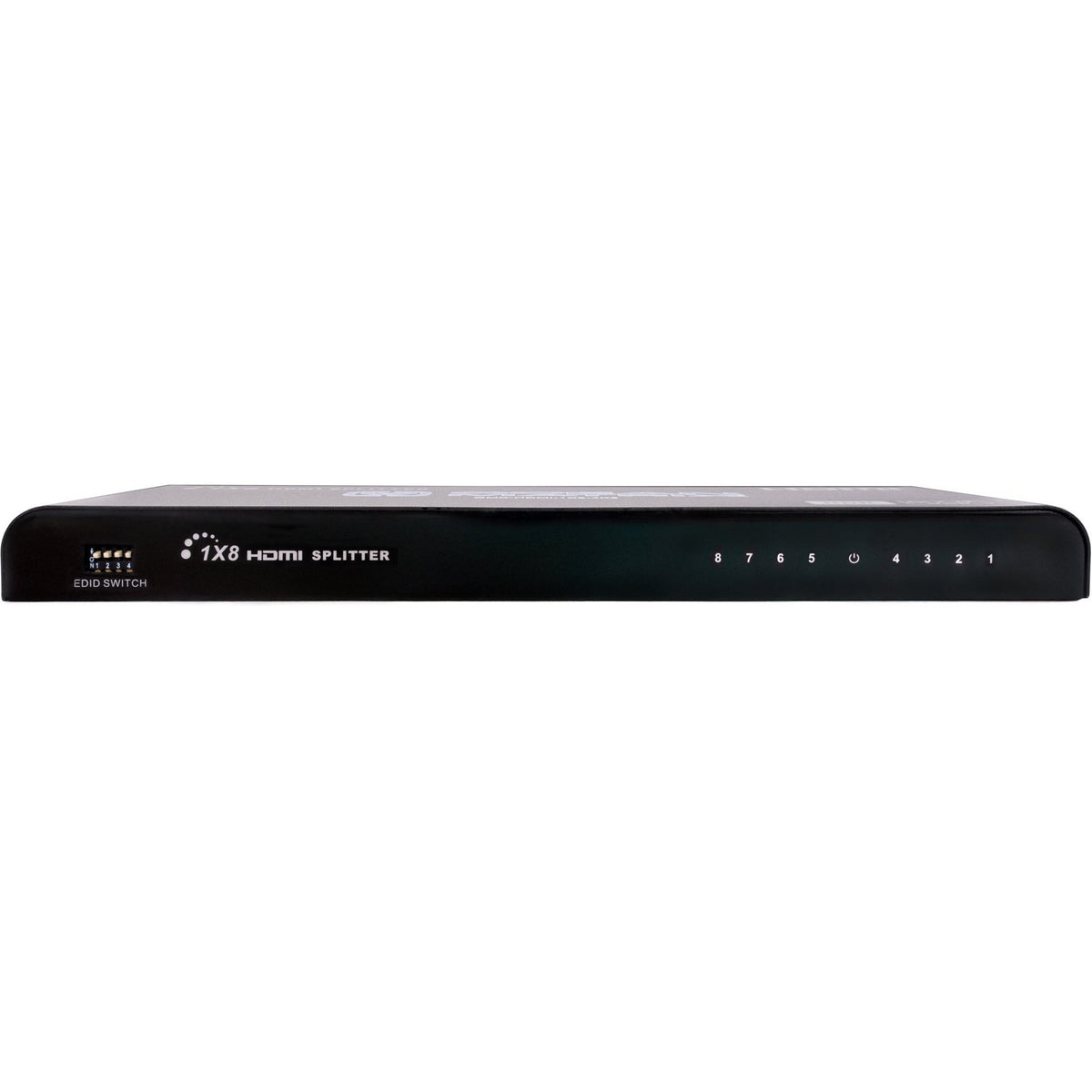

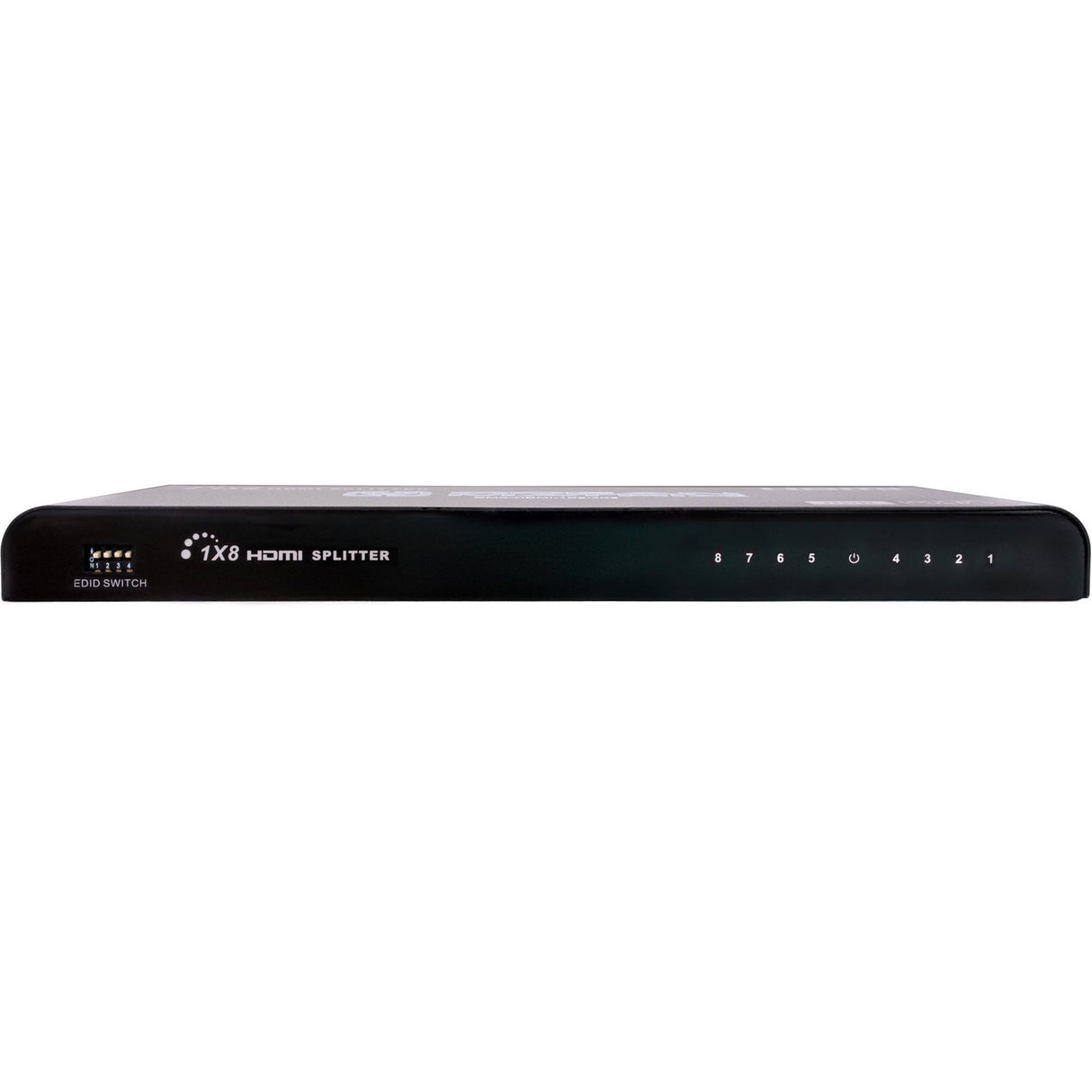

• Output Status Monitoring: Eight signal LEDs provide individual indication for the connected HDMI outputs.
• Plug-and-Play Operation: Provides straightforward single-source HDMI distribution without a complex control system.

Technical Specifications

• Part Number: OMX-HDMI-1X8-4K2
• Product Type: 1x8 HDMI splitter/distribution amplifier
• HDMI Inputs: 1

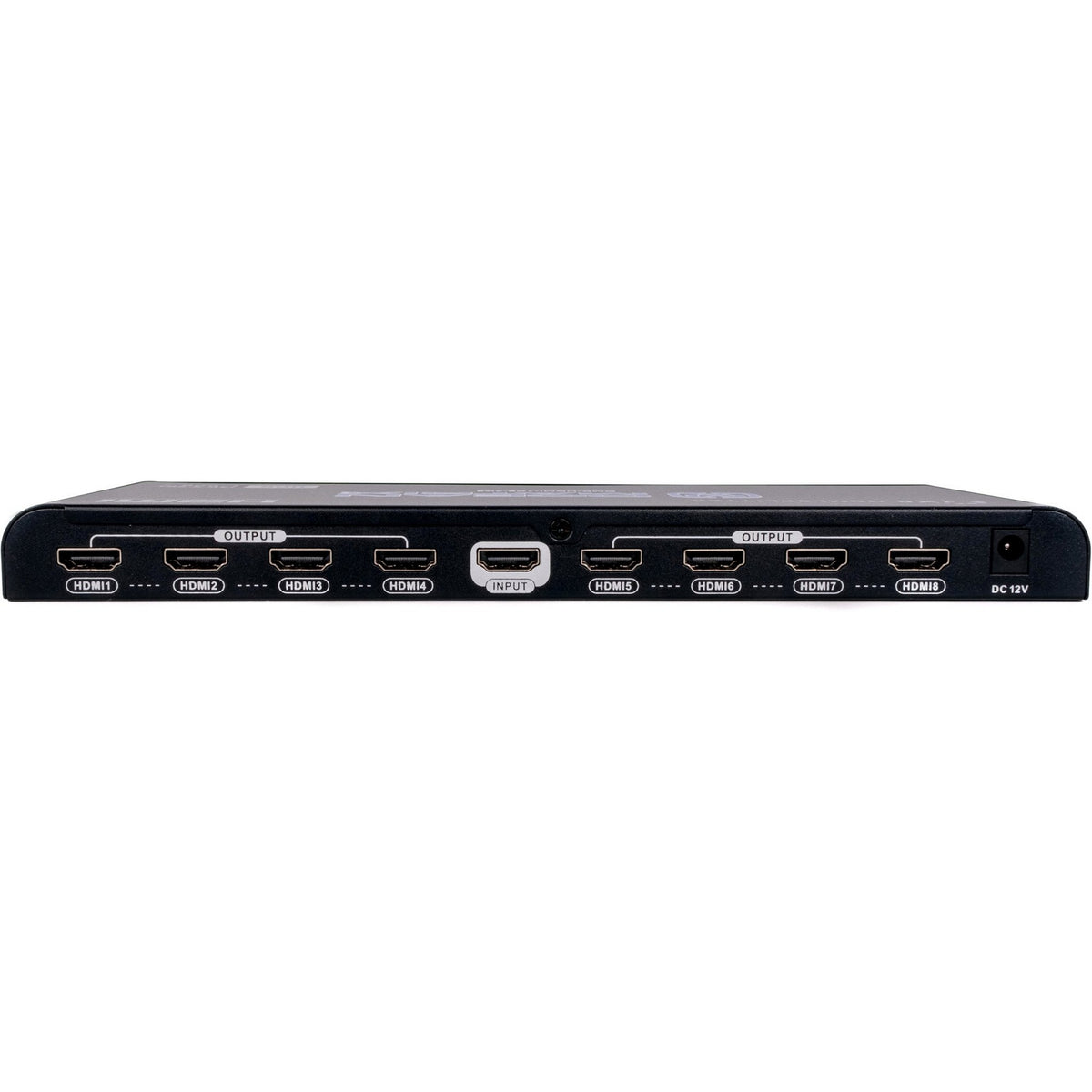

• HDMI Outputs: 8
• Power Indicator LEDs: 1
• Signal Indicator LEDs: 8
• HDMI Version: HDMI 2.0, backward compatible with HDMI 1.4
• HDCP Compatibility: HDCP 1.4 and HDCP 2.2
• Supported Resolutions: 480i, 480p, 576i, 720p, 1080i, 1080p, 4K x 2K at 24/25/30/60 Hz
• Maximum 4K Color Format: 4K x 2K at 60 Hz, 4:4:4 8bpc
• Chroma Sampling: HDMI 4:4:4 supported
• HDR: Supported
• 3D Video: Supported
• EDID Management: Built-in intelligent EDID management
• Preset EDID Profiles: 16
• Mixed Resolution Output: Simultaneous 4K and 1080p signals supported
• Frequency Range: 25 MHz to 600 MHz
• Video Formats: 3D video and 4K x 2K at 30/60 Hz, 4:4:4 8bpc Ultra HD video
• Input/Output TMDS Signal: 0.7 to 1.5 Vp-p
• Input/Output DDC Signal: 5 Vp-p TTL
• Audio Formats: Standard audio, DSD (Direct Stream Digital), HD HBR audio
• Power Supply: 12V/1A
• Power Consumption: Less than 8 W
• Working Temperature: 32 to 140 degrees Fahrenheit
• Dimensions: 10.3 x 3.2 x 0.9 inches
• Weight: 1 lb
