Ocean Matrix OMX-HDMI-CAT6X 4K 30Hz at 8-Bit HDMI Extender Set
Ocean Matrix OMX-HDMI-CAT6X 4K 30Hz at 8-Bit HDMI Extender Set
Ocean Matrix OMX-HDMI-CAT6X 4K 30Hz at 8-Bit HDMI Extender Set

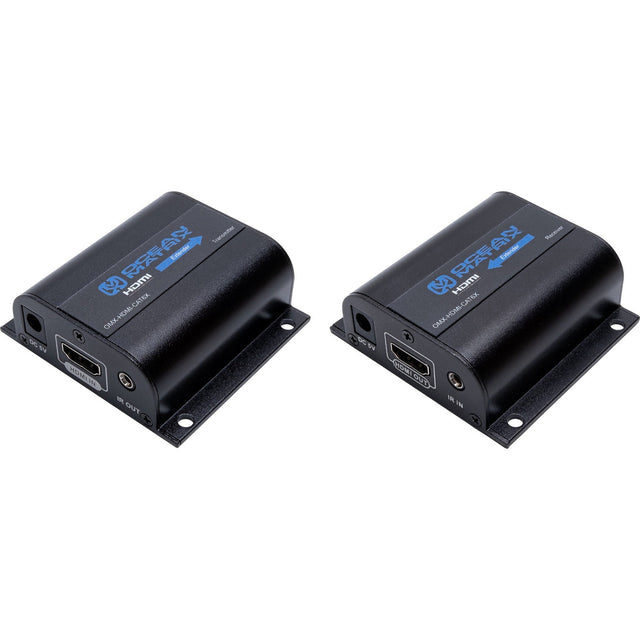

The Ocean Matrix OMX-HDMI-CAT6X extends HDMI based high-definition video/audio beyond the standard distances of HDMI cable and its inherent limitations. Consisting of a transmitter and a receiver, this system delivers 4K@30Hz HDMI signal up to 40 meters (130 feet) and 1080p@60Hz HDMI signal up to 70 meters (230 feet) over a single CAT6 network cable. The system fully supports 4K@30Hz and 1080p@60Hz resolutions as well as IR control over the same cable run.
IR signal pass-back allows for remote control of the source at a secondary location with two IR extension cables (included).
Ideal for projections screens, home theatre setups, outdoor advertising, remote conferencing, CCTV, high-end security, and remote HD monitoring.
Key Features
- Zero Latency
- Supports up to 4K@30Hz Resolution
- Supports CAT6 / 6A / 7 Network Cables
- Transmission Distance: 4K@30Hz up to 40m / 1080p@60Hz up to 70m
- IR Pass-Back Function (20 - 60KHz)
- Supports 1080p HDR10 (YUV 4:4:4)
- EDID Passthrough
- Audio Formats Supported: PCM, LPCM, DTS HD, DTS Audio
- Automatic Cable Equalization
- Lightning Protection, Surge Protection, ESD Protection
Technical Specifications
HDMI Compliance
HDCP 1.4
HDMI Resolutions
Up to 4K@30Hz 8-bit
Audio Formats
DTS, DTS-HD, PCM, LPCM
HDR Supported
IR Pass-Back
Frequency Range 20-60KHz
Operating Temperature
-20 - 60 Degrees C / -4 - 140 Degrees F
Dimensions (W)(D)(H)
71.6 x 66.6 x 24.8mm / 2.82 x 2.62 x 0.98in
Each Unit Weight
2.86 oz
Power Supply
DC5V/500mA
