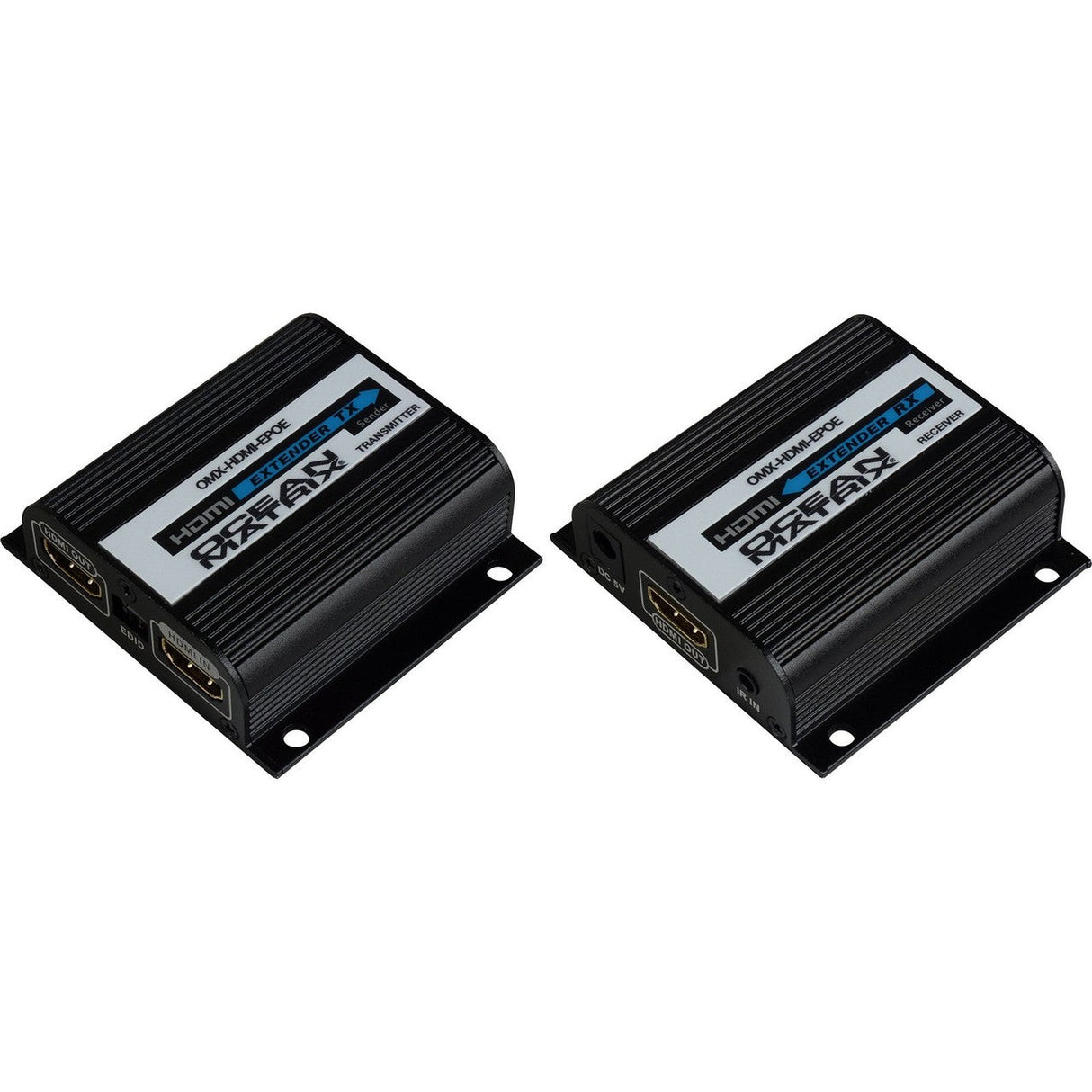

Ocean Matrix OMX-HDMI-EPOE 110 Foot 1080p HDMI Extender with EDID/POE
Ocean Matrix OMX-HDMI-EPOE 110 Foot 1080p HDMI Extender with EDID/POE
Ocean Matrix OMX-HDMI-EPOE 110 Foot 1080p HDMI Extender with EDID/POE
The Ocean Matrix OMX-HDMI-EPOE is a full 1080p HDMI extender featuring full EDID management and power over Ethernet (POE) for driving displays up to 100 feet with zero latency. The system's POE transmitter adds the convenient ability to send both AV signals and power to the receiver to the display end on a single cable.
Key Features
- Full HD resolution 1080p@60Hz up to 110 feet/34 meter
- Compatible with Cat6/6A/7 Cables
- HMDI Loop Outs
- Uncompressed and Zero Latency
- EDID Management
- PoE Transmitter to Receiver
- IR Signal Control
Technical Specifications
Transmission Distance
up to 110 feet/34 meter
IR Remote Control
Support 20~60kHz wide frequency
HDMI Signal
HDMI1.4a / HDCP: HDCP1.2a
Supported Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 3D:1080p@60Hz
Audio Format
PCM, AC3, DTS
Power Consumption
Each Unit 3W
Dimensions LxWxH
2.82x2.63x0.89 in / 71.6x66.9x22.6 mm each unit
Weight
Each Unit 2.5 oz/70g
