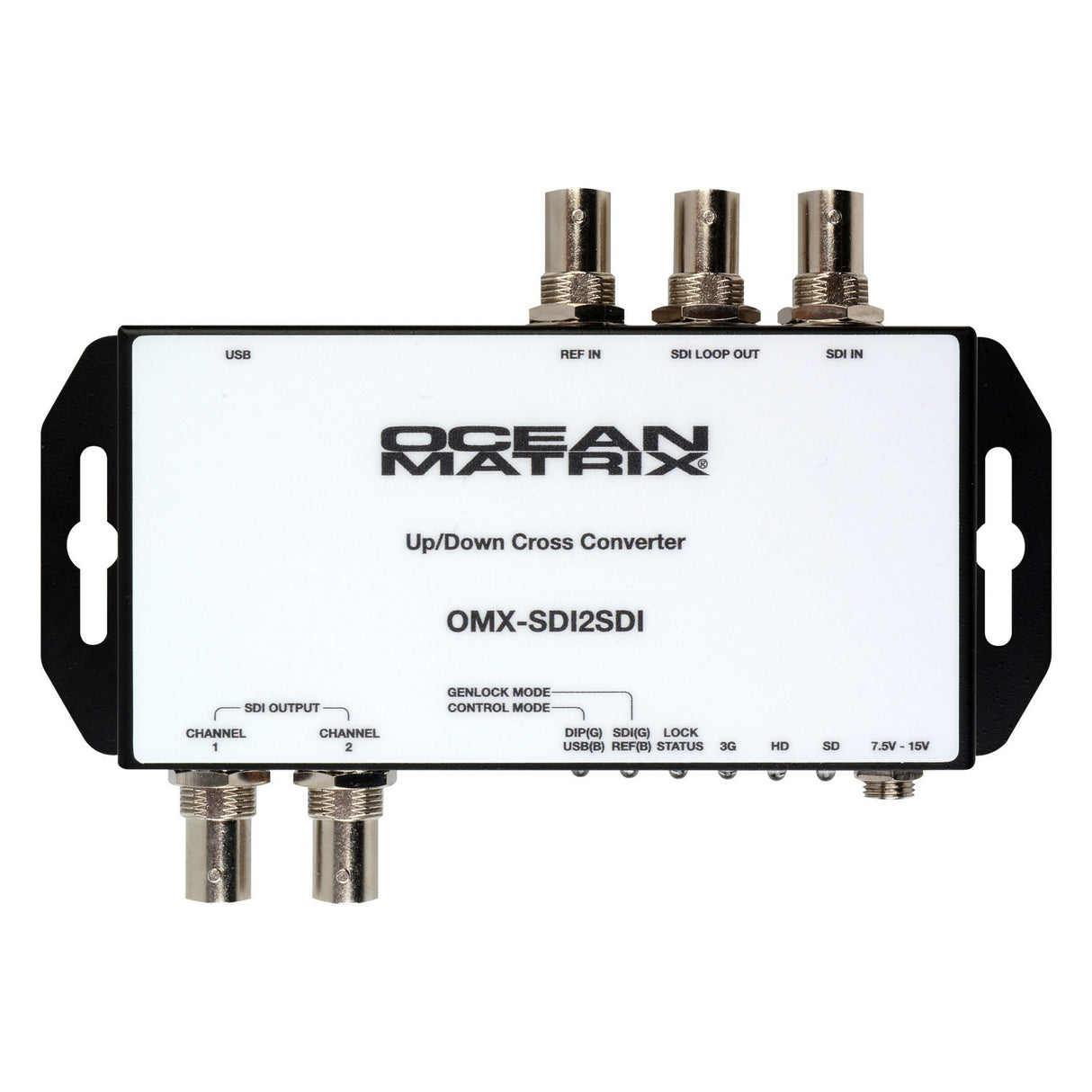

Ocean Matrix OMX-SDI2SDI SDI to SDI Reclocking Up Down Scaling Converter
Deliver a video signal that's always device compatible with the Ocean Matrix SDI2SDI multiformat SDI Up/Down/Cross converter. The OMX-SDI2SDI provides simple conversion between multiple SD & HD formats. For example, convert 720p to 1080i, 1080i to 1080p or 720p to 1080p. The unit features a full scaling & standards conversion engine and even includes a Genlock input for easy device synchronization. The OMX-SDI2SDI has a reclocked and amplified SDI output for sending signals over long distance coax including 3G-SDI up to 100 meters over RG6. Multi-channel audio is also supported with an automatic delay to sync with any video processing delays. In addition, the unit has a test pattern generator to assist in camera setups and troubleshooting. Built-in automatic input detection circuitry seamlessly recognizes the input format and adjusts accordingly.
Key Features
- Built-In Up/Down Conversion
- Adjust Aspect Ratio from Full to 16:9 to 4:3 or Pixel to Pixel
- Auto 3G/HD/SD/SDI Detection
- External Dipswitch for Video Mode and Device Configurations
- Reference Input for Genlock
- SDI Reclock up to 3G-SDI
- Test Pattern Generator
- Universal Mounting Flanges
Technical Specifications
SDI Supports HD formats
720p50 & 60, 1080i50 & 60, 1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
SDI support RGB/YUV 4:4:4 Sampled
Audio Formats
up to 8 Channels, 24bit, 48KHz
Frame Rate Conversion (1.000/1.001)
Input
1- SDI (BNC), 1-Ref (BNC)
Output
2-SDI (BNC), 1-Pass Through (BNC)
Voltage Input
7.5-15VDC
Dimensions (LxWxH)
6.15x2.5x1in/ 156x63.5x25.4mm
Weight
1 lb / 0.45 kg
