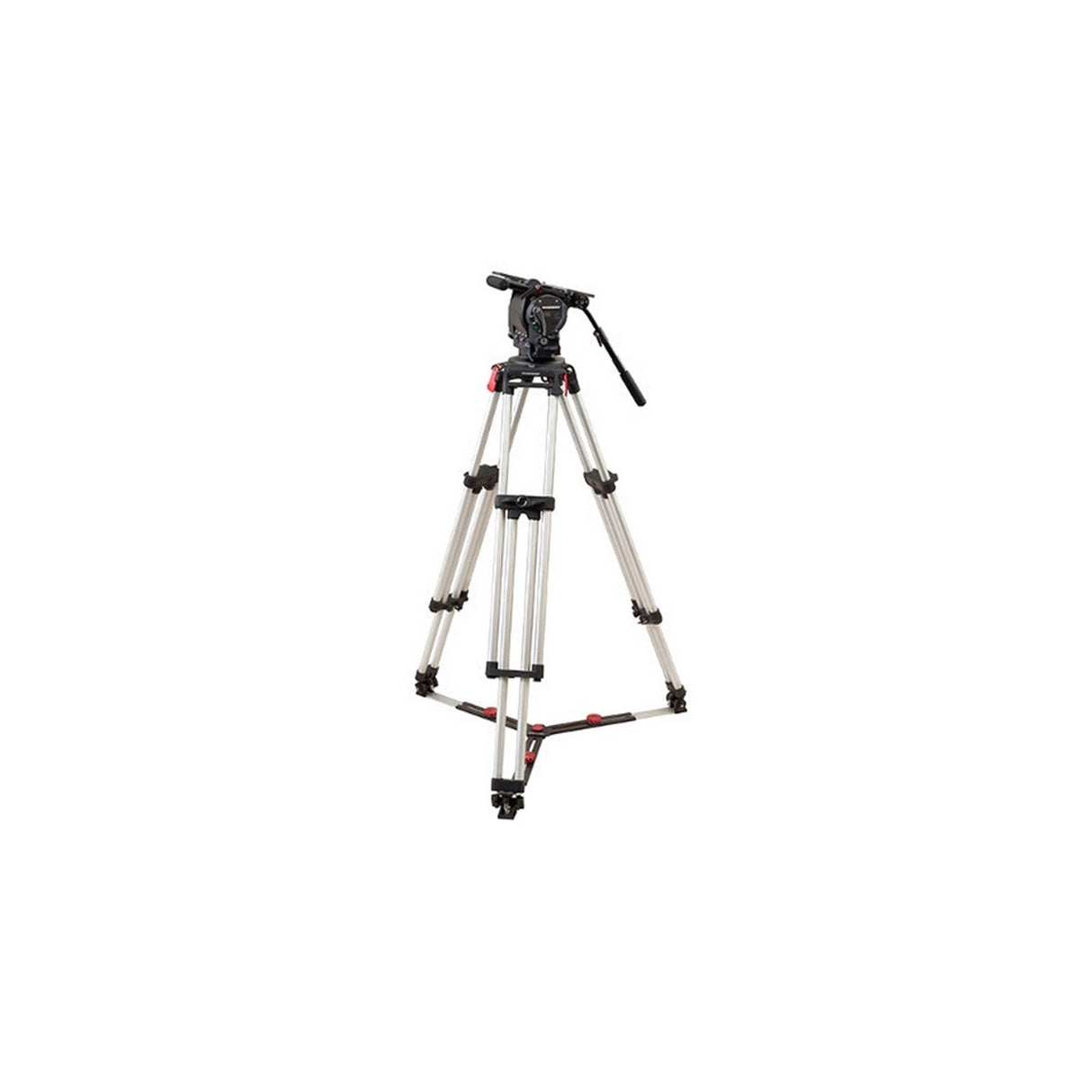

OConnor 2575D Head and Cine 150mm Bowl Tripod with Floor Spreader

With its famous features the 2575 fluid head has become the standard for film production. The head includes OConnor’s patented sinusoidal counterbalance system for true, accurate balance at any point in the tilt range. Add to this OConnor’s stepless, ultra-smooth pan & tilt fluid drag, and you’ve got ultimate control and stability for film style shooting.

As the next generation head of the highly successful 2575 series, the 2575D retains a large number of features and functions from the older heads but includes many new features:

• Platform controls on the operator’s side of the head
• Platform release lever with a one touch finger actuated safety release catch – allowing for one “finger” or hand action to undo the safety catch and open the lever
• Dual platform scales
• Platform with 4 handle rosettes
• Soft hand rest on left hand side

System includes:
2575D Fluid head Package (C1234-0005)
Cine 150mm Bowl Tripod (C1221-0003)
Spreader (C1222-0015)

Technical Specifications

Cine 150mm Bowl Tripod
Material
Aluminum
Capacity
309 lbs. (140 kg)
Weight
29.3 lbs. (13.3 kg) (with Spreader)
Maximum Height
69.2 in. (175.8 cm)
Minimum Height
33.6 in. (85.3 cm)
Top Casting
Mitchell or 150 mm
Collapsed Length
240.4 in. (103 cm)
Collapsed Width
11.1 in. (28.2 cm)

2575D Head
Capacity @ 4 in. (102 mm), @ 6 in. (152 mm), @ 8 in. (203 mm)
133 lbs. (60.5 kg), 105 lbs. (47.7 kg), 87 lbs. (39.5 kg)
Handle(s)
30°
Bases
Mitchell, 150mm
Tilt
+90° / -90°
Height
8.4 in. (21.3 cm)
Width
12.4 in. (31.5 cm)
Depth
8.6 in. (21.8 cm)
Weight
22.9 lb. (10.4 kg)
