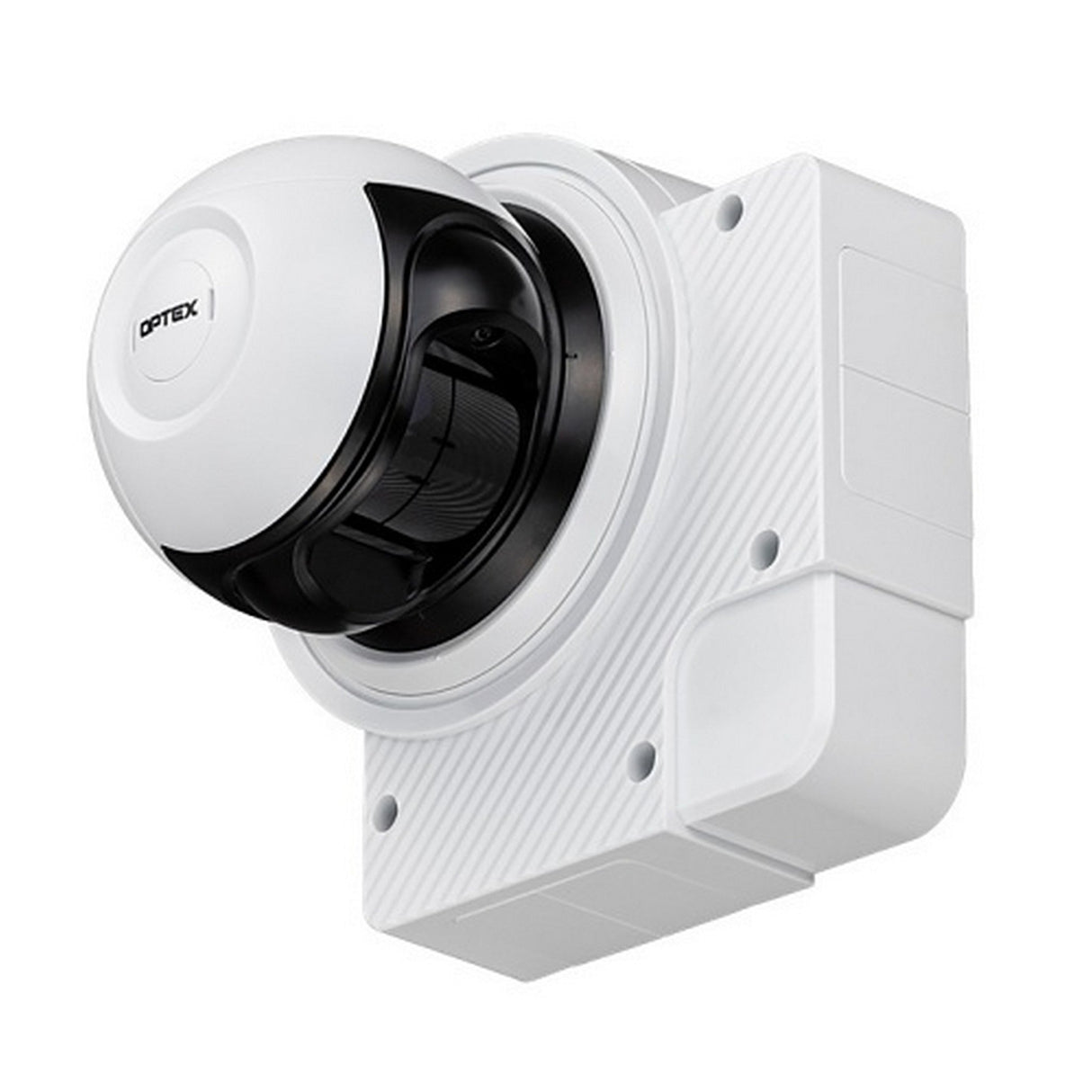

Optex RLS-2020A REDSCAN Mini-Pro Series Advanced LiDAR Sensor, 65 x 65-Foot
The OPTEX REDSCAN Mini-Pro Advanced LiDAR Sensor Series is engineered to provide exceptional accuracy, reliability, and flexibility in high-security applications, whether indoor or outdoor. Featuring two models, the RLS-2020A and RLS-2020V, the REDSCAN Mini-Pro sets a new standard in intrusion detection. By utilizing cutting-edge time-of-flight technology, it precisely tracks moving or stationary objects, detecting threats with pinpoint accuracy down to their X and Y coordinates. This proactive detection approach allows security teams to respond swiftly and effectively to potential threats.
Designed to perform in challenging environments, including complete darkness and complex surroundings, the REDSCAN Mini-Pro Series excels with its rapid 100-millisecond response time and an angular resolution of 0.125 degrees. The customizable detection area allows flexible installation options with a 65x65ft high-resolution range. Whether you need horizontal, vertical, or angled detection, the REDSCAN Mini-Pro adapts seamlessly, providing up to 100ft of detection range and 8 independent customizable zones. Its durability is unmatched, operating in temperatures from -40Ā°F to 140Ā°F, making it ideal for the most demanding security needs.
Key Features
- Intelligent Analytics: Advanced detection and tracking of objects with real-time analysis.
- Customizable Detection Areas: Tailor the detection zones to fit your specific security requirements.
- Environmental Resistance: Operates effectively in extreme temperatures from -40Ā°F to 140Ā°F.
- Dynamic Event Filtering: Logic-based filtering to prioritize critical security events.
Technical Specifications
Power Supply: 24V DCDetection Range: Up to 100ft (30m)
Detection Area: Horizontal/Vertical 65x65ft (20m x 20m), adjustable range
Resolution: 0.125Ā° angular resolution
Response Time: 100 milliseconds
Operating Temperature: -40Ā°F to 140Ā°F (-40Ā°C to 60Ā°C)
Detection Zones: Up to 8 independent zones with customizable parameters
Detection Technology: LiDAR with time-of-flight precision
Environmental Resistance: Weather-resistant for both indoor and outdoor use
