Opticis DPAX DisplayPort 1.2 Data Recovery Repeater

Opticis | SKU: OPTS-DPAX
$24453

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

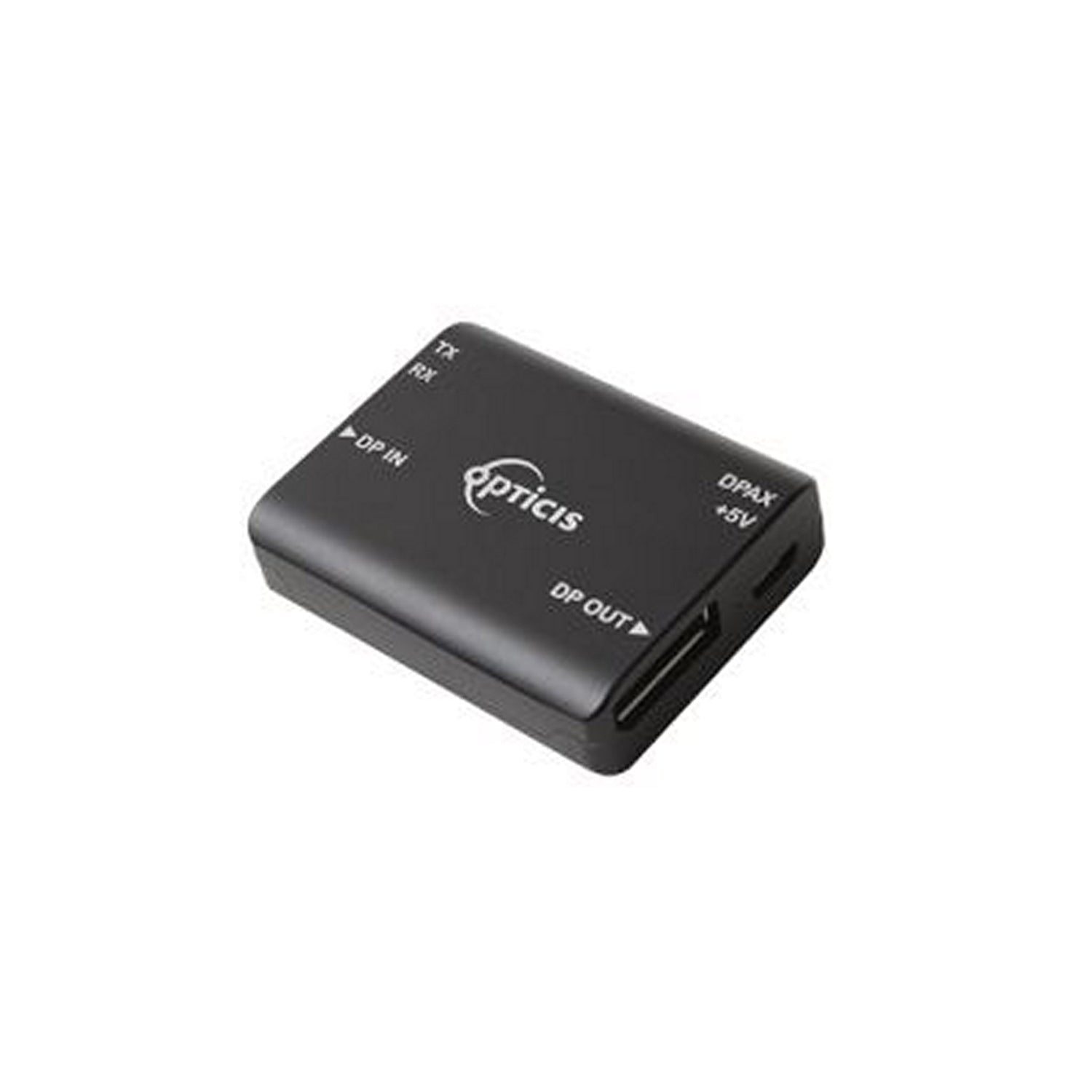

Opticis DPAX DisplayPort 1.2 Data Recovery Repeater

Extend your DisplayPort signals farther than ever with the Opticis DPAX. This compact repeater actively recovers and boosts DisplayPort 1.2 video up to a combined 8 meters, ensuring rock-solid transmission for 4K UHD (4096×2160 @60 Hz) and multi-stream transport applications. Perfect for conference rooms, digital signage, broadcast, and simulation setups, DPAX delivers pristine image quality without compression or artifacts.

Installation is effortless: simply insert DPAX between your source and display cabling, and power it via USB or an optional DC adapter. The repeater supports MST, auxiliary channels, and seamless daisy-chaining to extend your range even further. A robust metal enclosure provides EMI/RFI shielding, while front-panel LEDs show power and link status in real time.

Key Features

  • Data Recovery Function: Actively regenerates DP 1.2 signals for glitch-free output
  • 4K UHD Support: Uncompressed video up to 4096×2160 @60 Hz with MST and auxiliary channel
  • Combined Reach: Up to 8 m (26 ft) total: 3 m from source + 5 m to display at DP 1.2
  • Backward Compatibility: Extends DP 1.1 up to 15 m (5 m from source + 10 m to display)
  • High Bandwidth: 5.4 Gbps per lane, 21.6 Gbps total throughput
  • MST & AUX Channel: Supports multi-stream transport and embedded data
  • Daisy-Chainable: Stack multiple units to further increase transmission distance
  • Flexible Power: USB bus-powered or via optional 5 V DC adapter
  • Rugged Design: Metal housing for EMI/RFI shielding and heat dissipation

Technical Specifications

  • Standard Compliance: DisplayPort 1.2
  • Signal Format: ANSI 8b/10b encoding
  • Video Bandwidth: 5.4 Gbps per lane; 21.6 Gbps total
  • Maximum Extension (DP 1.2): Up to 8 m (3 m + 5 m)
  • Maximum Extension (DP 1.1): Up to 15 m (5 m + 10 m)
  • Connectors: 20-pin DP receptacle
  • Power Input: USB 5 V ⎓ 0.5 A (bus-powered) or 5 V ⎓ 1 A DC adapter
  • Enclosure Dimensions: 39.5 × 50 × 13 mm
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Humidity: 10 %–85 % RH, non-condensing

What’s Included

  • 1 × DPAX repeater module
  • 1 × USB power cable
  • 1 × User manual
  • Optional: 5 V DC, 1 A adapter (sold separately)
