Opticis DPFX-250-TR Real 4K DisplayPort 1.2 Extender

Opticis | SKU: OPTS-DPFX250TR
$2,45583

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

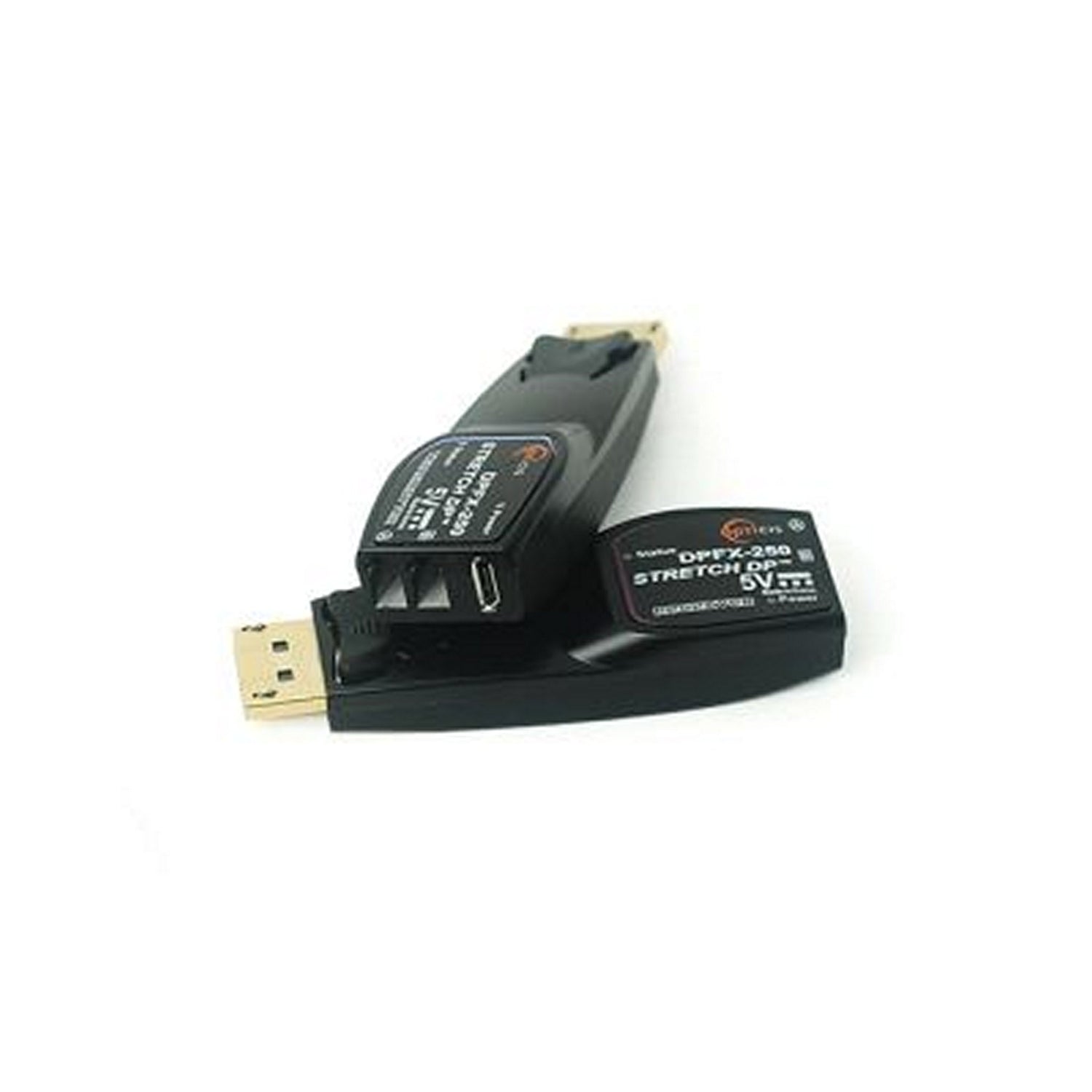

Opticis DPFX-250-TR Real 4K DisplayPort 1.2 Extender

Push the boundaries of your AV installations with true 4K video over fiber. The DPFX-250-TR transmits uncompressed 4096×2160 @ 60 Hz over two LC multimode fibers up to 200 m, ensuring flawless image quality without scaling or compression. Integrated USB-powered modules eliminate bulky adapters and simplify deployment in control rooms, simulation suites, and medical imaging environments.

Engineered for plug-and-play reliability, the compact die-cast aluminum modules provide robust EMI/RFI shielding and heat dissipation. Patent-pending Self-EDID programming captures and restores display EDID on first use, while auto-power switching draws 3.3 V from the DisplayPort interface or via included USB-to-DC cables. Intuitive LEDs indicate power and signal status at a glance.

Key Features

  • True 4K @ 60 Hz: Uncompressed 4096×2160 video over fiber
  • Dual-Fiber Design: Two LC multimode fibers for error-free transmission up to 200 m
  • DisplayPort 1.2 & DP++: Supports dual-mode DP for broad device compatibility
  • High Bandwidth: 21.6 Gbps total throughput (5.4 Gbps per lane)
  • Multi-Stream Transport: Extend multiple displays over a single fiber pair
  • Auxiliary Channel: I²C channel over fiber for remote configuration
  • Auto-EDID Management: Captures and restores display EDID for seamless setup
  • USB-Powered: Modules can draw power directly from USB without external adapters
  • Rugged Housing: Die-cast aluminum for EMI/RFI shielding

Technical Specifications

  • Resolution Support: Up to 4096×2160 @ 60 Hz
  • Maximum Distance: 200 m (656 ft) over two 50/125 µm multimode fibers
  • Data Rate: 5.4 Gbps per lane, 21.6 Gbps total
  • Fiber Interface: Duplex LC connectors (2-fiber)
  • Power Options: 3.3 V from DisplayPort or USB-to-DC cable; includes two USB power cables and two 5 V ⎓ 1 A adapters
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Humidity: 10%–85% RH, non-condensing
  • Certifications: FCC, CE (EMI/RFI emission); Class 1 laser safety
  • Module Dimensions: 2.83 × 1.02 × 0.59 in (72 × 26 × 15 mm)
  • Module Weight: 0.65 lbs (approx. each)¹

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 1× 0.2 m male-to-female DisplayPort copper cable
  • 2× Micro-USB to USB power cables
  • 2× 5 V ⎓ 1 A DC power adapters
  • 1× User manual
