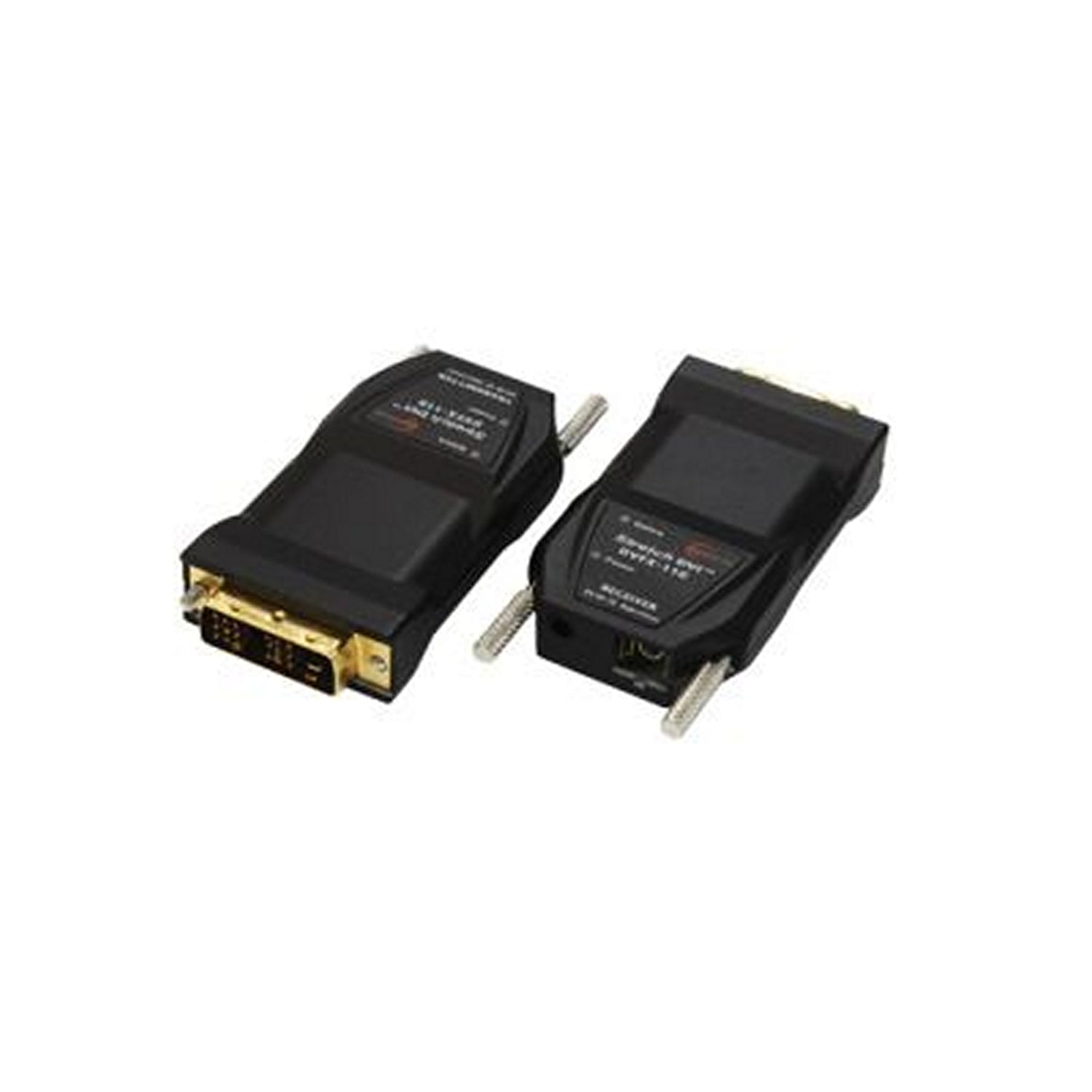

Opticis DVFX-110-TR One Fiber (SM) Detachable DVI Extender Module

Opticis | SKU: OPTS-DVFX110TR
$1,47420

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

Opticis DVFX-110-TR One Fiber (SM) Detachable DVI Extender Module

Extend pristine, uncompressed DVI video up to WUXGA (1920×1200) @60 Hz over a single single-mode fiber up to 1,500 m (4,920 ft), or over multimode fiber up to 500 m (1,640 ft). The DVFX-110-TR combines a compact transmitter and receiver with robust die-cast aluminum housings for reliable EMI/RFI shielding, ideal for medical imaging, digital signage, control rooms, and simulation environments.

Installation is seamless: plug-and-play modules feature patent-pending Self-EDID programming to automatically capture and restore display EDID, while auto-power switching draws +5 V DC from your video card or included adapter. Intuitive LED indicators give real-time feedback on power and signal status, and hot-swappable modules ensure zero downtime during maintenance or reconfiguration.

Key Features

  • Single-Fiber Transmission: Up to 1,500 m (4,920 ft) over single-mode fiber; 500 m (1,640 ft) over multimode fiber
  • High-Resolution Support: Uncompressed DVI up to WUXGA (1920×1200) @60 Hz
  • Self-EDID Management: Auto-capture and restoration of display EDID for plug-and-play setup
  • Auto-Power Switching: +5 V DC draw from video card or external adapter
  • Compact & Durable: Die-cast aluminum enclosure with EMI/RFI shielding
  • LED Indicators: Power, transmission (Tx), and detection (Rx) status
  • Optical Splitting: Supports up to 16 outputs with OPS-116S passive splitter

Technical Specifications

  • Physical Dimensions: 2.68" × 1.54" × 0.57" (68 × 39 × 14.6 mm)
  • Data Rate: Up to 1.65 Gbps per graphic channel
  • Fiber Interface: Simplex SC connectors; supports 9 µm single-mode or 50/125 µm multimode
  • Max. Extender Range: 1,500 m single-mode; 500 m multimode
  • Input Power: +5 V DC, 1 A (transmitter); +5 V DC, 2 A (receiver)
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Certifications: CE, FCC, IEC 60601-1-2, Class 1 Laser Eye Safety, RoHS 3
  • Humidity: 10% to 85% RH, non-condensing

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 2× +5 V DC power adapters
  • 1× User manual
Opticis

Opticis DVFX-110-TR One Fiber (SM) Detachable DVI Extender Module

$1,47420

Free Shipping

Opticis DVFX-110-TR One Fiber (SM) Detachable DVI Extender Module

Extend pristine, uncompressed DVI video up to WUXGA (1920×1200) @60 Hz over a single single-mode fiber up to 1,500 m (4,920 ft), or over multimode fiber up to 500 m (1,640 ft). The DVFX-110-TR combines a compact transmitter and receiver with robust die-cast aluminum housings for reliable EMI/RFI shielding, ideal for medical imaging, digital signage, control rooms, and simulation environments.

Installation is seamless: plug-and-play modules feature patent-pending Self-EDID programming to automatically capture and restore display EDID, while auto-power switching draws +5 V DC from your video card or included adapter. Intuitive LED indicators give real-time feedback on power and signal status, and hot-swappable modules ensure zero downtime during maintenance or reconfiguration.

Key Features

  • Single-Fiber Transmission: Up to 1,500 m (4,920 ft) over single-mode fiber; 500 m (1,640 ft) over multimode fiber
  • High-Resolution Support: Uncompressed DVI up to WUXGA (1920×1200) @60 Hz
  • Self-EDID Management: Auto-capture and restoration of display EDID for plug-and-play setup
  • Auto-Power Switching: +5 V DC draw from video card or external adapter
  • Compact & Durable: Die-cast aluminum enclosure with EMI/RFI shielding
  • LED Indicators: Power, transmission (Tx), and detection (Rx) status
  • Optical Splitting: Supports up to 16 outputs with OPS-116S passive splitter

Technical Specifications

  • Physical Dimensions: 2.68" × 1.54" × 0.57" (68 × 39 × 14.6 mm)
  • Data Rate: Up to 1.65 Gbps per graphic channel
  • Fiber Interface: Simplex SC connectors; supports 9 µm single-mode or 50/125 µm multimode
  • Max. Extender Range: 1,500 m single-mode; 500 m multimode
  • Input Power: +5 V DC, 1 A (transmitter); +5 V DC, 2 A (receiver)
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: –30 °C to 70 °C
  • Certifications: CE, FCC, IEC 60601-1-2, Class 1 Laser Eye Safety, RoHS 3
  • Humidity: 10% to 85% RH, non-condensing

What’s Included

  • 1× Transmitter module (Tx)
  • 1× Receiver module (Rx)
  • 2× +5 V DC power adapters
  • 1× User manual
