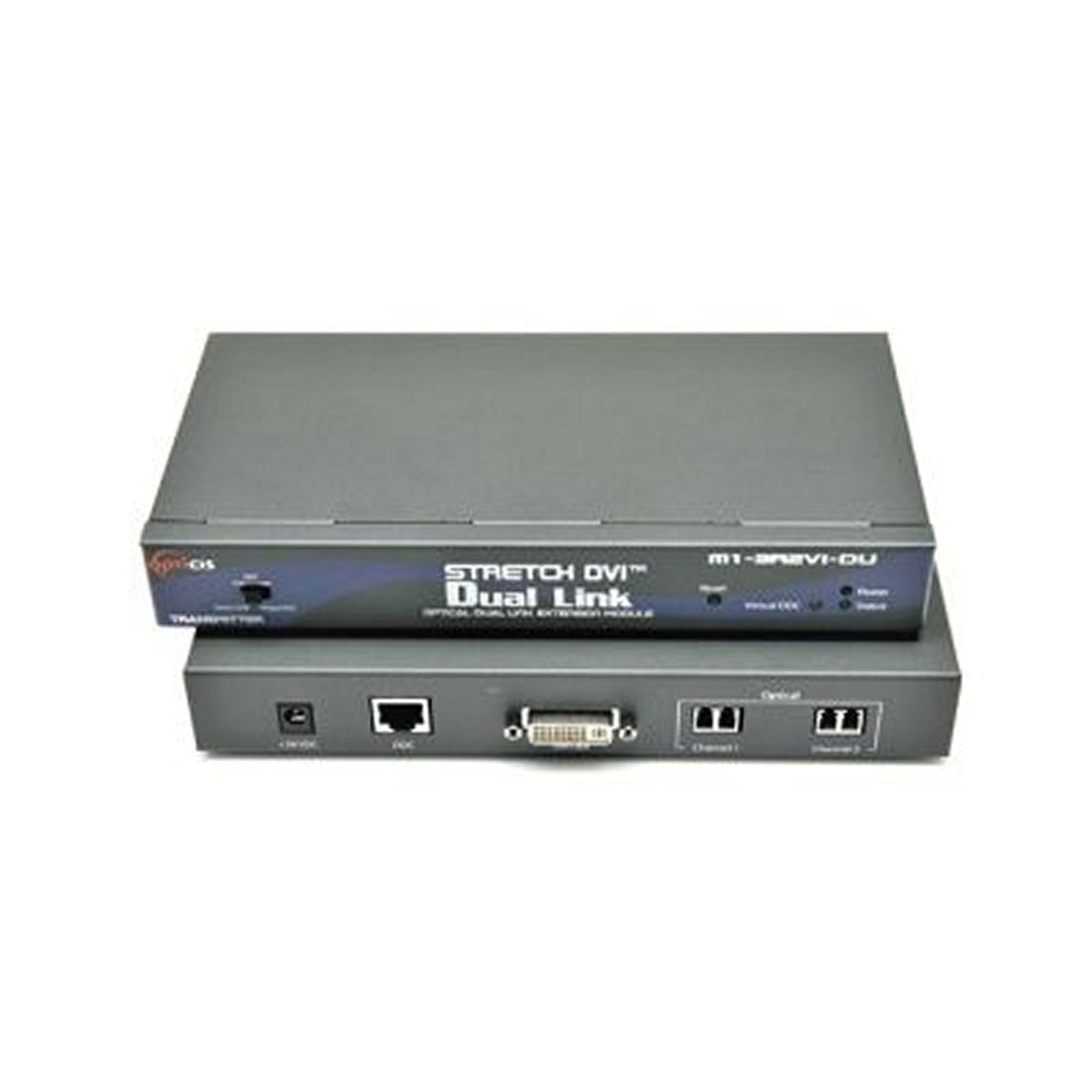

Opticis M1-3R2VI-DU Stretch DVI Dual Link Extension Module

Opticis | SKU: OPTS-M13R2VIDUTR
$1,93050

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

Opticis M1-3R2VI-DU Stretch DVI Dual Link Extension Module

Bring your high-resolution displays to life over extraordinary distances with the Opticis Stretch DVI Dual Link Extension Module. Engineered for WQXGA (2560×1600) at 60 Hz or ultra-wide resolutions up to 3840×2400 at 33 Hz, this detachable transmitter-receiver pair delivers pristine, uncompressed video up to 2 km (6,560 ft) over single-mode fiber or 100 m (328 ft) with full EDID handshake via CAT5e. Ideal for control rooms, medical imaging suites, large-venue digital signage, and simulation environments.

Installation couldn’t be simpler: hot-swappable modules automatically capture and restore display EDID on first connection, while auto-power switching pulls +24 V from the external adapter and powers both units via a single CAT5e link. Rugged die-cast aluminum enclosures provide superior EMI/RFI shielding and heat dissipation, and intuitive LED indicators keep you informed of power and signal status at a glance.

Key Features

  • Ultimate Resolution: Supports dual-link DVI up to 2560×1600 @ 60 Hz or 3840×2400 @ 33 Hz
  • Long-Reach Extension: Up to 100 m (328 ft) with DDC2B; up to 2 km (6,560 ft) with virtual DDC
  • Self-EDID Programming: Automatic EDID capture and restoration for true plug-and-play
  • Single-Adapter Power: +24 V external supply powers both Tx and Rx over one CAT5e cable
  • Rugged Construction: Die-cast aluminum housings for EMI/RFI shielding and durability
  • LED Status Indicators: Real-time feedback on power, transmission, and link integrity
  • Lightweight Detachable Cables: Secure LC fiber and DVI-D copper connections

Technical Specifications

  • Resolution Support: Dual-link DVI up to 2560×1600 @ 60 Hz; WQUXGA up to 3840×2400 @ 33 Hz
  • Extension Distance: 100 m (328 ft) with DDC2B; 2 km (6,560 ft) with virtual DDC
  • Fiber Interface: Four LC or two duplex LC connectors (single-mode or multimode)
  • Power Input: +24 V DC via external adapter (supplies both modules over CAT5e)
  • Supply Current: Tx: 180–270 mA; Rx: 270–380 mA
  • Power Dissipation: Tx: 3.8–7.2 W; Rx: 5.8–10.0 W
  • Operating Temperature: 0 °C to +50 °C
  • Storage Temperature: –30 °C to +70 °C
  • Operating Humidity: 10% to 85% RH, non-condensing
  • Certifications: FCC, CE, Class 1 Laser Eye Safety

What’s Included

  • 1× Dual-link DVI Transmitter Module (Tx)
  • 1× Dual-link DVI Receiver Module (Rx)
  • 2× Dual-link DVI-D Copper Cables (1.8 m)
  • 1× +24 V DC Power Adapter (AC 85–264 V, 50/60 Hz)
  • 1× AC Power Cord (US or EU type)
  • 1× User Manual
