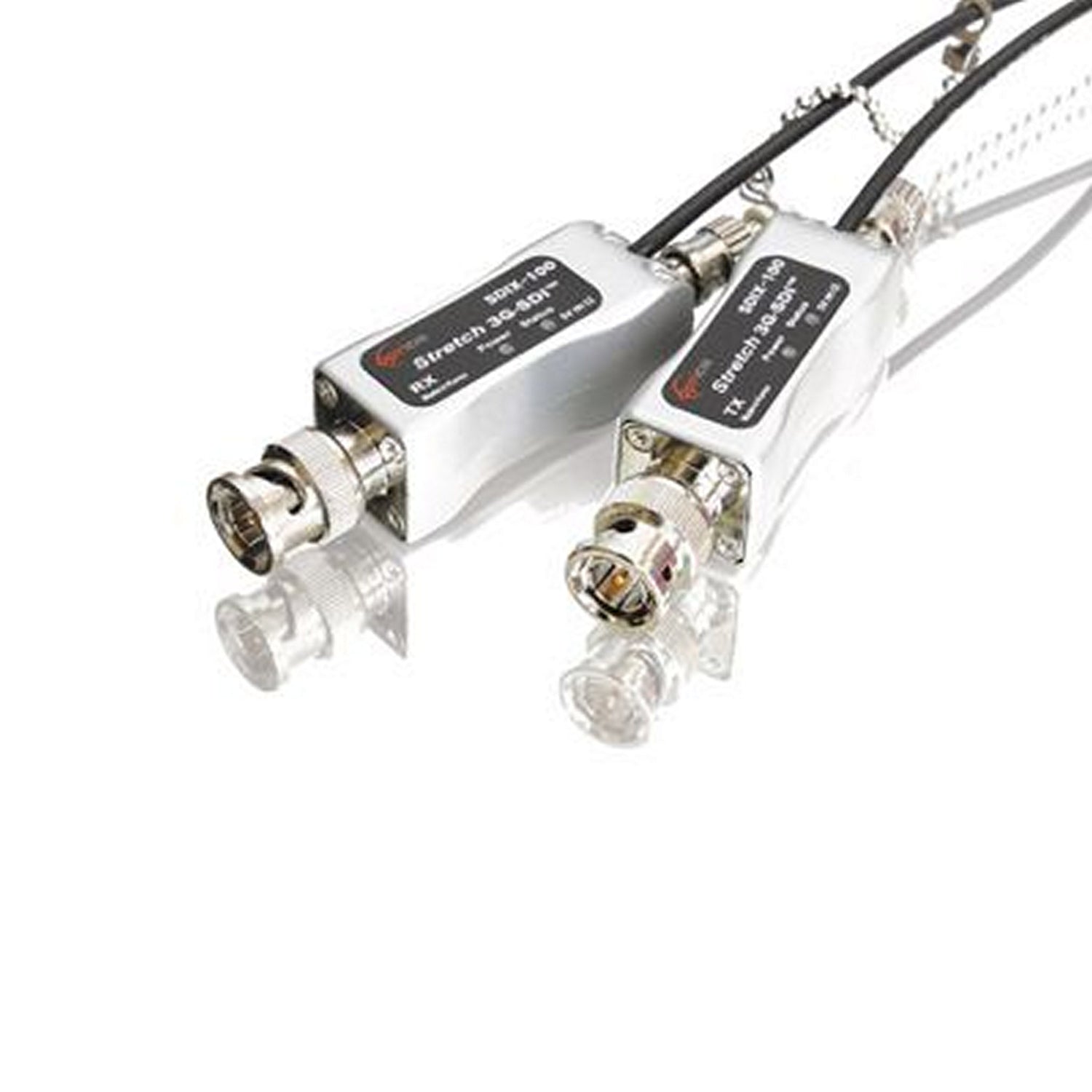

Opticis SDIX-100-TR Miniature Fiber Optic 3G-SDI Digital Video Extender Module
Experience crystal-clear SDI video over extraordinary distances with the Opticis SDIX-100-TR. This miniature fiber-optic extender supports SD, HD, and 3G-SDI formats—delivering uncompressed 1080p60 and multi-rate SDI up to 3 Gbps over single-mode fiber spans up to 30 km. Its ultra-compact design and robust metal housing make it ideal for broadcast, medical imaging, live events, and remote monitoring applications.
Setup is effortless: plug in the TX and RX modules, attach ST-terminated fiber, and power via a secure latch-locking connector. No user adjustments are required—advanced digital transmission technology provides automatic cable equalization and resynchronization for plug-and-play operation. Rugged construction and wide operating temperature range ensure rock-solid performance in any environment.
Key Features
- Multi-Rate SDI Support: SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), SMPTE-259M (SD-SDI)
- Ultra-Long Range: Up to 30 km over single-mode fiber
- Compact Footprint: Miniature modules measuring just 0.77″ × 0.77″ × 3.26″
- Zero-Adjustment Design: Automatic cable equalization and reclocking—no manual tuning
- Rugged Enclosure: Die-cast metal housing with latch-locking power connector
- Versatile Format Handling: Supports SDI, HD-SDI, 3G-SDI, DVB-ASI and more
Technical Specifications
- Laser Diode (TX): 1,310 nm FP
- Photo Diode (RX): InGaAs/InP PIN
- Data Rate: Up to 3 Gbps per channel
- Total Jitter (RX): ≤ 0.3 UI
- Propagation Delay: ≤ 40 ns
- Link Power Budget: ≥ 11 dB
- Optical Connector: ST
- Electrical Connector: 75 Ω BNC (male)
- Fiber Type: Single-mode (OS1/OS2)
- Maximum Range: 30 km
- Input Power: +5 V ⎓ 1.5 A via latch-locking DC jack
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: –30 °C to +70 °C
What’s Included
- 1× Transmitter module (TX)
- 1× Receiver module (RX)
- 1× +5 V ⎓ 1.5 A DC power adapter with latch-locking cable
- 1× User manual
