Description

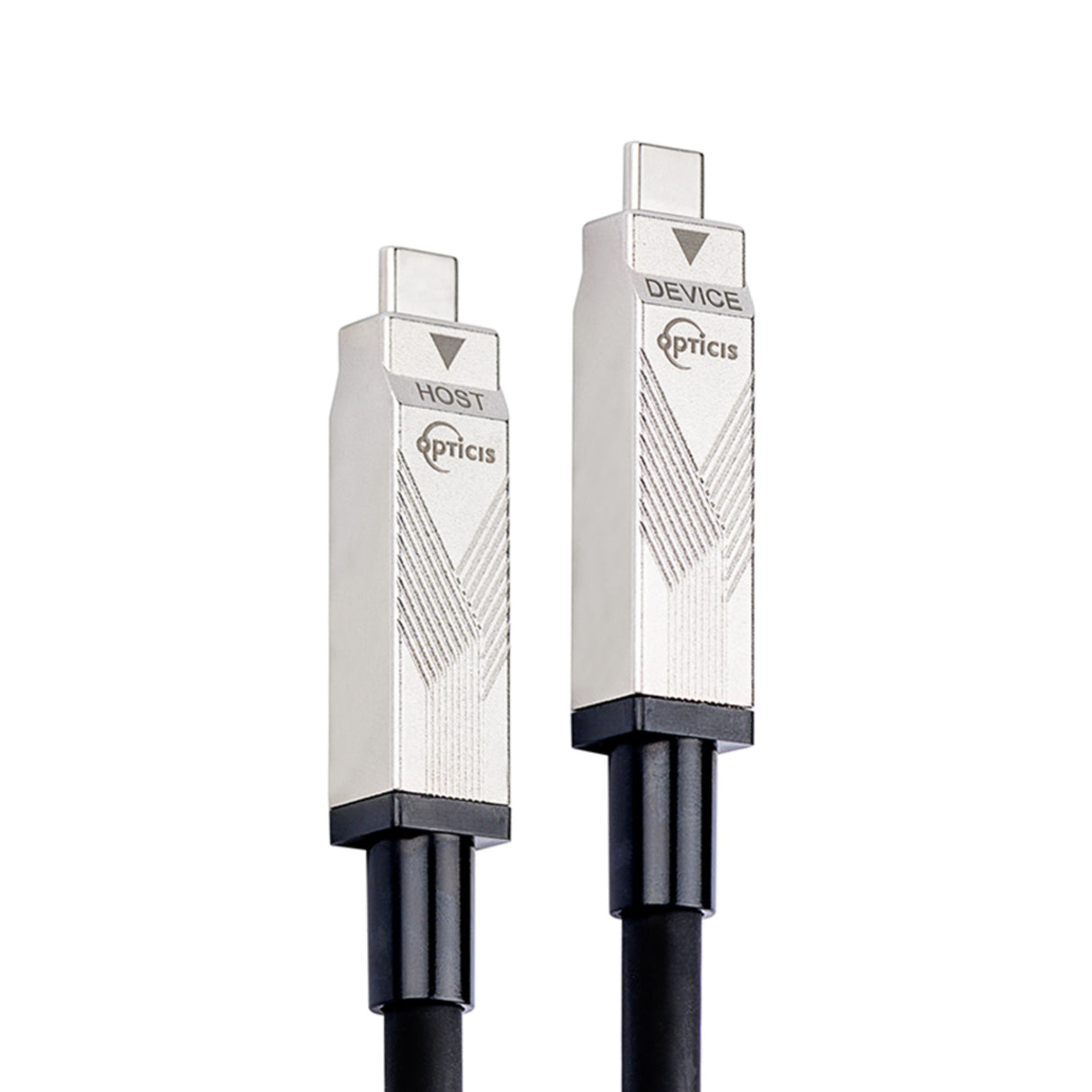

Opticis USC-CC32 USB 3.2 Gen 2x1 Type-C Active Optical Cable
The Opticis USC-CC32 is a USB Type-C to Type-C active optical cable (AOC) designed for long-distance, high-bandwidth connectivity. It supports SuperSpeed USB 3.2 Gen 2x1 data transmission up to 10Gbps over cable runs up to 15m (50ft), making it a strong fit for professional AV, conferencing, education, and workstation environments where standard copper USB-C cables can fall short.
In addition to high-speed data, USC-CC32 supports USB Power Delivery for charging or powering devices such as webcams and laptops, with power capability depending on cable length (up to 100W at 10m and 60W at 15m). For video workflows, it also supports DisplayPort Alt Mode up to 4K@60Hz on two DisplayPort lanes—useful for VR setups, 4K displays, and modern laptop-to-display or laptop-to-AV system deployments.
The cable’s USB-C terminal is designed with a curved profile to help reduce interference when plugged into tight spaces on monitors and similar devices. It is also designed to reduce susceptibility to ESD, EMI, and RFI, and it operates without requiring external power.
Key Features
- 10Gbps USB-C Active Optical Performance: Supports SuperSpeed USB 3.2 Gen 2x1 data transfer up to 10Gbps over distances up to 15m (50ft).
- USB Power Delivery Support: Delivers up to 100W at 10m (33ft) or 60W at 15m (50ft) for charging or powering compatible devices.
- DisplayPort Alt Mode 4K Video: Supports DisplayPort Alt Mode up to 4K@60Hz using two DisplayPort lanes for modern USB-C video connectivity.
- Backwards Compatibility: Works with USB 2.0 and USB 1.1 devices for broader system compatibility.
- Robust Connection Design: Curved terminal design helps minimize interference on tightly spaced ports; compatible with a locking accessory to reduce accidental unplugging.
- Noise & ESD Mitigation: Designed to help reduce ESD, EMI, and RFI in demanding installations.
- Plug and Play Operation: No external power required for operation.
Technical Specifications
- Connector Type: USB Type-C Male to USB Type-C Male
- USB Standard: USB 3.2 Gen 2x1 (10Gbps); backward compatible with USB 2.0 and 1.1
- Maximum Data Rate: 10Gbps (USB 3.x)
- Power Delivery: Up to 100W at 10m (33ft) or 60W at 15m (50ft)
- Video Mode: DisplayPort Alt Mode up to 4K@60Hz (2 DisplayPort lanes, 8.1Gbps/lane)
- Cable Type: Hybrid cable (4 OM3 fiber + 8 copper wire)
- Cable Jacket: PVC
- Cable Outer Diameter: 0.29 in (7.3mm ±0.3mm)
- Minimum Bend Radius: 4.43 in (112.5mm)
- Operating Temperature Range: -10°C to 60°C
- Operating Voltage: 5V to 20V
- Operating Current: Up to 200mA
- Differential Impedance: 90 Ohm
Common Applications
- Conference & Meeting Rooms: Long-run USB-C connectivity for cameras, laptops, and room systems.
- Broadcast / Audio Systems: Reliable USB and video transport for production and integration environments.
- Education & Training: USB-C extension for classrooms, lecture capture, and lab setups.
- VR & 4K Display Workflows: Support for DisplayPort Alt Mode video alongside high-speed USB data.
- Security & Control Rooms: Clean long-distance connectivity for peripherals and displays.
