Orange AD30HTC 30-Watt Twin Channel Guitar Amplifier Head, Orange
The AD30 is two vintage amps in one, made in England with classic Orange styling. The channels have two separate signal paths but are voiced differently. Channel One is the cleaner channel, with channel Two being the classic crank-it and go channel. With two stages of gain, the amplifier gives players power amp distortion, for that classic vintage tone.
The valve rectifier is key to the amps sound, giving controlled natural compression in the power supply, making it perfect for country pickers through to indie artists.
Custom BrIt'sh made hand-wired transformers made to Orangeās own specification, keep this amp Orange to the core.
TWO CHANNEL, VINTAGE SOUND
The AD30 is a classic, two channel BrIt'sh amplifier, you can set both channels to clean or both to crunch. Itās a versatile amplifier that has two completely separate signal paths, Channel One has a thick, creamy, classic voice. Whereas Channel Two has a tighter bass response, with more gain and a quicker attack.
VALVE RECTIFIER
The GZ34 valve rectifier is key part of the AD30ās sound, giving natural compression in the power stage of the amplifier. Giving the amp a unique response and sag, reacting to how you dig into strings and play.
UK BUILT TRANSFORMERS
Redesigned for the AD30, the U.K. built, five section 30 Watt transformers, that saturates earlier and smoothly like vintage transformers. Over two years of development and several designs revisions these transformers have become the standard Orange transformer.
Technical Specifications
FEATURES
ALL VALVE, FOOT SWITCHABLE TWO CHANNEL, VALVE RECTIFIER,

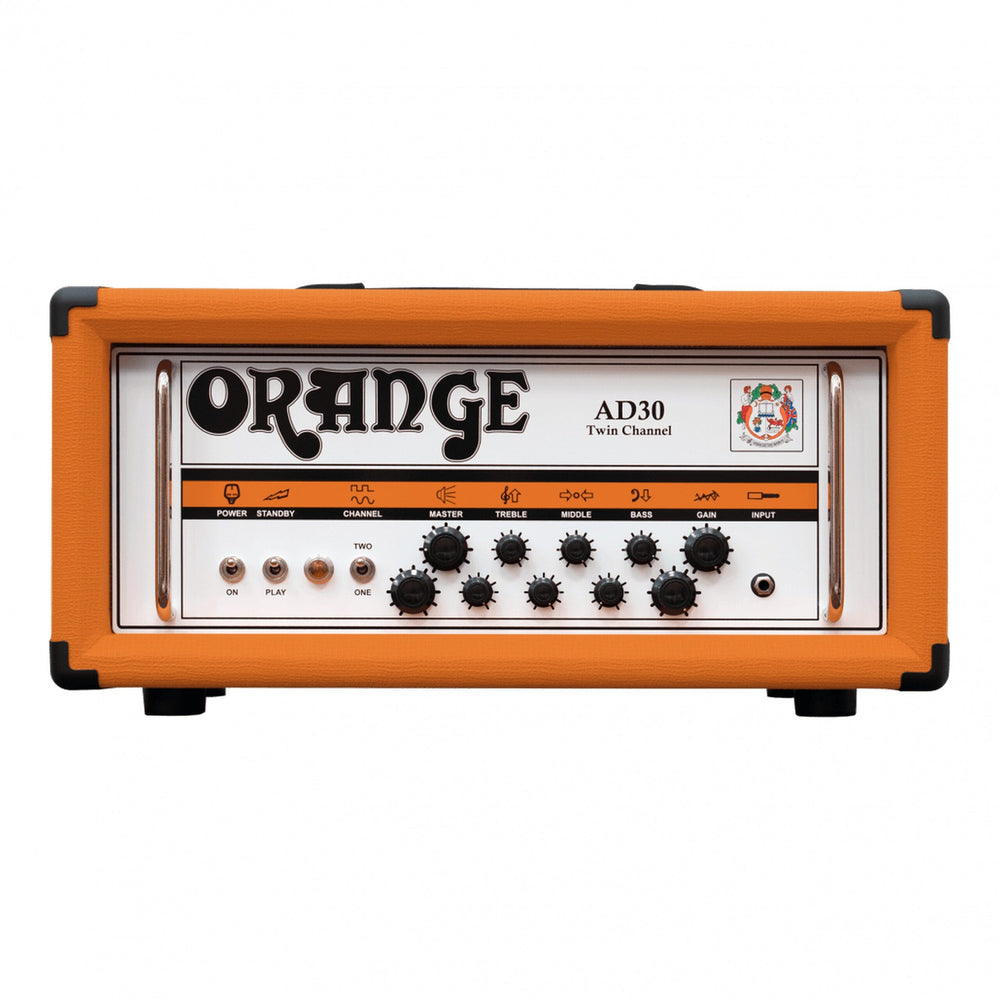

CONTROLS
MASTER, TREBLE, MIDDLE, BASS AND GAIN FOR CHANNEL 1 & CHANNEL 2
OUTPUT POWER (HEADS AND COMBOS)
30 WATTS
POWER HANDLING (CABINETS)
NA
VALVES (HEADS AND COMBOS)
PREAMP: 4 X ECC83/12AX7
POWER AMP: 4 X EL84
RECTIFIER: GZ34

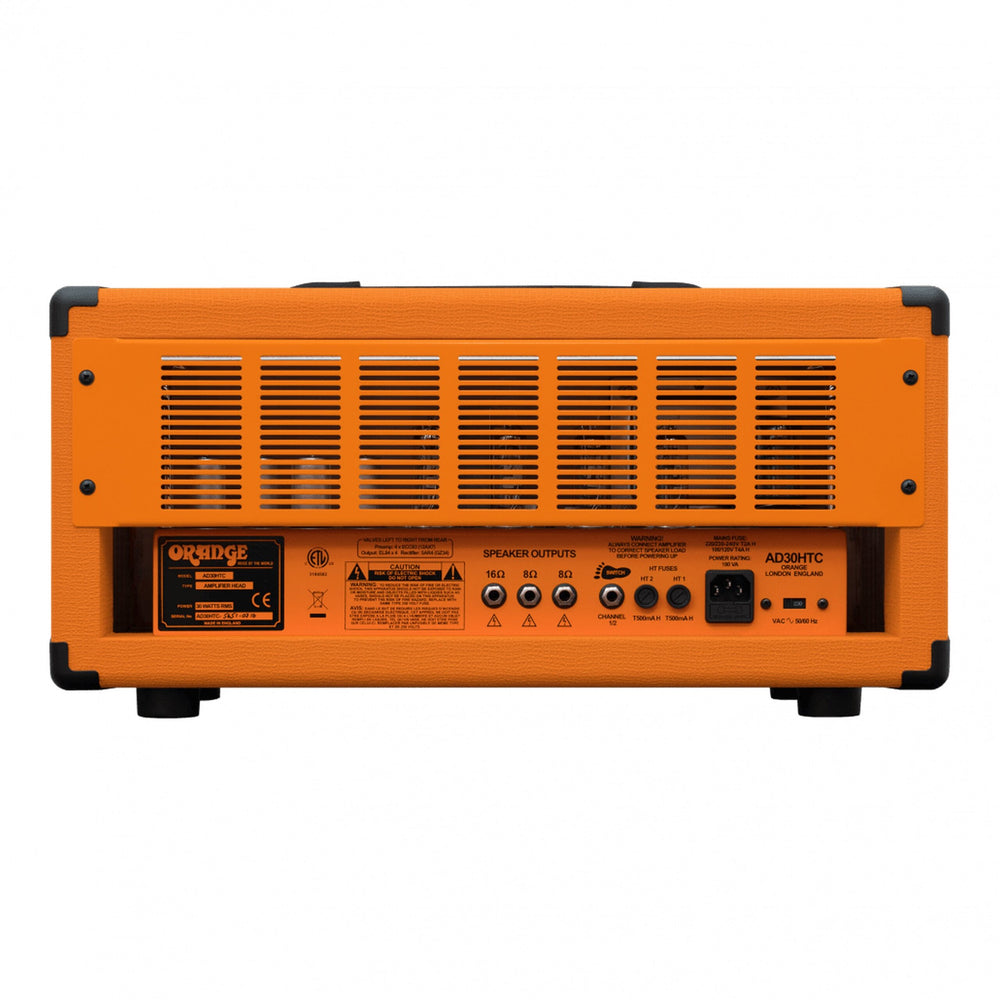

SPEAKER OUTPUT OPTIONS (HEADS)
1 X 16 OHM CABINET CONNECTED TO THE 16 OHM OUTPUT
1 X 8 OHM CABINET CONNECTED TO ONE OF THE 8 OHM OUTPUTS
2 X 16 OHM CABINETS EACH CONNECTED TO ONE OF THE 8 OHM OUTPUTS
SPEAKERS (COMBOS AND CABINETS)
NA
IMPEDANCE (CABINETS)
NA
EXTENSION CABINET OPTIONS (COMBOS)
NA
UNBOXED DIMENSIONS (W X H X D)
55 X 27 X 24 CM (21.65 X 10.63 9.45ā)
UNBOXED WEIGHT
16.5 KG (36.4 LB)
