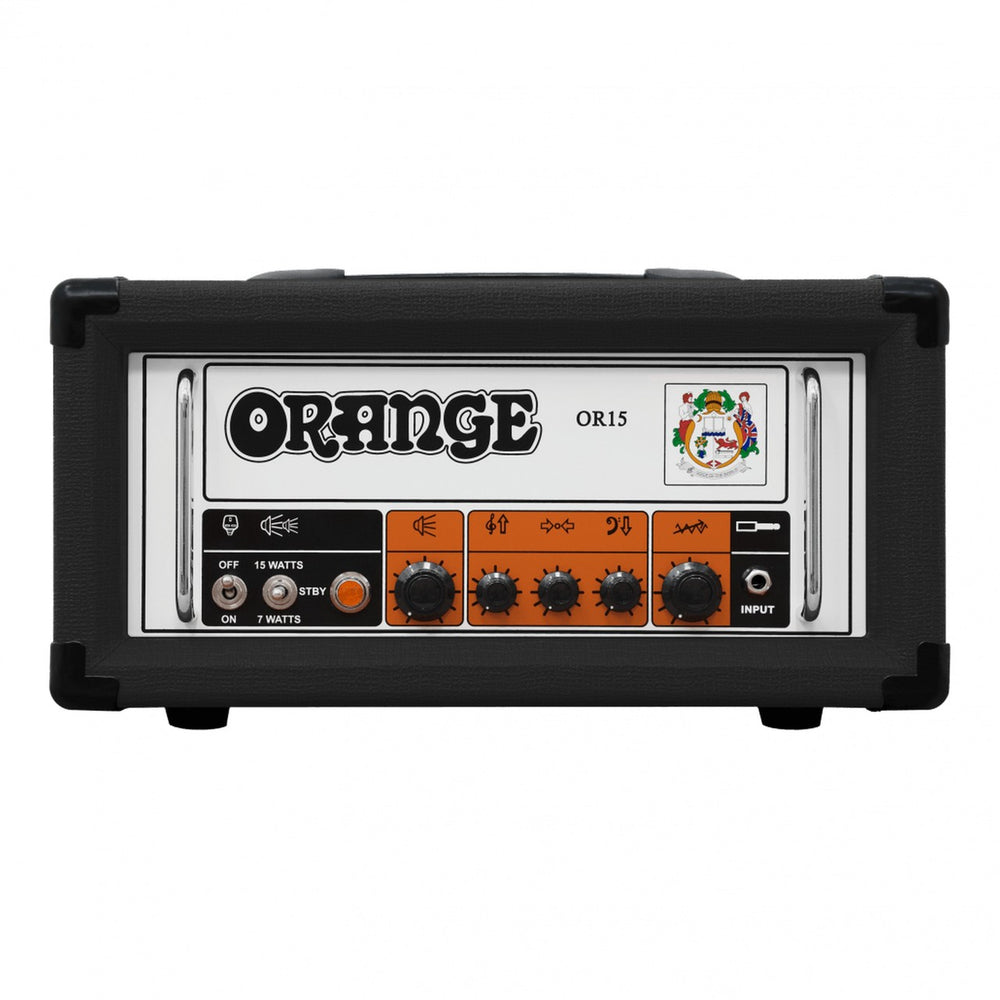

Orange OR15H-BK 15/7 Watt Single Channel 3 Band Compact Tube Head Amplifier Black
With outstanding dynamics and classic ‘Pics Only’ styling dating back to our Graphic models of the early 1970s, the OR15H is our smallest ever ‘sleeved’ amplifier. Aside from the aesthetics, the vintage flavour of the OR Series is reflected in the OR15’s ’boutique’ voicing, which distinguishes it from our other lower wattage valve models in the Terror Series.
Key Features
- SINGLE CHANNEL
- ALL VALVE
- PICS ONLY FRONT PANEL
- VALVE FX LOOP
- 7 & 15 WATTS
Technical Specifications
FEATURES
SINGLE CHANNEL
ALL VALVE
PICS ONLY FRONT PANEL
VALVE FX LOOP
CONTROLS
VOLUME,BASS,MIDDLE,TREBLE,GAIN
OUTPUT POWER (HEADS AND COMBOS)
7 & 15 WATTS
POWER HANDLING (CABINETS)
NA
VALVES (HEADS AND COMBOS)
POWER AMP: 2 X EL84
PRE AMP: 3 X ECC83/12AX7
FX LOOP: 1 X ECC81/12AT7

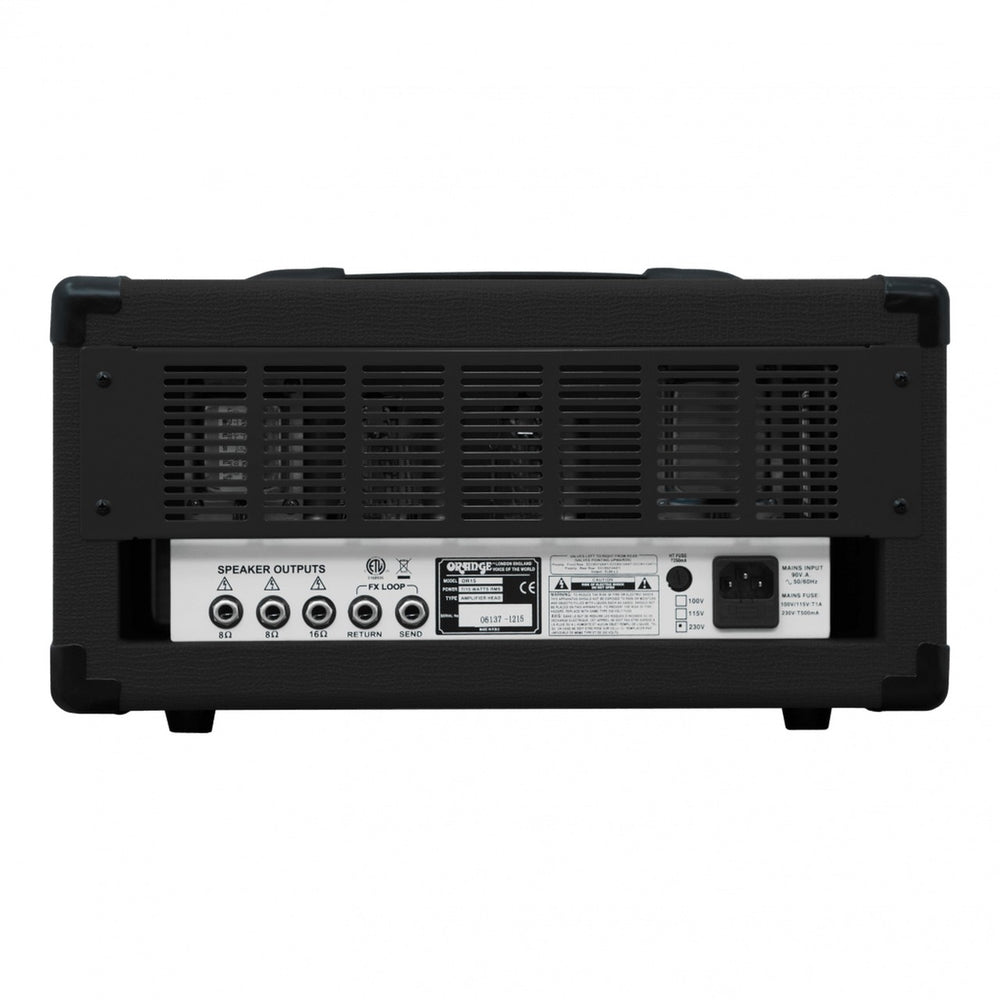

SPEAKER OUTPUT OPTIONS (HEADS)
1 X 16 OHM CABINET CONNECTED TO THE 16 OHM OUTPUT
1 X 8 OHM CABINET CONNECTED TO ONE OF THE 8 OHM OUTPUTS
2 X 16 OHM CABINETS EACH CONNECTED TO ONE OF THE 8 OHM OUTPUTS
SPEAKERS (COMBOS AND CABINETS)
NA
IMPEDANCE (CABINETS)
NA
EXTENSION CABINET OPTIONS (COMBOS)
NA
UNBOXED DIMENSIONS W X H X D
40 X 21 X 18 CM (15.75 X 8.27 X 7.09)
UNBOXED WEIGHT
8.06 KG (17.77 LB)
