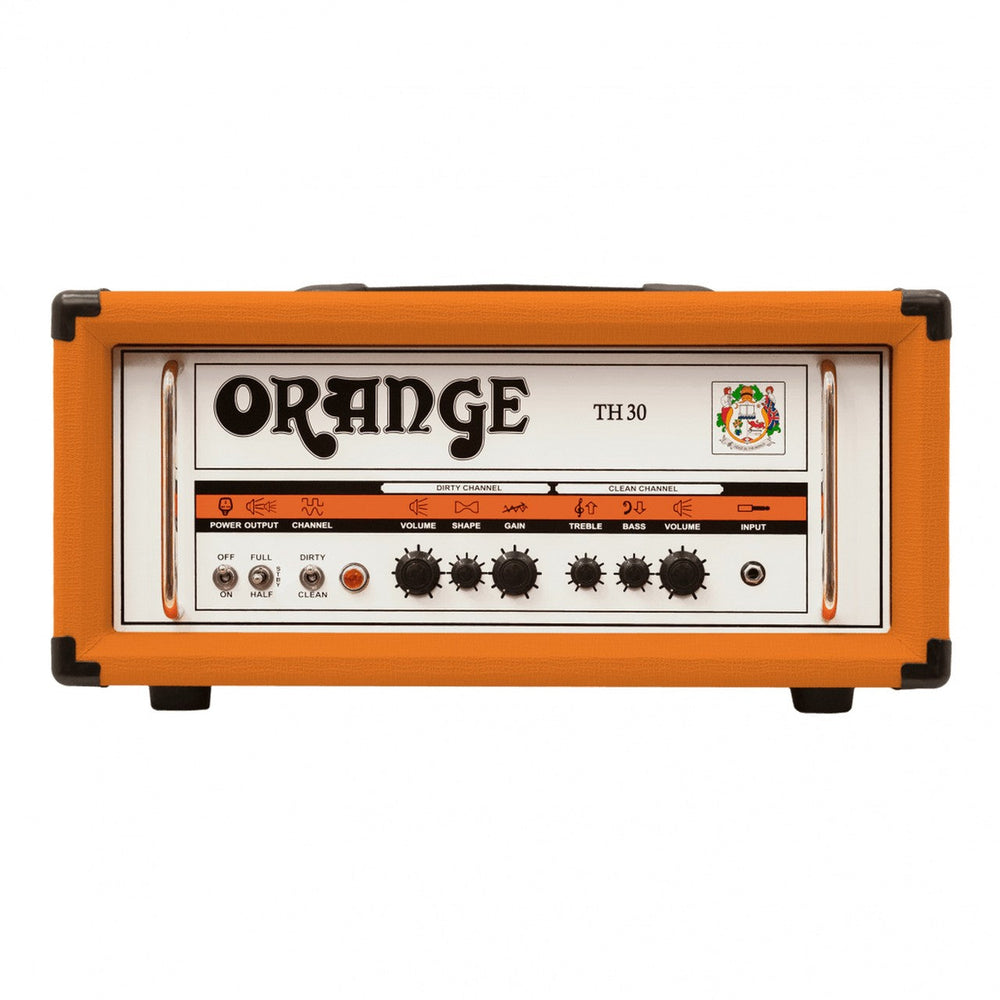

Orange TH30H 30/15/7 Watt 2 Channel Tube Head Amplifier
With jangly cleans and high gain filth coexisting in perfect harmony, TH Series amplifiers excel whatever the situation. The Dirty channel features the same powerful Shape control first seen on our Thunderverb series, sweeping the midrange from scooped to boosted. Fine-tuning your distorted tones has never been easier or more rewarding. The Clean channel delivers sweet, crystalline cleans, right up to the point of breakup, whilst the Dirty channel remains unerringly focussed, steeped in complex harmonic overtones even at maximum gain settings.
Key Features
- FOOT SWITCHABLE TWIN CHANNEL, ALL VALVE, VALVE FX LOOP
- CONTROLS: DIRTY VOLUME, SHAPE, GAIN. CLEAN TREBLE, BASS, VOLUME
- OUTPUT POWER (HEADS AND COMBOS): 7 , 15 OR 30 WATTS
Technical Specifications
CONTROLS
DIRTY VOLUME, SHAPE, GAIN. CLEAN TREBLE, BASS, VOLUME
OUTPUT POWER (HEADS AND COMBOS)
7 , 15 OR 30 WATTS
POWER HANDLING (CABINETS)
NA
VALVES (HEADS AND COMBOS)
POWER AMP: 4 XEL84
PREAMP: 4 X ECC83/12AX7
FX LOOP: 1 X ECC81/12AT7
SPEAKER OUTPUT OPTIONS (HEADS)
1 X 16 OHM CABINET CONNECTED TO THE 16 OHM OUTPUT
1 X 8 OHM CABINET CONNECTED TO ONE OF THE 8 OHM OUTPUTS
2 X 16 OHM CABINETS EACH CONNECTED TO ONE OF THE 8 OHM OUTPUTS
SPEAKERS (COMBOS AND CABINETS)
NA
IMPEDANCE (CABINETS)
NA
EXTENSION CABINET OPTIONS (COMBOS)
NA
UNBOXED DIMENSIONS (W X H X D)
55 X 27 X 24 CM (21.65 X 10.63 X 9.45)
UNBOXED WEIGHT
15.55 KG (34.28 LB)
