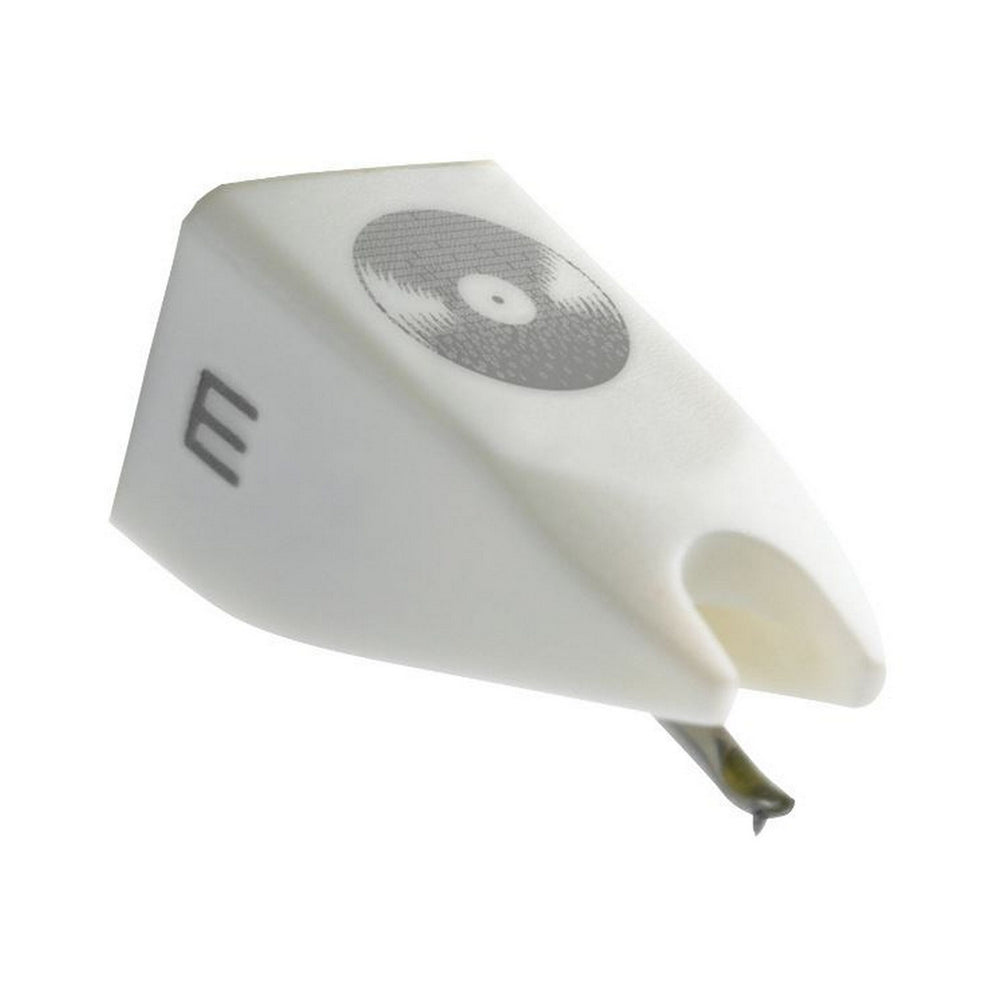

Ortofon Arkiv Elliptical Stylus: The Ultimate Solution for Vinyl Digitization

The Ortofon Arkiv Elliptical Stylus answers the growing demand for professional-grade vinyl-to-digital transcription. Specifically engineered to deliver top-notch sound quality, this stylus is an essential tool for DJs, archivists, and sound engineers who need precise and reliable audio reproduction. With the Arkiv Stylus, you can achieve clear and accurate sound, coupled with outstanding stereo imaging, making it perfectly suited for a variety of professional applications, including sampling, transcription, and more.

Designed to meet the needs of meticulous audio professionals, the Arkiv Elliptical Stylus excels in capturing the nuanced details of your vinyl collection. Its superior tracking ability ensures that each record is reproduced with faithful accuracy. Whether you are archiving rare vinyl records, sampling music for new projects, or simply looking to enjoy high-fidelity sound, the Ortofon Arkiv Stylus stands out as a premier choice.

Key Features

• Optimized for vinyl-to-digital transcription
• High output voltage of 6 mV at 1000Hz
• Exceptional channel separation for clear stereo imaging
• Wide frequency response range of 20-22,000 Hz
• Special elliptical stylus tip for improved tracking
• Recommended tracking force range of 2.0-4.0 g
• Highly durable with a robust internal impedance

Specifications

• Output voltage at 1000Hz, 5cm/sec: 6 mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-22,000 Hz
• Frequency response: 20-20,000 Hz +/-2 dB
• Tracking ability at 315 Hz at recommended tracking force: 80 μm
• Compliance, dynamic lateral: 9 μm/m N
• Stylus type: Special Elliptical
• Stylus tip radius: r/R 13/25 μm
• Tracking force range: 2.0-4.0 g (20-40 mN)
• Recommended tracking force: 3.0 g (30 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Weight: 18.5 g

Package Contents

• Ortofon Arkiv Elliptical Stylus
