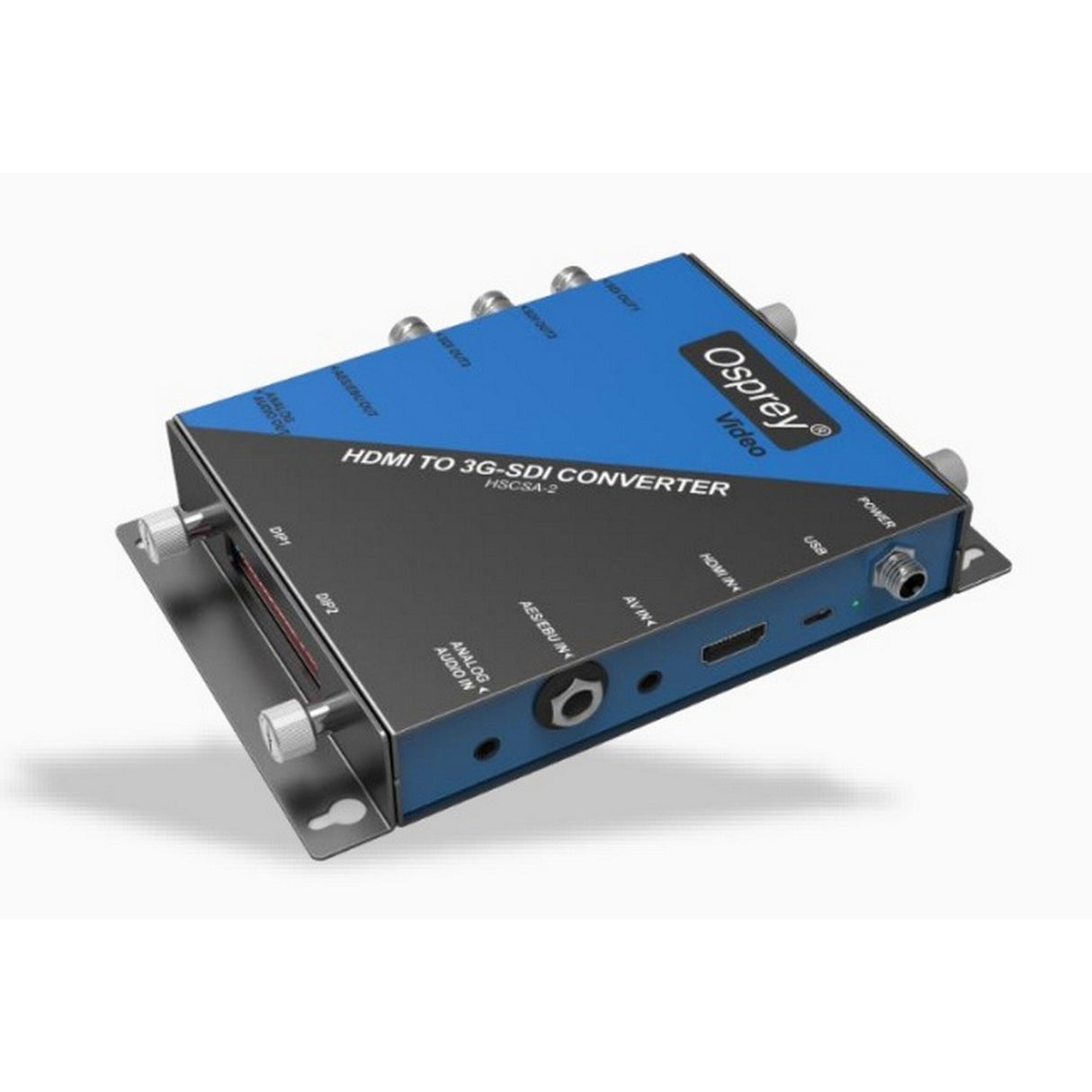

Osprey Video HSCSA-2 Scaling HDMI to SDI Converter
Osprey Video HSCSA-2 Scaling HDMI to SDI Converter
Free Shipping
Osprey Video HSCSA-2 Scaling HDMI to SDI Converter
HDMI to 3G-SDI CONVERTER, USB Software Controls and DIP Switch Controls
Key Features
- HDMI and CVBS IN, 3G-SDI OUT
- AES/EBU and ANALOG AUDIO
- EMBEDDING and DE-EMBEDDING
Technical Specifications
Input Video Formats HDMI
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080i 50, 59.94, 60
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
576i, 576p
480i, 480p
Input Video Formats AV
NTSC, PAL
Output Video Formats SDI
1920x1080p 24, 25, 30, 50, 60
1920x1080i 50, 59.94, 60
1280x720p 24, 25, 30, 50, 60
625i
525i
Color Space and Precision
HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2
Video Input
HDMI 1.3a
CVBS (Composite)
Video Output
3G-SDI x3
Audio Input
Embedded HDMI, Analog Stereo, AES/EBU
Audio Output
Embedded HDMI, Analog Stereo, AES/EBU
Size
5”x2.4”x0.95” (125.5x104x24.5mm)
Weight
0.7lb (0.30kg)
