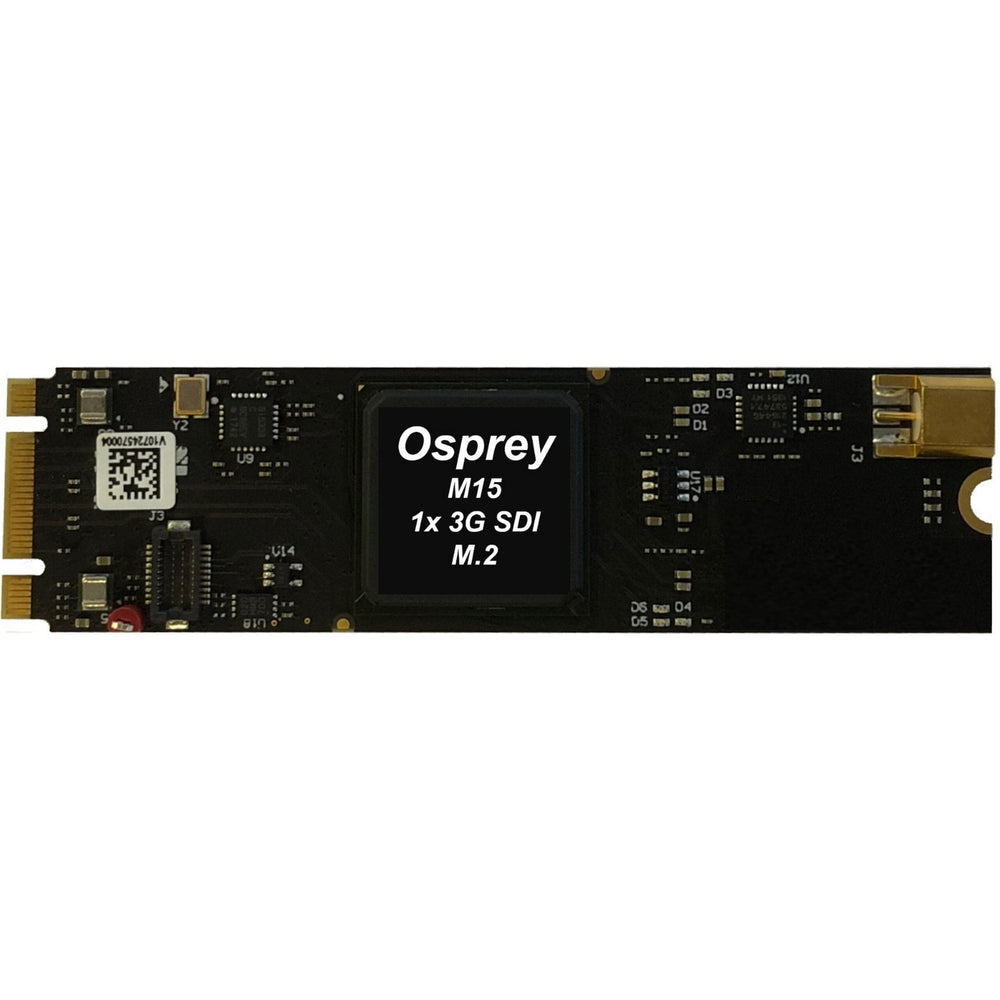

Osprey Video M15 1 x 3G-SDI Capture Card
The Osprey Raptor M15 features one SDI Input rated at 3Gb/s. Port works with SD, HD and 3G frame sizes. All Mxx Raptor Cards can capture up to 60fps. The SDI Input supports 16 Audio Channels (8 Stereo Channels).
Key Features
- 3G-SDI
- Inputs up to 1080P60
- Programmable Loopouts
- Video Outputs
- 16 Audio Channels per Input
- Simulstream
- Medialooks SDK Support
- Independent Scaling and Frame Rate Conversion for each Input
Technical Specifications
Computer Interface
M.2 PCIe Gen2 x2 (2280)
Power Consumption
~ 3.80W
Operating Temperature
0 to 40C
Weight
22g
In the Box
Capture Card
Connections
1 x 3Gb/s SD/HD/3G-A (MCX)
SDI Audio Input
Embedded 16 Channels (8 Stereo) per connection
SD Video Standards
525i59.94 NTSC, 625i50 PAL
3G/HD Video Standards
720p50,59.94,60, 1080p23.98,24,25,29.97,30,50,59.94,60, 1080i50,59.94,60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
CEA-608, CEA-708 for closed captioning
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Color Precision
8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
Multiple Rate Support
Auto Detect SD/HD/3G-A
