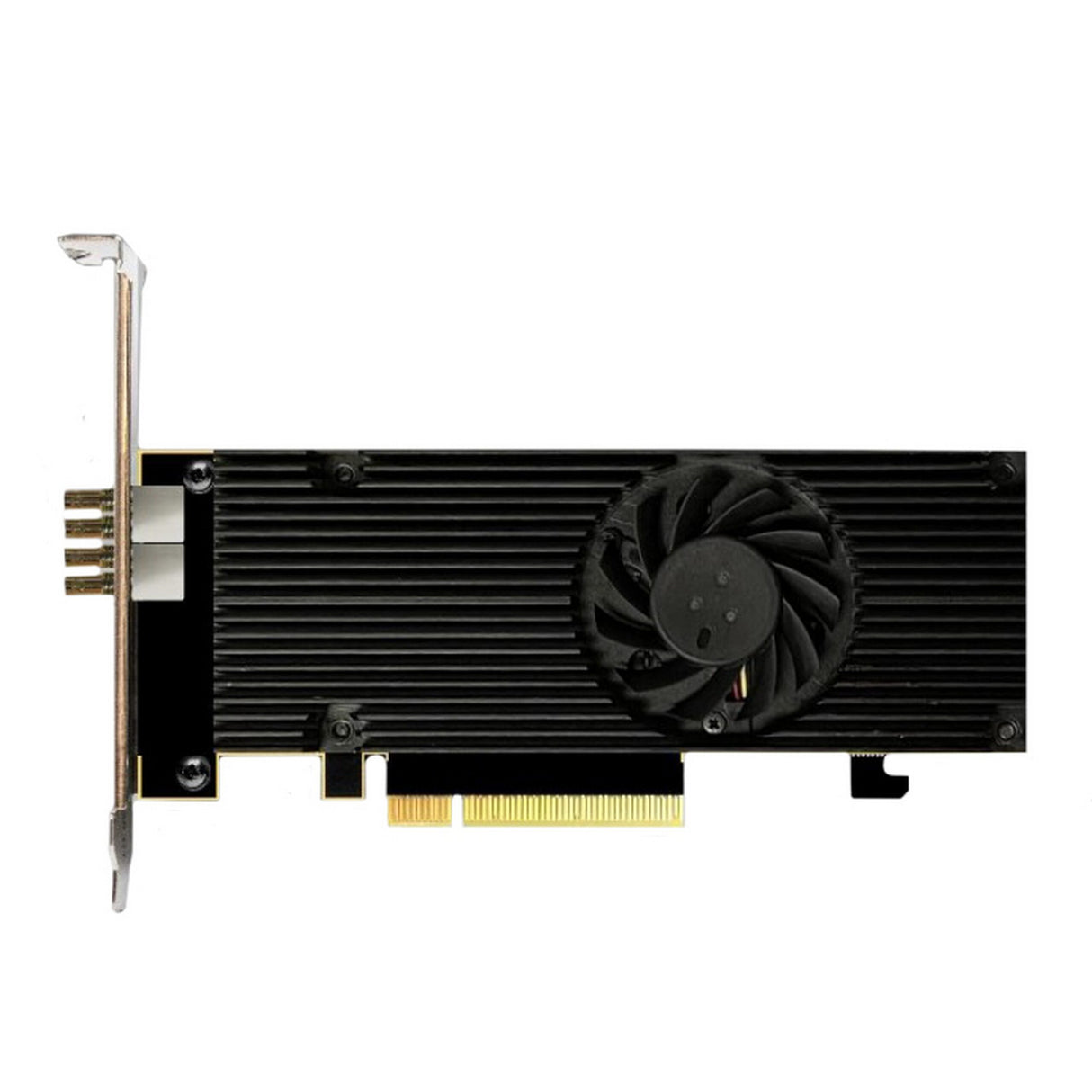

Osprey Video Raptor 1245 4 Channel 12G SDI I/O Capture Card
Osprey Video Raptor 1245 4 Channel 12G SDI I/O Capture Card
Free Shipping
Osprey Video Raptor 1245 4 Channel 12G SDI I/O Capture Card
Video capture card
Key Features
- 4 Channels 12G-SDI
- 10-bit Color Depth
- 16 Audio Channels per Input
Technical Specifications
Video Bandwidth
Motherboard PCIe 3.0 interface
4x 12G-SDI at 8-bit
2x 12G-SDI plus 2x 3G-SDI at 10-bit
Motherboard PCIe 2.0 interface
2x 12G-SDI plus 2x 3G-SDI at 8-bit
2x 12G-SDI at 10-bit
4x 3G-SDI at 10-bit
Video Formats
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G Level A only)
1080i50, 59.94, 60
UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SDI Compliance
SMPTE 259/292/296/372/424/425/435/2082
SDI Metadata Support
CEA-608, CEA-708 for closed captioning
SDI Color Spaces 8-bit
4:2:2 - UYVY, YUY2, NV16, NV61
4:2:0 - I420, NV12, NV21, YVU9, YV12
4:4:4 - RGB15, RGB24, RGB32, BGR24, BGR32
SDI Color Spaces 10-bit
4:2:2 - P210, P216, XV20
4:2:0 - P010, P016
Multiple Rate Support
Video Format Auto Detect
SDI Audio Inputs
Embedded 16 Channels (8 Stereo) per connection
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit
