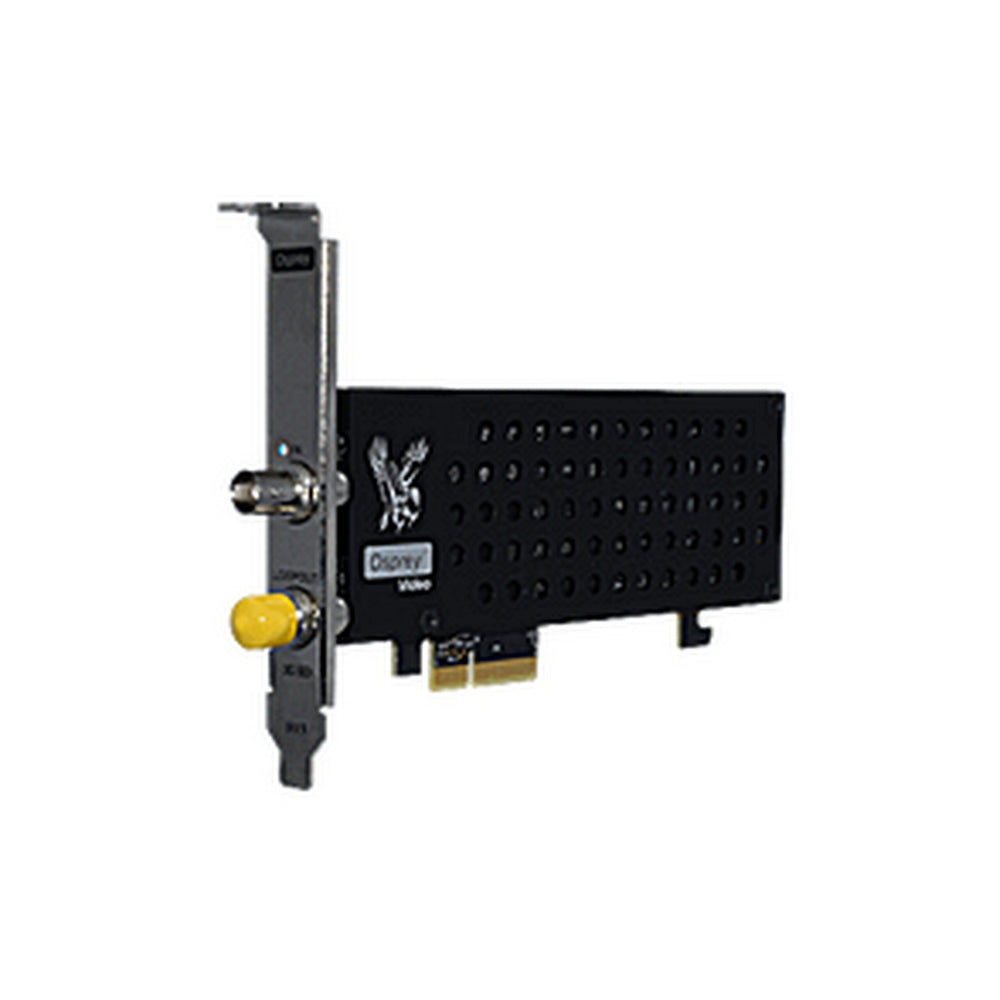

Osprey Video Raptor 915 Single Channel 3G-SDI with Loopout
Osprey Video Raptor 915 Single Channel 3G-SDI with Loopout
Free Shipping
Osprey Video Raptor 915 Single Channel 3G-SDI with Loopout
Raptor 915 - Single Channel 3G-SDI with Loopout
Technical Specifications
Video Formats
525i59.94 NTSC, 625i50 PAL
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60
SDI Compliance
SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A Only)
SDI Metadata Support
CEA-608, CEA-708 for closed captioning
SDI Input Color Precision
8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
Multiple Rate Support
Video Format Auto Detect
SDI Audio Inputs
Embedded 16 Channels (8 Stereo) per connection
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
Connections
Full Size BNC
PCIe 2.0 x4
Power Consumption
~ 6.85W
Warranty
2 years
3 years for rugged version
Compliance
CE, FCC, RoHs, REACH
