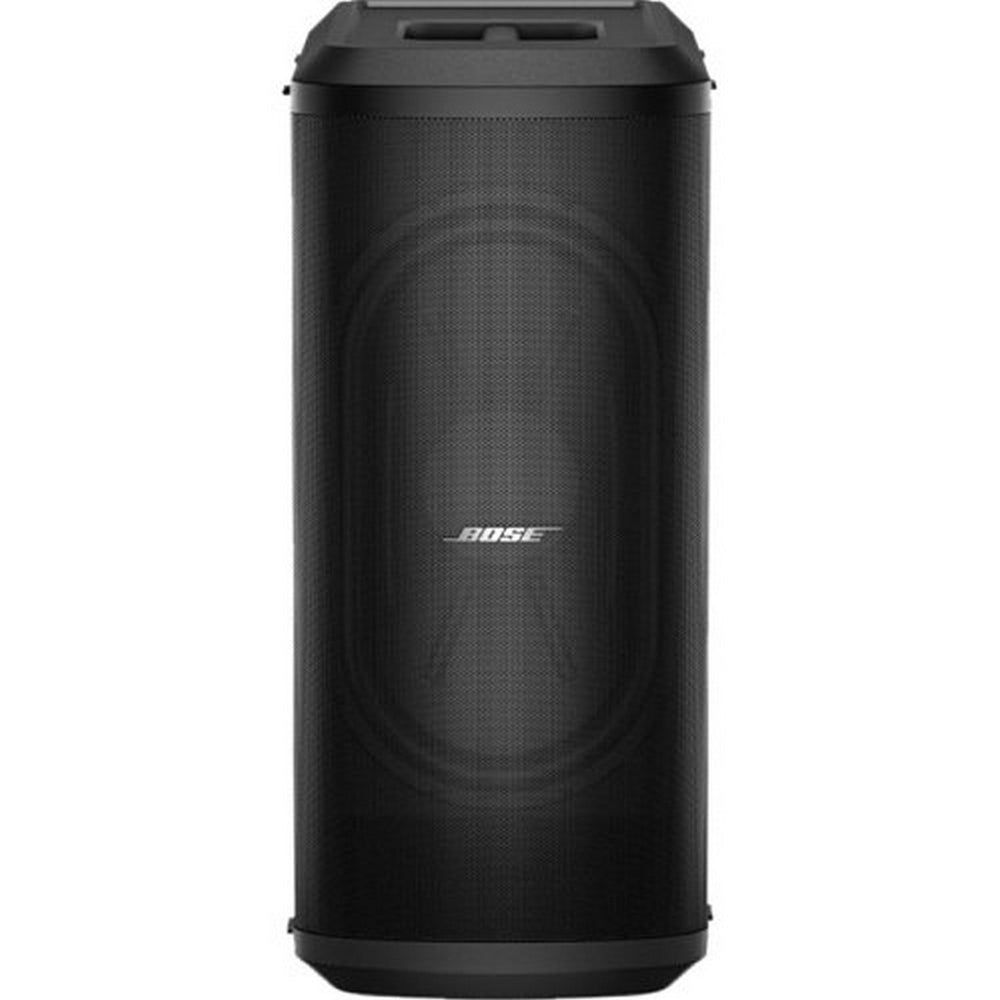

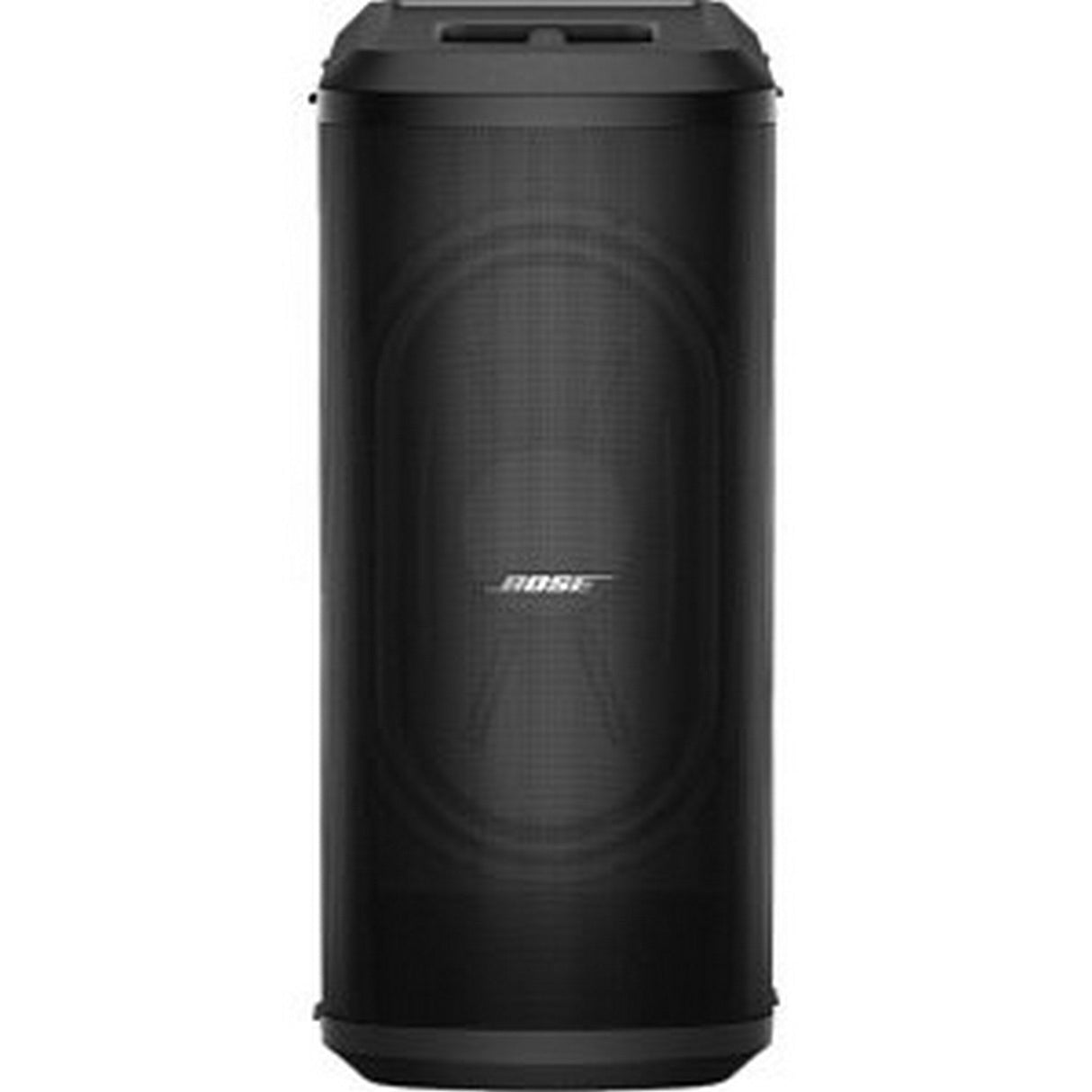

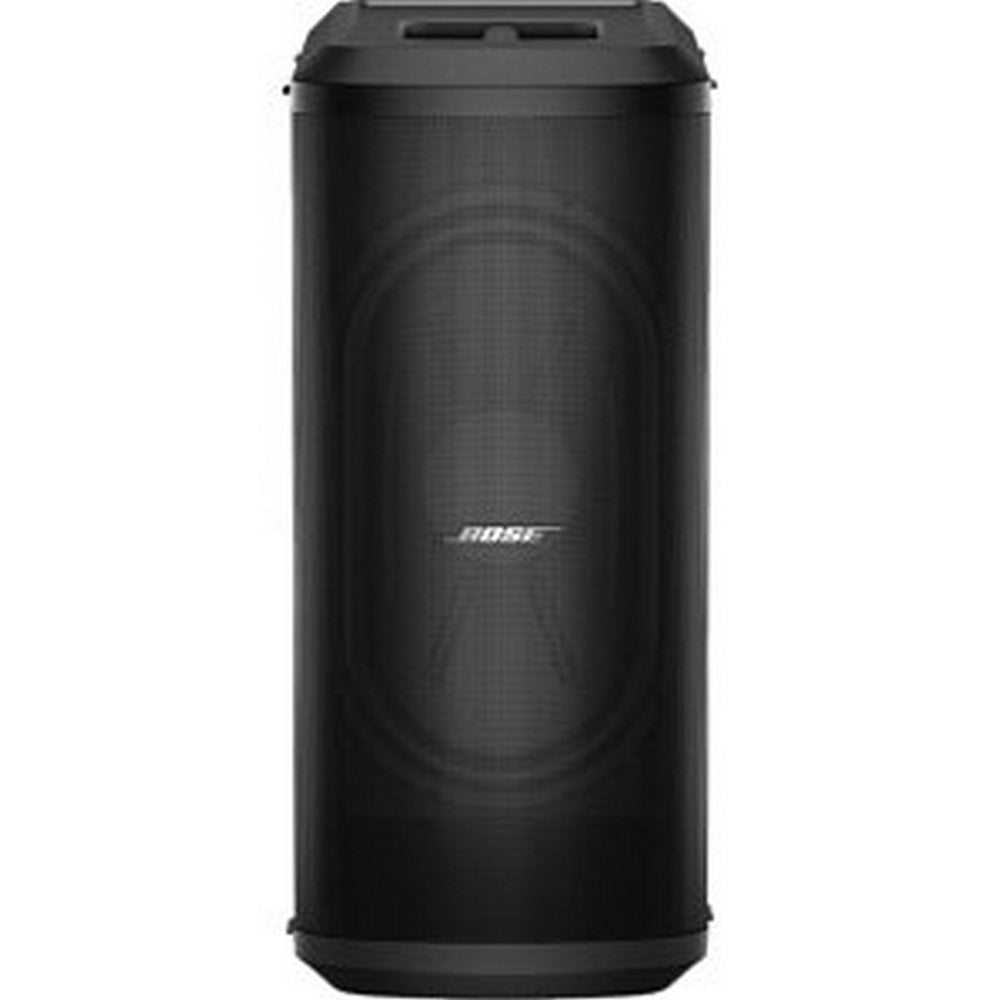

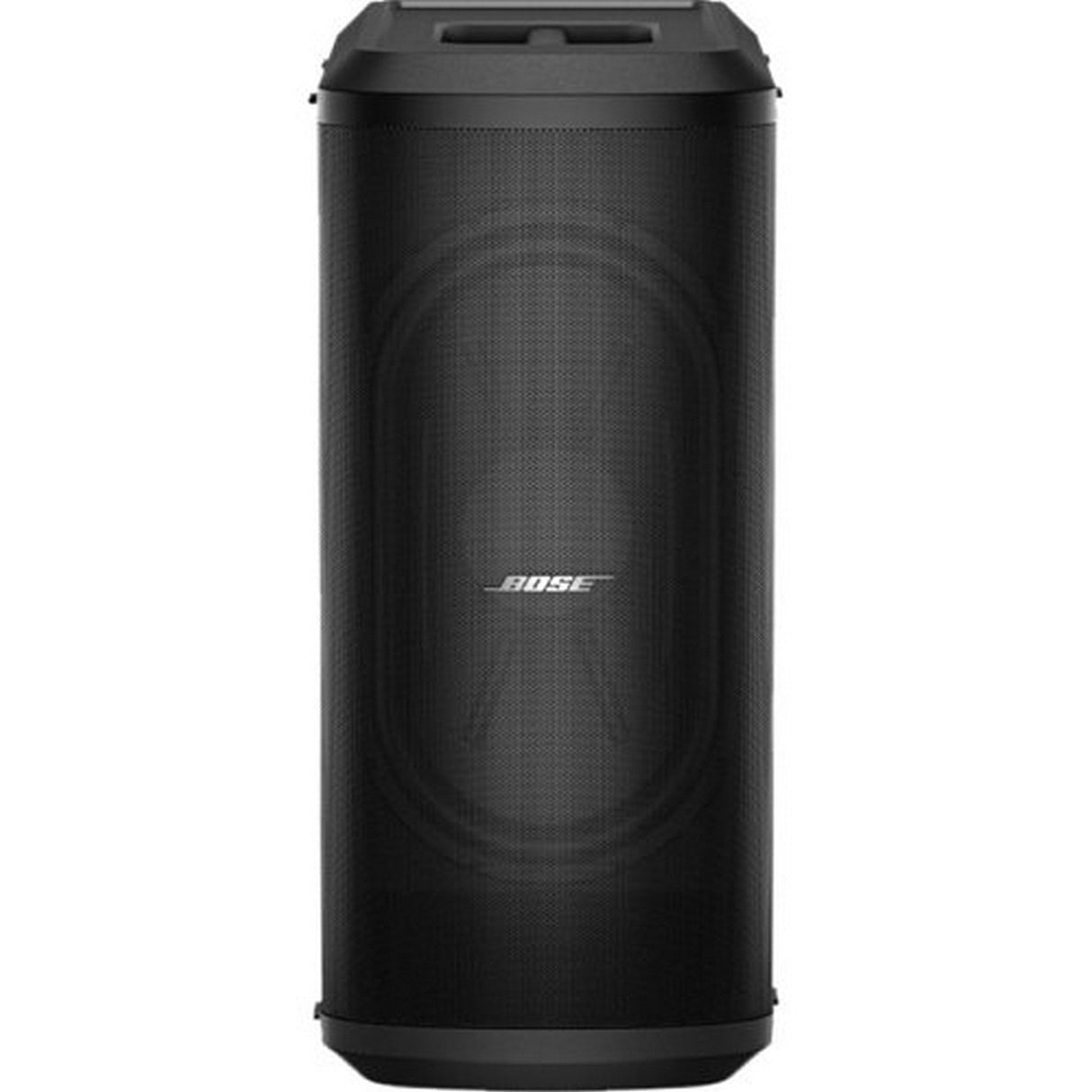

Bose Sub2 L1 PRO Series Powered Portable Bass Module

The Bose Sub2 is a high-performance, powered bass module designed to enhance portable PA systems with deep, rich bass response down to 37 Hz. It features a unique 10" × 18" high-excursion neodymium RaceTrack driver that delivers the same output as a conventional 15" woofer but in a much slimmer enclosure. This space-saving design makes it easy to transport and set up, while still delivering professional-grade low-end reinforcement for both music and speech.

Ideal for use with the Bose L1 Pro32 system, the Sub2 connects via proprietary SubMatch technology, providing both power and audio through a single cable. Multiple Sub2 units can be stacked to increase output or configured in Cardioid Mode for directional bass, which focuses the output forward and reduces rear-facing noise. It also includes flexible connectivity options and mounting features, making it a versatile solution for performers, DJs, and AV professionals.

Key Features:

• Extended low-end performance down to 37 Hz
• Unique 10" × 18" neodymium RaceTrack driver in slim enclosure
• Equivalent output to a traditional 15" woofer with smaller footprint
• Proprietary SubMatch single-cable power and audio connection to L1 Pro32
• Cardioid Mode for directional bass control when using two Sub2s
• 1000 W Class D amplifier with convection cooling

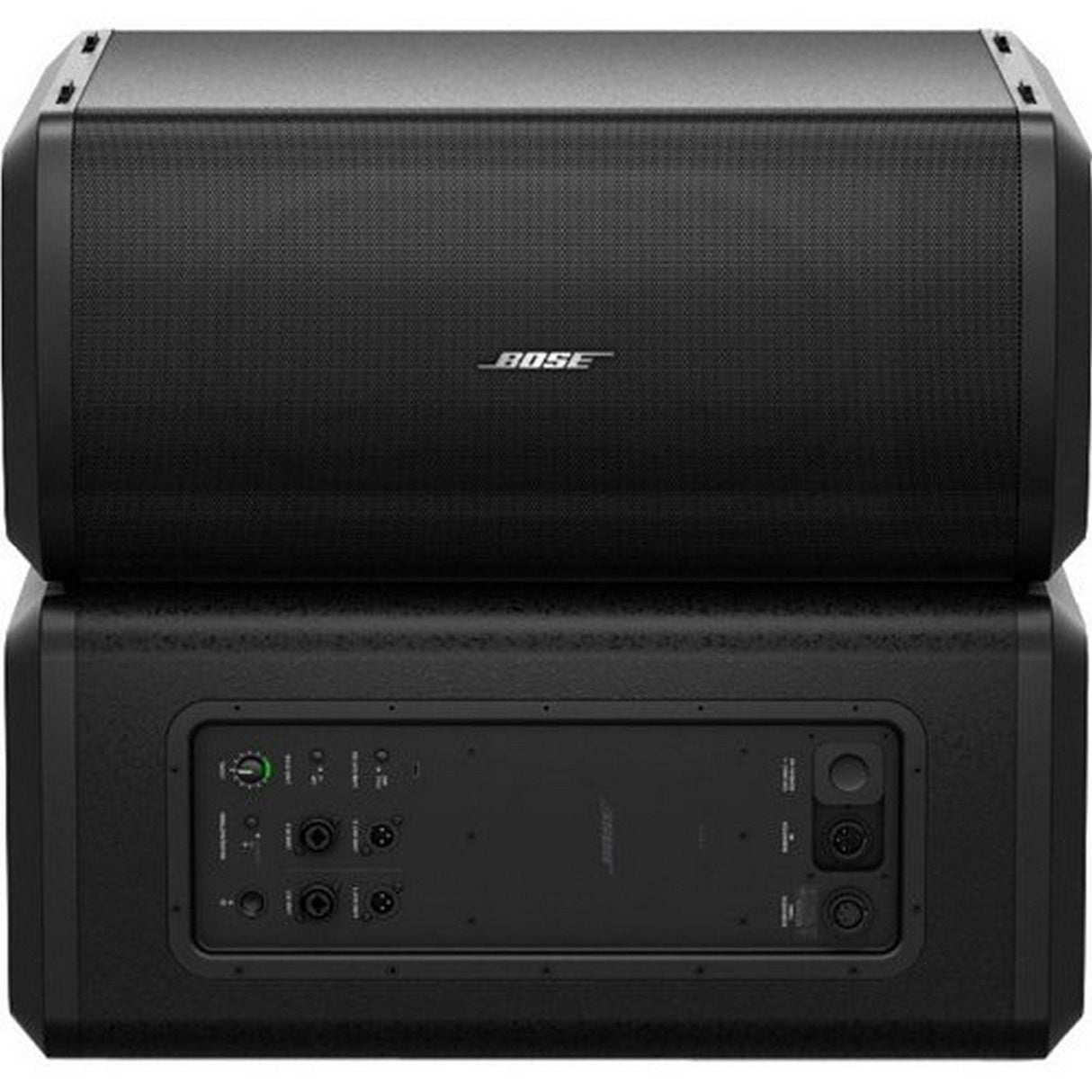

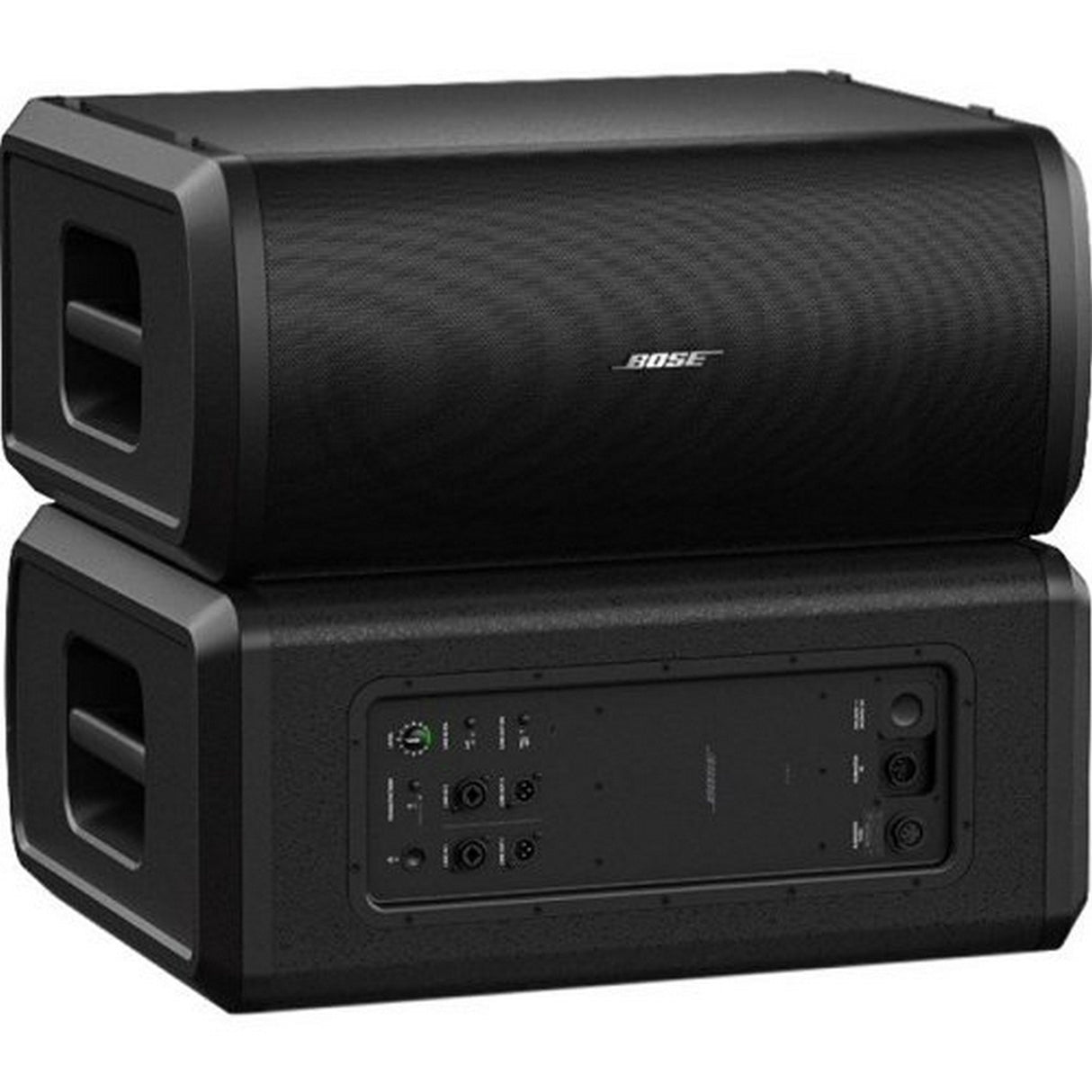

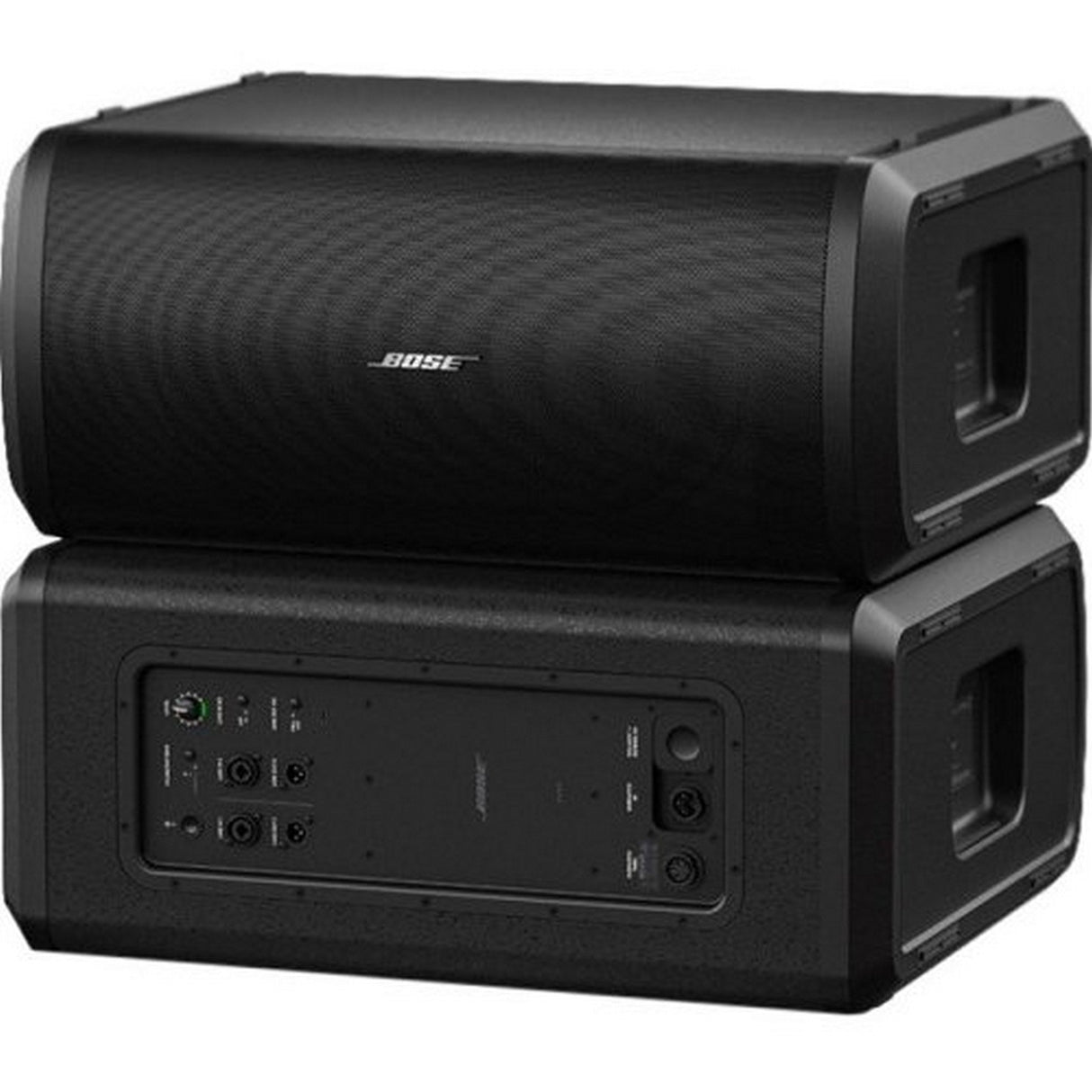

• Stackable design with interlocking feet
• Integrated M20 threaded pole mount for loudspeakers

Technical Specifications:

Model Name: Sub2
System Type: Self-powered bass module
Frequency Response (–3 dB): 37 Hz to 180 Hz
Frequency Range (–10 dB): 29 Hz to 260 Hz
Nominal Coverage: Omnidirectional (–10 dB rear rejection in Cardioid Mode)
Maximum SPL (Peak): 129.8 dB @ 1 m
Crossover: 200 Hz
Driver: 10" × 18" RaceTrack low-frequency driver
Voice Coil Size: 3"
Amplifier Type: Class D
Power Output: 1000 W
Cooling: Convection
Input Channels: Two combo XLR/1/4" TRS
Input Impedance: 100 KΩ
Max Input Signal: +24 dBu
Outputs: XLR line-level
SubMatch I/O: Proprietary multi-pin connectors
AC Power Input: 100–240 VAC, 50/60 Hz
Enclosure Material: High-impact polypropylene, birch plywood
Grille: Powder-coated perforated steel
Dimensions (H × W × D): 27.3 × 12.5 × 21.7 in
Shipping Dimensions: 25.98 × 15.16 × 31.10 in
Net Weight: 50.7 lbs
Shipping Weight: 61.0 lbs
Warranty: 2 years

Package Contents:

• Sub2 Powered Bass Module
• IEC Power Cord
• Slip Cover
