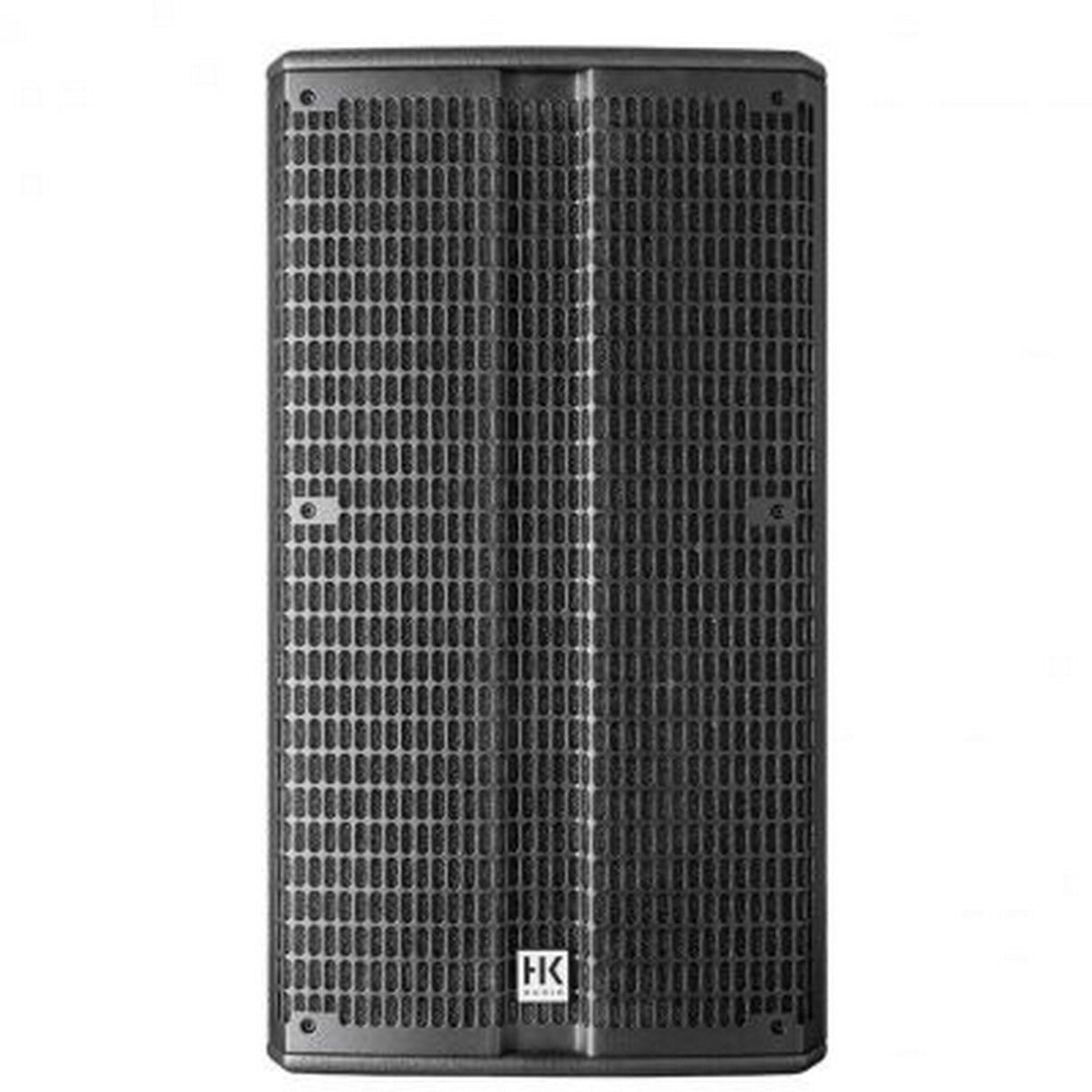

HK Audio Linear 5 112 F Passive 12 Inch 1200W 2-Way Speaker
HK Audio Linear 5 112 F Passive 12 Inch 1200W 2-Way Speaker
HK Audio Linear 5 112 F Passive 12 Inch 1200W 2-Way Speaker
12/1 full-range mid/high unit with the strongest bass range in its class and asymmetrical horn (60 - 90 x 55) for optimized sound distribution. The switchable EQ means it can be used in stand-alone applications or in a stereo pair, as well as a system mid/high unit in conjunction with a LINEAR SUB subwoofer.
Technical Specifications
Power-handling nominal (RMS)
500 W
Power-handling, program
1000 W
Frequency response +/-3 dB
79 Hz - 18 kHz
Frequency response -10 dB
60 Hz - 19 kHz
Sensitivity 1 W @ 1 m
103 dB half space
Max. SPL @ 10% THD
129 dB half space (79 Hz - 12 kHz average)
Max. SPL Peak @ 10% THD
135 dB half space
Electrical impedance
8 ohms
Protective circuits
PTC circuit
Low-/mid speaker
1x 12”, 2.5” voice coil
HF Driver
1”, 1.75” voice coil
Directivity
60-90 (asymmetrical) x 55 CD-Horn, rotatable
Crossover frequency
1.7 kHz, 12 dB/Oct.
Connections
2x Speakon NL4
Pole mount
DuoTilt 3/7
Rigging points
3x M8 (AP-8)
Carrying handles
2x MultiGrip
Housing
Hybrid (birch multiplex/MDF)
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8”
Weight
23.9 kg / 52.7 lbs
