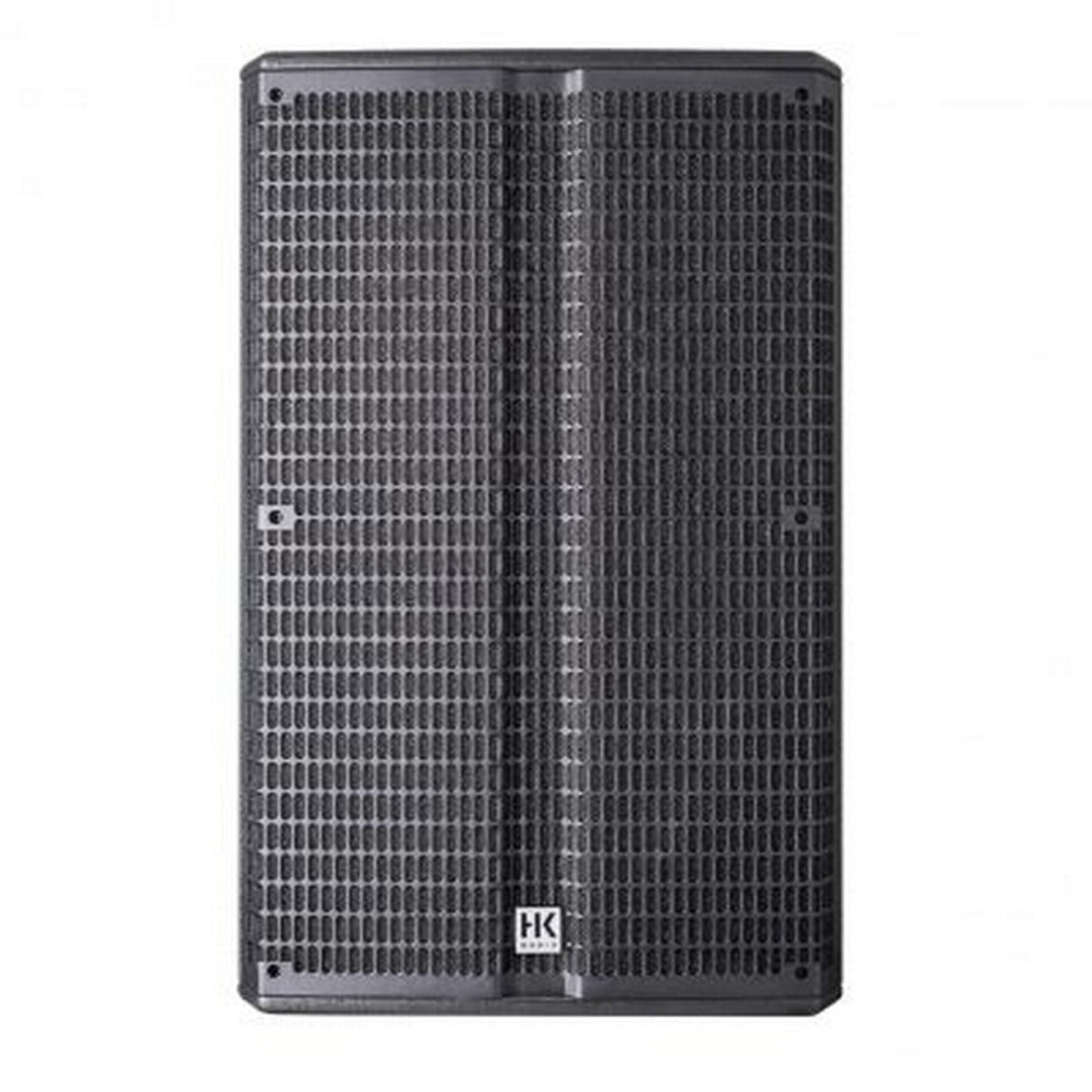

HK Audio Linear 5 115 FA Active 15 Inch 1000W 2-Way Speaker
HK Audio Linear 5 115 FA Active 15 Inch 1000W 2-Way Speaker
HK Audio Linear 5 115 FA Active 15 Inch 1000W 2-Way Speaker
As a stand-alone speaker with 1,000 watts of amp power, the 15/1 full-range mid/high unit is the loudest reference in its class due to its high efficiency. Like the LINEAR 5 112 FA, it is equipped with an asymmetrical horn for optimum dispersion, allowing it to provide a wide dispersion at the front while directing the sound more strongly in the back for a greater range. With a sound pressure of 137 dB and the high cabinet volume, it is the most powerful speaker in its class and also delivers excellent sound characteristics. Suitable for DJs, bands, weddings or group celebrations - there is no challenge that the LINEAR 5 115 FA cannot meet.
Technical Specifications
Max. SPL @ 10% THD
128 dB half space (58 Hz - 12 kHz averaged)
Max. SPL peak @ 10 % THD
137 dB half space
Frequency response +/-3 dB
60 Hz - 17 kHz
Frequency response -10 dB
50 Hz - 20 kHz
Power amp output (peak power)
1000 W
Amp type
Class D - biamped
Active protective circuits
Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker
1x 15ā, 3ā voice coil
HF driver
1ā, 1.75ā voice coil
Horn directivity
60-90 (asymmetrical) x 55 CD-Horn, rotatable
Active crossover frequency
1.65 kHz, 24 dB/Oct.
Analog inputs
2x XLR combo balanced
Analog outputs
2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity
+4 dBu @ Gain center-notched / L5 System Level
Sensitivity switch
Line/Mic Input A
Filter presets
EQ switch: Small Venue/High Power
Mains connector
1x IEC socket with V-Lock cord retainer
Power consumption
3 A / 230 V nominal according to EN 60065
Pole mount
DuoTilt 3/7
Rigging points
4x M8 (AP-8)
Carrying handles
2x MultiGrip
Housing
Hybrid (birch multiplex/MDF)
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
44.9 x 70.8 x 45 cm 17-43/64 x 27-7/8 x 17-23/32ā
Weight
30.7 kg / 67.7 lbs
