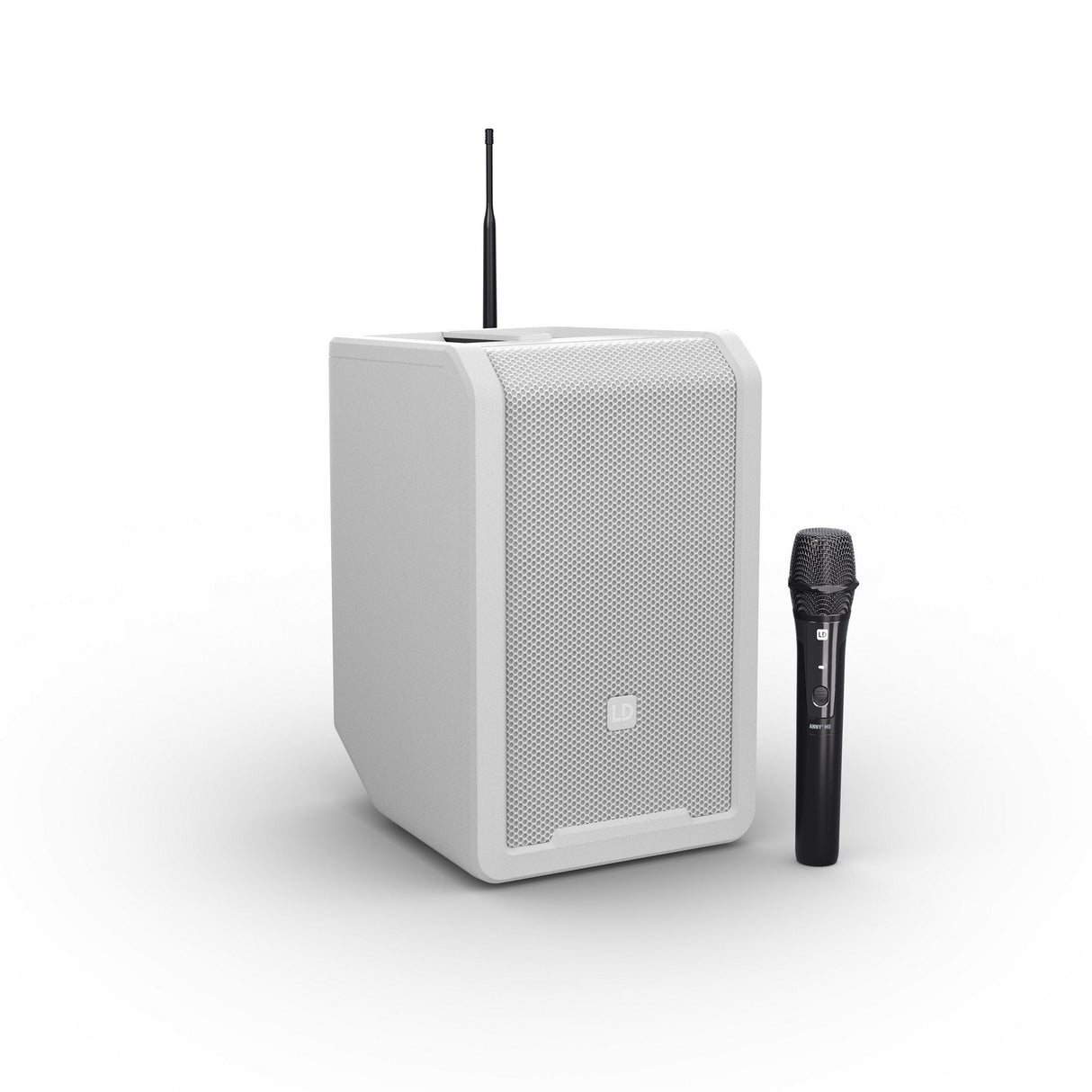

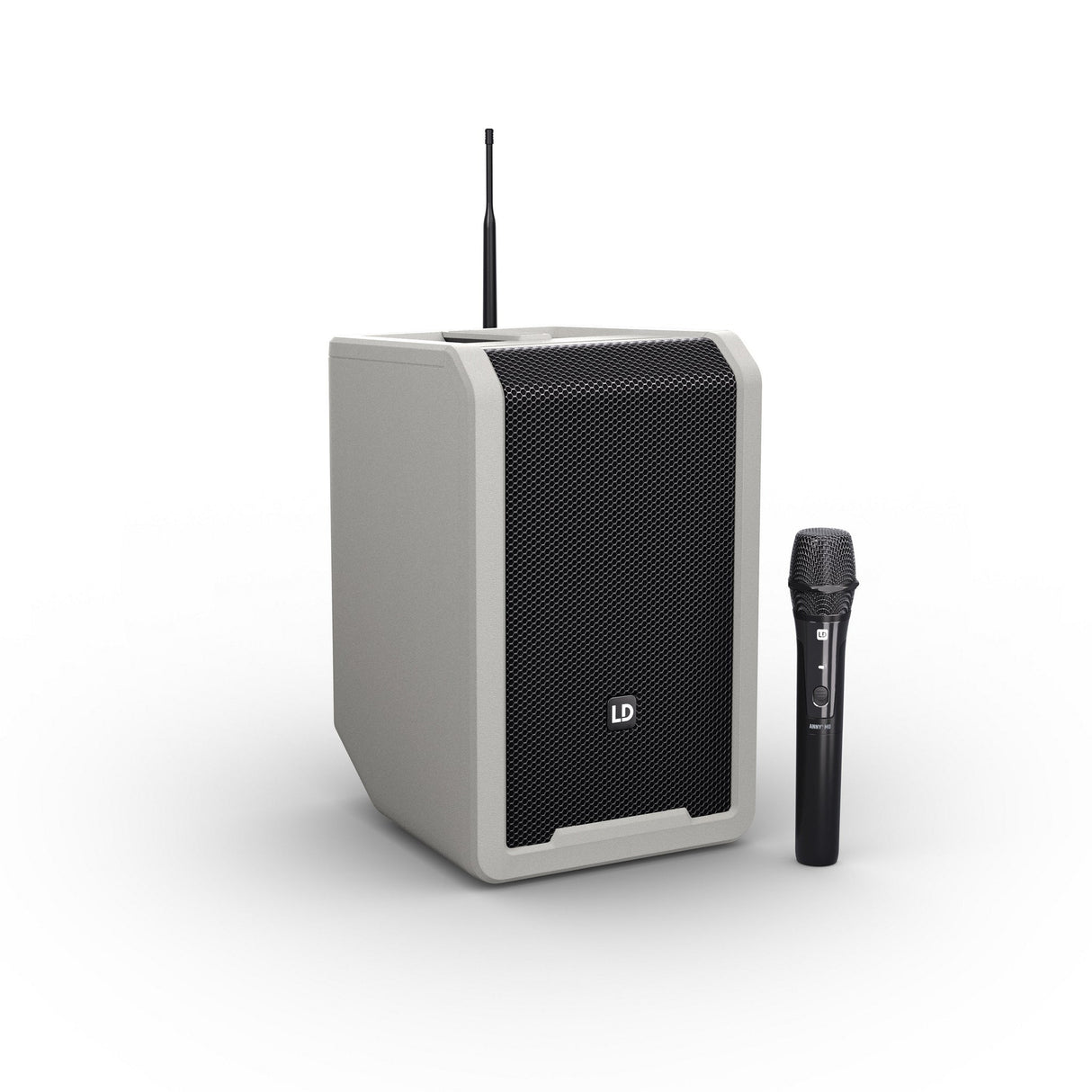

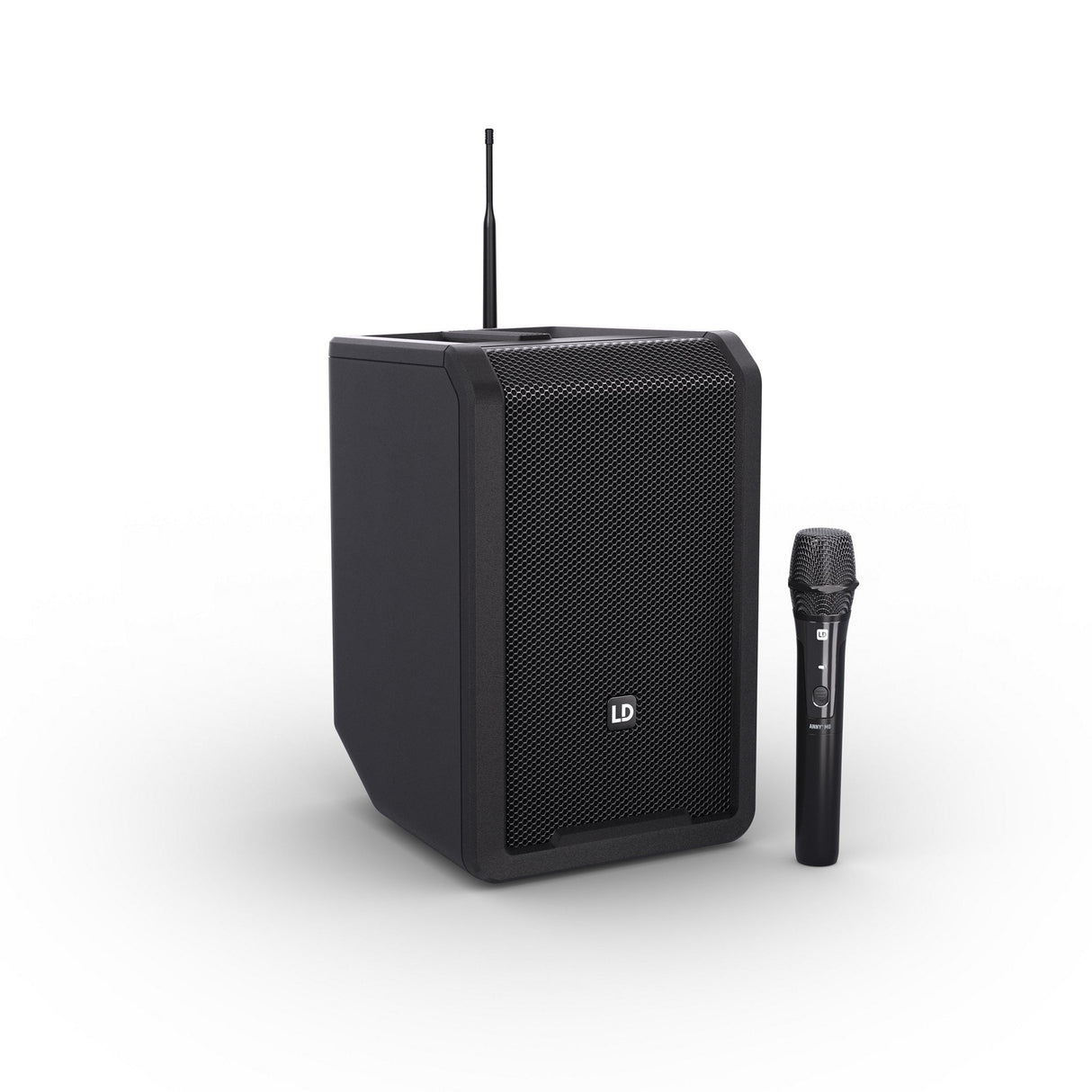

LD Systems ANNY 8 HHD B4.7 Portable Battery-Powered Bluetooth PA Loudspeaker with Handheld Microphone - Black

LD Systems ANNY 8 HHD B4.7 Portable Battery-Powered Bluetooth PA Loudspeaker with Handheld Microphone

The LD Systems ANNY 8 HHD B4.7 USA Version is a versatile and portable battery-powered PA speaker system with Bluetooth® capability. It delivers powerful audio performance with up to 160 watts peak output, ensuring excellent sound quality across a wide frequency range. Designed for live performances, presentations, and events, this system comes equipped with an 8" custom-made woofer and a constant directivity horn for clear, well-defined sound reproduction. The integrated 6-channel mixer with system presets allows for easy control and fine-tuning, while the reverb and delay effects enhance vocal performances and sound quality.

Perfect for mobile applications, the ANNY 8 HHD B4.7 offers flexible connectivity options with Bluetooth 5.0, RCA, XLR, and combo jack inputs. The system is powered by a long-lasting rechargeable Li-Ion battery, providing up to 11 hours of continuous operation at mid-volume. With its rugged ABS plastic housing and bass reflex construction, it is built to withstand demanding environments, whether on stage or in outdoor settings. Additionally, the system includes a wireless handheld microphone and receiver module, both designed for seamless UHF transmission within the 470-490 MHz frequency range, ensuring interference-free audio with 12 selectable channels.

Key Features

• Battery-powered Bluetooth® PA speaker with mixer and effects
• 8" custom-made woofer and constant directivity horn for clear sound
• 6-channel mixer with system presets and effects (reverb, delay)
• Flexible connectivity: Bluetooth 5.0, XLR, RCA, 6.3 mm combo inputs
• Rugged ABS plastic housing with bass reflex construction
• Rechargeable Li-Ion battery with up to 11 hours of operation (ECO mode)
• Wireless handheld microphone and receiver with UHF transmission

Technical Specifications

Product Type
Battery-powered PA speaker
Type
Set (1x ANNY 8, 1x receiver, 1x handheld microphone)
Frequency Range
470 - 490 MHz
Weight
9.27 kg
LDANNY8
LD Systems ANNY® 8 HHD B4.7 (USA Version) Portable battery-powered Bluetooth® PA loudspeaker with mixer, Stage Black
Product Type
Battery-powered PA speaker
Type
Powered
Color
Stage black
System Output (RMS)
80 W
System Output (Peak)
160 W
Max. SPL Average (Sine burst)
110 dB
Max. SPL Peak (Sine burst)
117 dB
Frequency Response (-10 dB)
53 - 20,000 Hz
Crossover Frequency
1800 Hz
Dispersion (H x V)
120° x 60°
Width
249 mm
Depth
282 mm
Total Height
390 mm
Features
3-band EQ, 6-channel mixer with system presets, Effects (reverb and delay), Priority/ducking mode, TWS, USB-C port for mobile device charging
Woofer Dimensions
8" / 203 mm
Woofer Magnet
Ferrite
Woofer Brand
Custom-made
Woofer Voice Coil
1.5" / 38 mm
Controls
Effect, Input 1 Mic/Line switch, Input 1 volume, Input 2 Mic/Line switch, Input 2 volume, Input 3+4 volume, Input 5+6 (Bluetooth) volume, Main volume/menu navigation, Power
Indicators
Battery status, multifunction LC display
Cabinet Construction
Bass Reflex
Housing Material
ABS plastic
Weight
8.8 kg

HF:

Horn
Constant directivity
Tweeter Dimensions
1" / 25 mm
Tweeter Magnet
Ferrite
Tweeter Brand
Custom-made
Tweeter Voice Coil
1" / 25 mm

Amplifier Module (Integrated):

Amplifier
Class D
Protection Circuits
Short circuit, thermal overload
Ambient Temperature (Operating)
0°C - 40°C
Relative Humidity
0 - 80% (non-condensing)
Fuse
T2 AL 250V
Mains Connector
IEC
Operating Voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power Consumption
150 W
Physical Inputs
5
Physical Input Connectors
2 x 6.3 mm / XLR combo, 2 x RCA, 3.5 mm jack
Mix Output
1
Mix Output Connector
XLR male
Bluetooth Standard
5.0
Bluetooth Audio Decoder
AAC, SBC

Rechargeable Battery:

Rechargeable Batteries
14.8V / 5Ah
Battery Technology
Li-Ion rechargeable battery
Indicator Battery
4-segment LED
Battery Life (Full Volume)
3.5 hours
Battery Life (ECO, Mid Volume)
11 hours
Charging Time (80%, No Signal)
3 hours
Charging Time (Full Recharge)
5 hours
