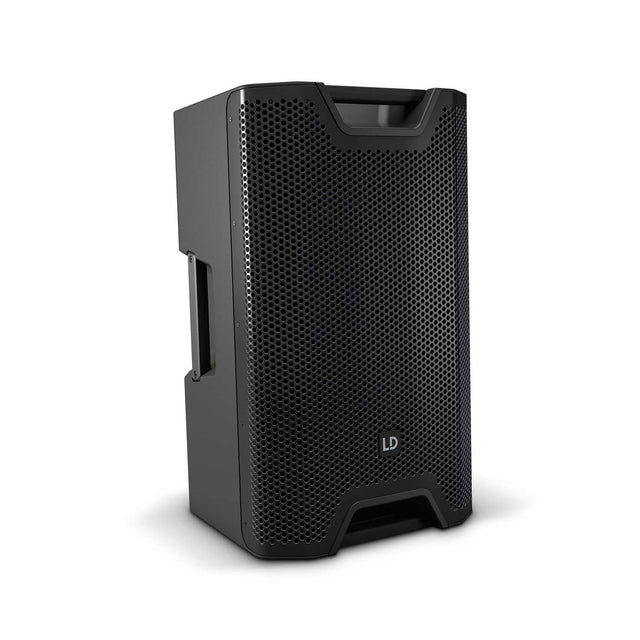

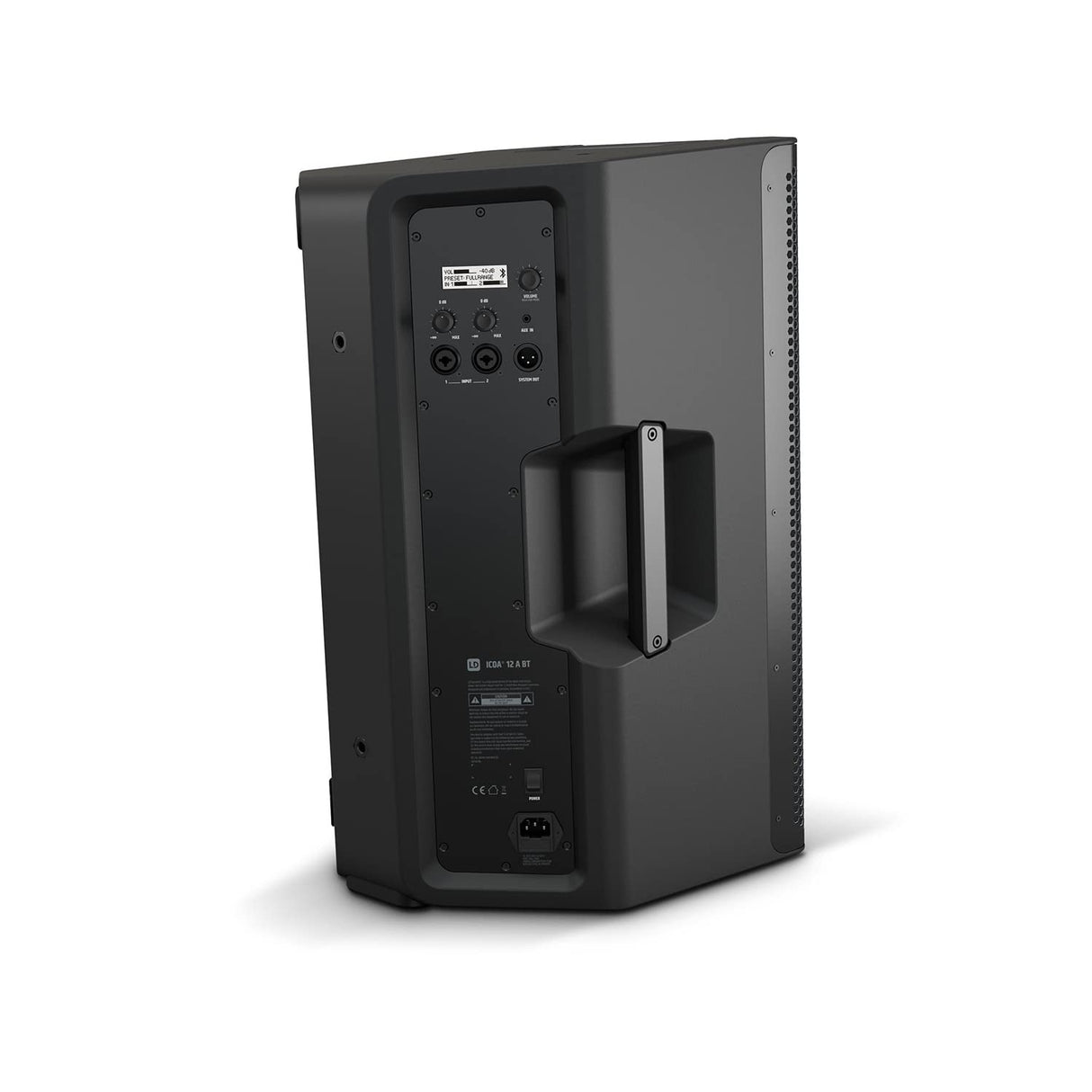

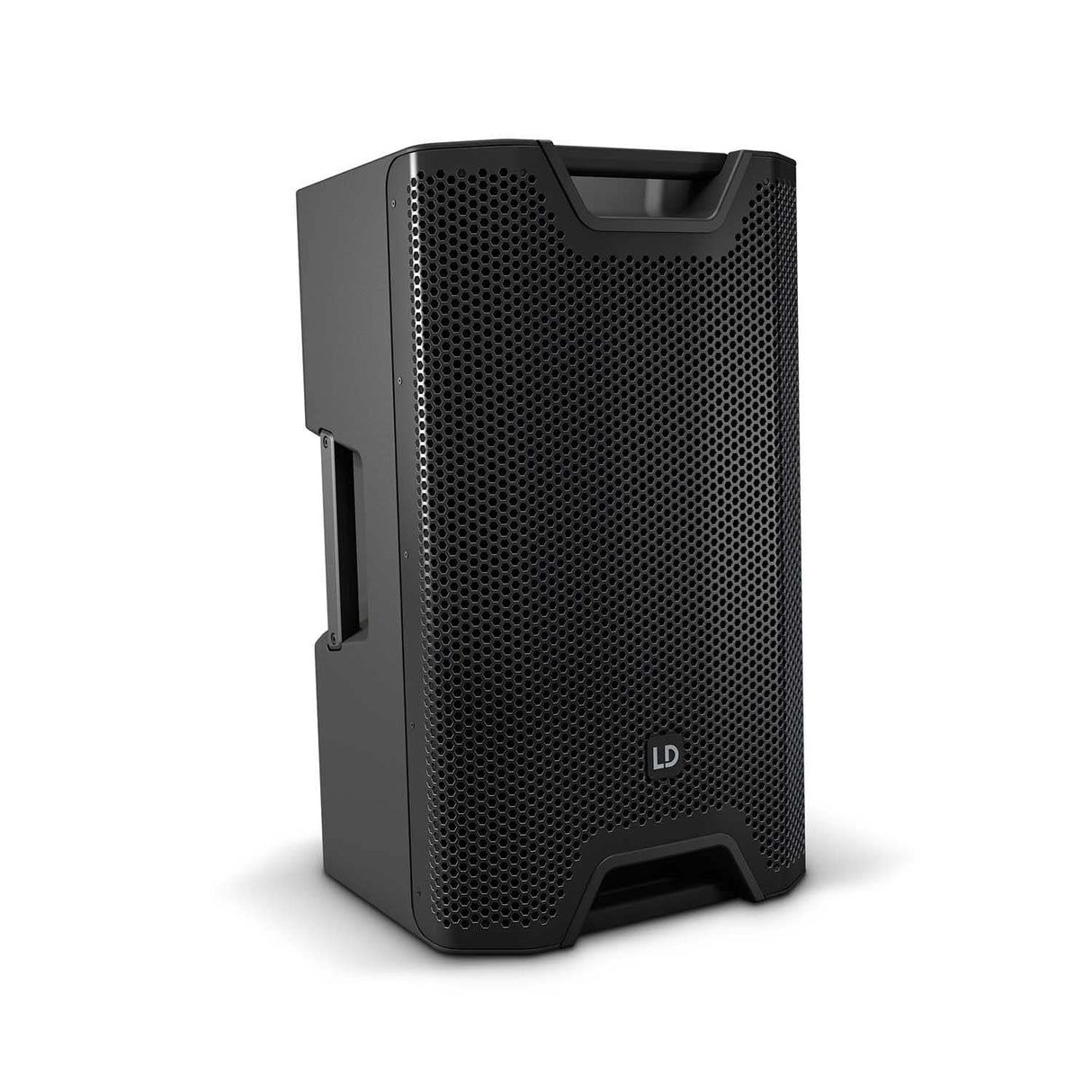

LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker

The LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker is engineered to deliver exceptional sound quality with impressive low frequencies. As a versatile, full-range loudspeaker, the ICOA 12 A stands out in its category, thanks to its innovative features. The coaxial design, combined with a rotating, BEM-optimized CD horn, and meticulously calibrated DynX DSP presets, makes this aktive speaker incredibly adaptable. Musicians, bands, performers, and even DJs can rely on its powerful bass output, which eliminates the need for an additional subwoofer. Whether used vertically as a satellite, horizontally in suspended systems, or as a floor monitor, the ICOA 12 A consistently impresses. The class-D power amplifier ensures robust performance, delivering a maximum SPL of 126 dB and 300 W RMS outputs.

This speaker is engineered to be user-friendly and highly functional, featuring two line/mic input channels with individual gain controllers and a mono mix output. Additionally, the Bluetooth streaming option further extends its utility. Its shock-resistant front grille provides excellent protection, while the ergonomic aluminum grips make handling and transport effortless.

With its superior design, extensive features, and outstanding sound quality, the LD Systems ICOA 12 A is ideal for various professional audio applications, from live performances to dance schools.

Key Features

• All-rounder for full-range, satellite, and monitor applications
• Delivers 126 dB max. SPL and 1200 W peak power
• Flexible vertical and horizontal usage with a coaxial design and rotating, BEM-optimizer CD horn (Patent Pending)
• Exceptional bass from the horn-loaded woofer
• DynX DSP with four presets, a 3-band EQ, and delay function
• Two line/mic input channels with individual gain controls, mono mix output, and Bluetooth streaming with BT model
• 36 mm dual tilt stand attachment with 0 and 5 tilt angle and a 55 monitor angle
• Durable, shock-resistant grille for superior speaker protection
• Four ergonomic aluminum grips with rubber surfaces for ease of transport
• Extensive optional accessories for versatile installation and transport

Specifications

• Product type: PA loudspeaker
• Type: Actives
• Low/mid driver dimensions: 12 inches
• Woofer size: 304.8 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1 inch
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• HF driver voice coil: 1 inch
• HF Driver Voice Coil: 25.4 mm
• Amplifier: Class D
• Dispersion (H x V): 90 x 50
• RMS: 300 W
• Peak power: 1200 W
• Freq. response: 50 - 20000 Hz
• Crossover Freq.: 2 kHz
• Max. SPL (peak): 126 dB
• Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
• Controls: 2 x gain, On/off switch, Rotary/push encoder
• Indicators: LC display
• Mic/line inputs: 2
• Mic-/Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
• Line inputs: 1
• Line input connectors: 3.5 mm TRS
• Line outputs: 1
• Line output connectors: XLR
• Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
• Power consumption: 150 W
• Ambient temperature (in operation): 0 - 40 C
• Relative Humidity: < 80 %, not condensing
• Fuse: T4AL 250 V
• Cabinet material: Polypropylene
• Cabinet construction: Bass Reflex
• Tripod flange: 32 F, 36mm flange, 5
• Monitor angle: 55 degrees
• Width: 375 mm
• Height: 635 mm
• Depth: 396 mm
• Weight: 19.95 kg

Package Contents

• Power cord
