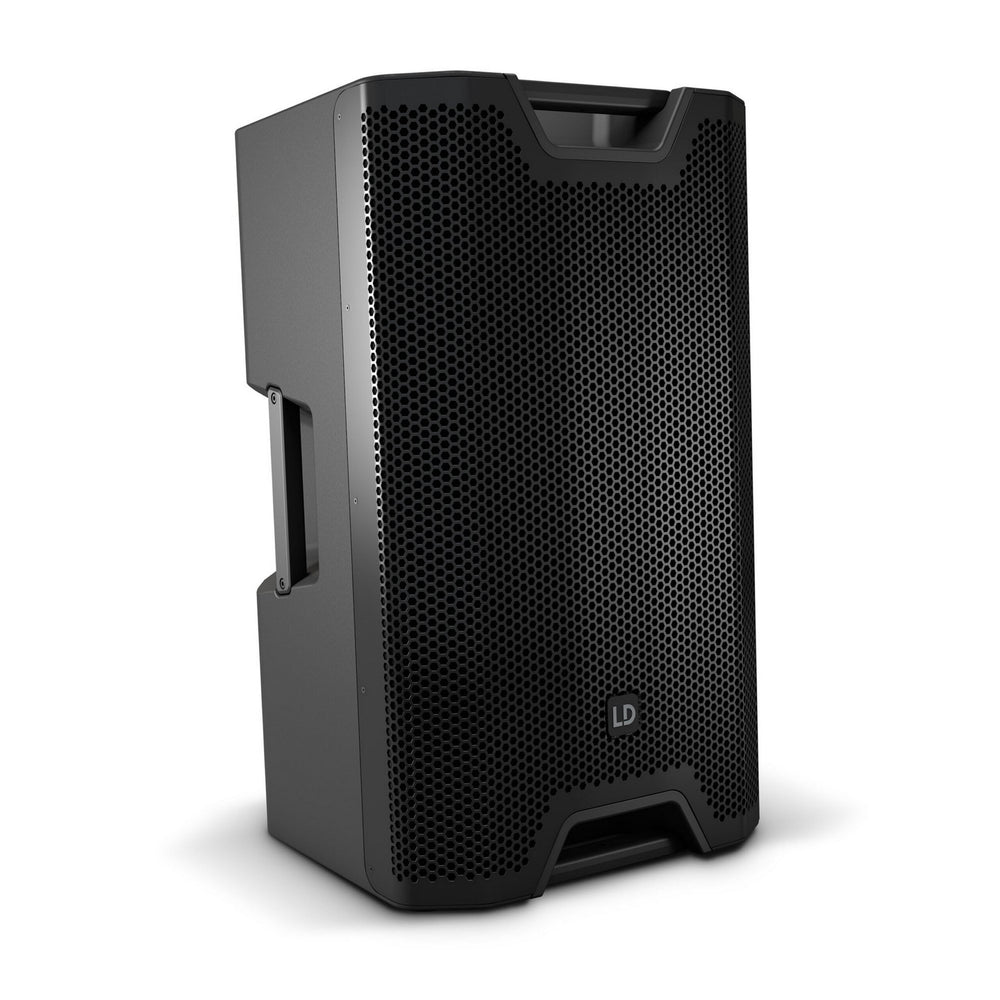

LD Systems ICOA 15 15 Inch Passive Coaxial PA Loudspeaker, Black

LD Systems | SKU: LDSYS-LDSICOA15
$43999

Estimated Shipping Widget will be displayed here!

Condition: New


LD Systems ICOA 15 15 Inch Passive Coaxial PA Loudspeaker, Black

This 15" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible. The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.

Key Features

  • A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
  • Passive loudspeaker with 125 dB max. SPL and 1000 W peak power
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • 36 mm dual tilt stand attachment with 0 and 5 tilt angle, 55 monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal speaker protection
  • Four aluminium grips with ergonomic, rubber surface
  • Extensive range of optionally available accessories for installation and transport

Technical Specifications

Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
15"
Woofer size
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1"
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1"
HF Driver Voice Coil
25.4 mm
Dispersion (H x V)
90 x 50
Load rating (RMS)
250 W
Peak power
1000 W
Frequency response
48 - 20000 Hz
Crossover frequency
2000 Hz
SPL (1W/1m)
95 dB
Max. SPL
125 dB
Impedance
8 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0, 5) , 6 x M10 flying points
Monitor angle
55
Width
416 mm
Height
695 mm
Depth
415 mm
Weight
24,7 kg
