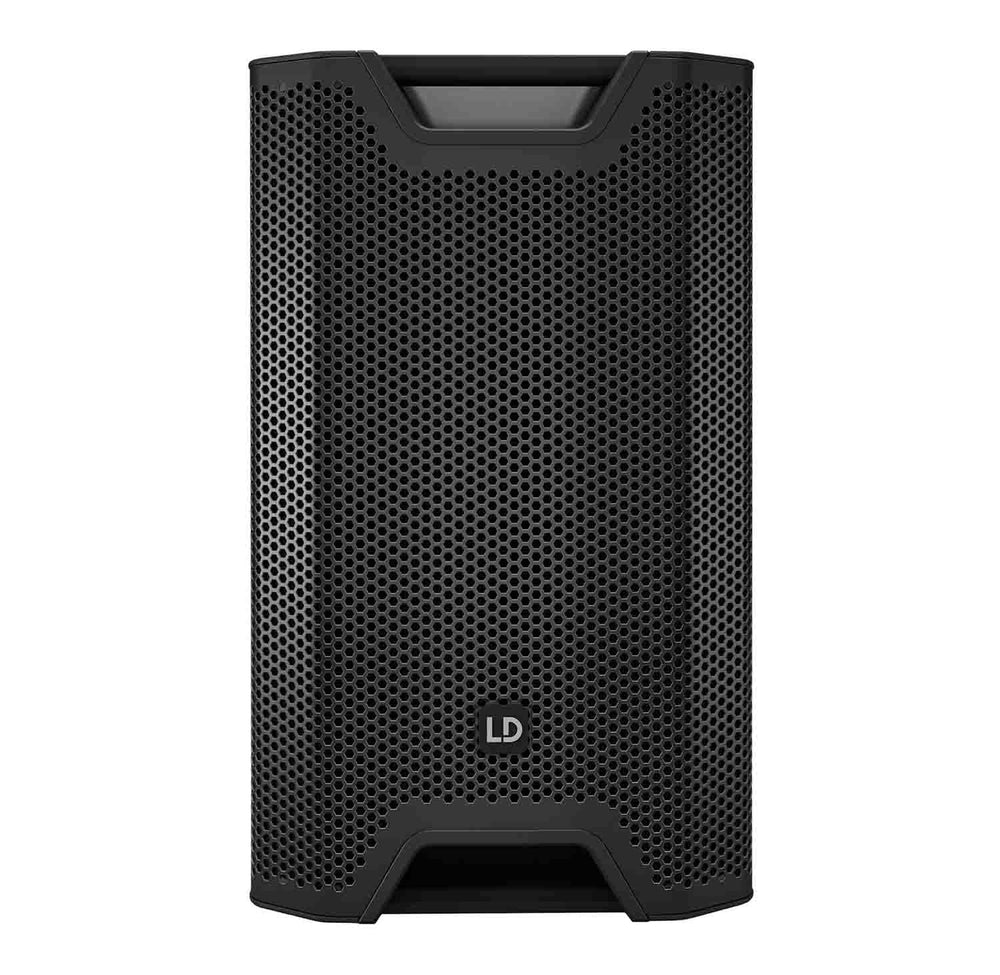

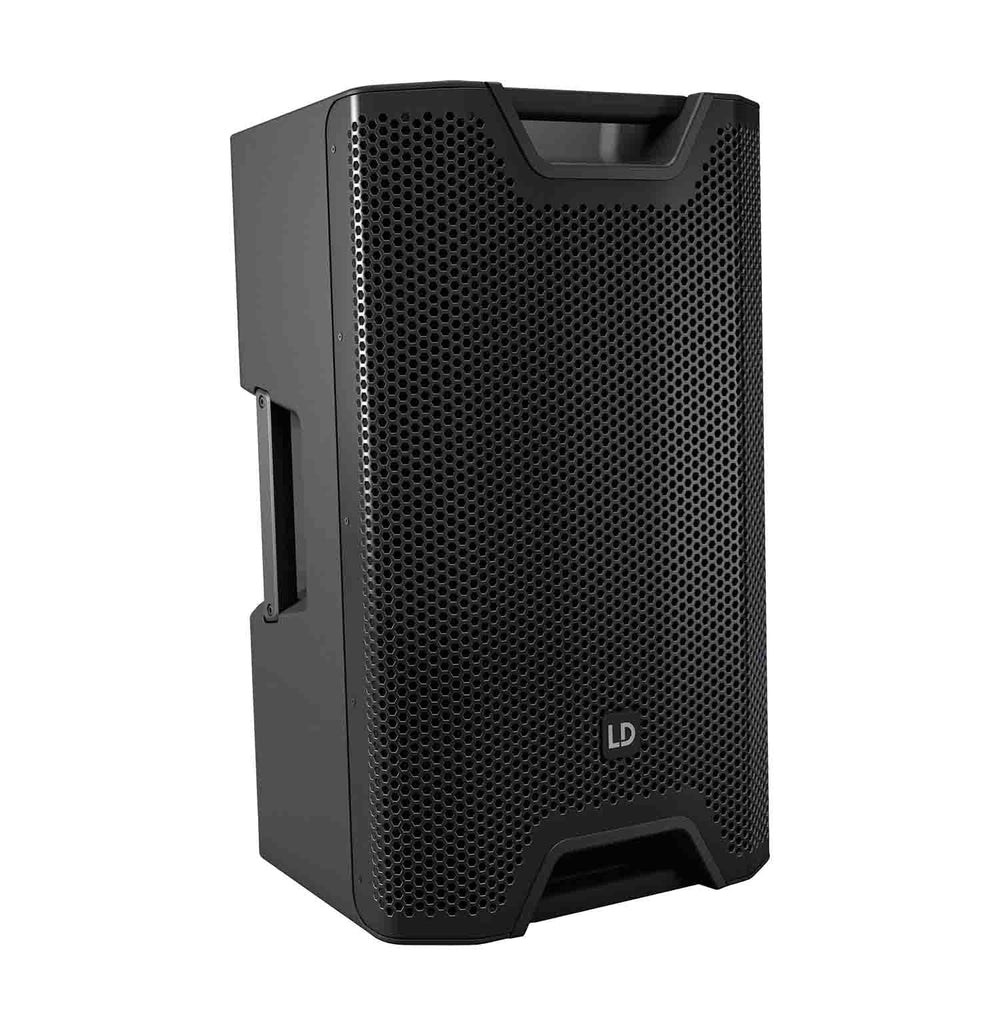

LD Systems ICOA 15 A BT 15 Inch Active Coaxial PA Speaker with Bluetooth

LD Systems ICOA 15 A BT 15 Inch Active Coaxial PA Speaker with Bluetooth

The LD Systems ICOA 15 A BT 15 Inch Active Coaxial PA Speaker with Bluetooth is a versatile and powerful speaker designed for a wide range of applications. This full-range loudspeaker delivers impressive sound quality, offering deep bass performance even at low frequencies. Ideal for musicians, bands, DJs, entertainers, and dance schools, the ICOA 15 A BT excels in various settings thanks to its advanced features and robust design. The Bluetooth capability allows for seamless streaming, making it a perfect choice for modern audio setups.

With its coaxial construction, rotating BEM-optimized CD horn, and meticulously calibrated DynX DSP presets, this speaker provides unparalleled flexibility. Whether used vertically as a satellite, horizontally in suspended systems, or as a floor monitor, its adaptable form ensures optimal sound delivery. The high-efficiency class-D amplifier produces a maximum SPL of 128 dB and 300 W RMS, ensuring powerful performance suitable for both small and large venues.

The ICOA 15 A BT's robust build, which includes a shock-resistant front grille and sturdy aluminum grips, guarantees longevity and ease of transport. The speaker's exceptional bass response eliminates the need for an additional subwoofer, making it a practical choice for DJs and live performers alike. With user-friendly controls and extensive input options, this speaker is tailored for those who demand high-quality sound and flexibility in their audio equipment.

Key Features

• Versatile all-rounder for full-range, satellite, and monitor applications
• 128 dB max. SPL and 1200 W peak power
• Adaptable vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent Pending)
• Outstanding bass performance with horn-loaded woofer
• Advanced DynX DSP with 4 presets, 3-band EQ, and delay function
• Dual line/mic input channels with individual gain controllers plus mono mix output
• Bluetooth streaming for wireless audio playback
• 36 mm dual tilt stand attachment with adjustable tilt angles and sturdy 55 monitor angle
• Durable, shock-resistant front grille for enhanced protection
• Easy transport with 4 ergonomic aluminum grips with rubber surfaces
• Optional accessories available for customized installation and transport solutions

Specifications

• Product type: PA loudspeaker
• Type: Active
• Bluetooth Audio Decoder: Bluetooth 4.0
• Low/mid driver dimensions: 15"
• Woofer size: 381 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1"
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• HF driver voice coil: 1"
• HF Driver Voice Coil: 25.4 mm
• Amplifier: Class D
• Dispersion (H x V): 90 x 50
• RMS: 300 W
• Peak power: 1200 W
• Freq. response: 48 - 20000 Hz
• Crossover Freq. kHz: 2 kHz
• Max. SPL (peak): 128 dB
• Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
• Controls: 2 x gain, On / off switch, Rotary/push encoder
• Indicators: LC display
• Mic/line inputs: 2
• Mic/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
• Line inputs: 1
• Line input connectors: 3.5 mm TRS
• Line outputs: 1
• Line output connectors: XLR
• Operating voltage: SMPS, 100 V - 240 V AC / 50 - 60 Hz
• Power consumption: 150 W
• Ambient temperature (in operation): 0 - 40 C
• Relative Humidity: < 80 %, not condensing
• Fuse: T4AL 250 V
• Cabinet material: Polypropylene
• Cabinet construction: Bass Reflex
• Tripod flange: 36 mm flange, 5
• Monitor angle: 55
• Width: 416 mm
• Height: 695 mm
• Depth: 415 mm
• Features: Bluetooth
• Weight: 24.3 kg

Package Contents

• LD Systems ICOA 15 A BT 15 Inch Active Coaxial PA Speaker with Bluetooth
