Description

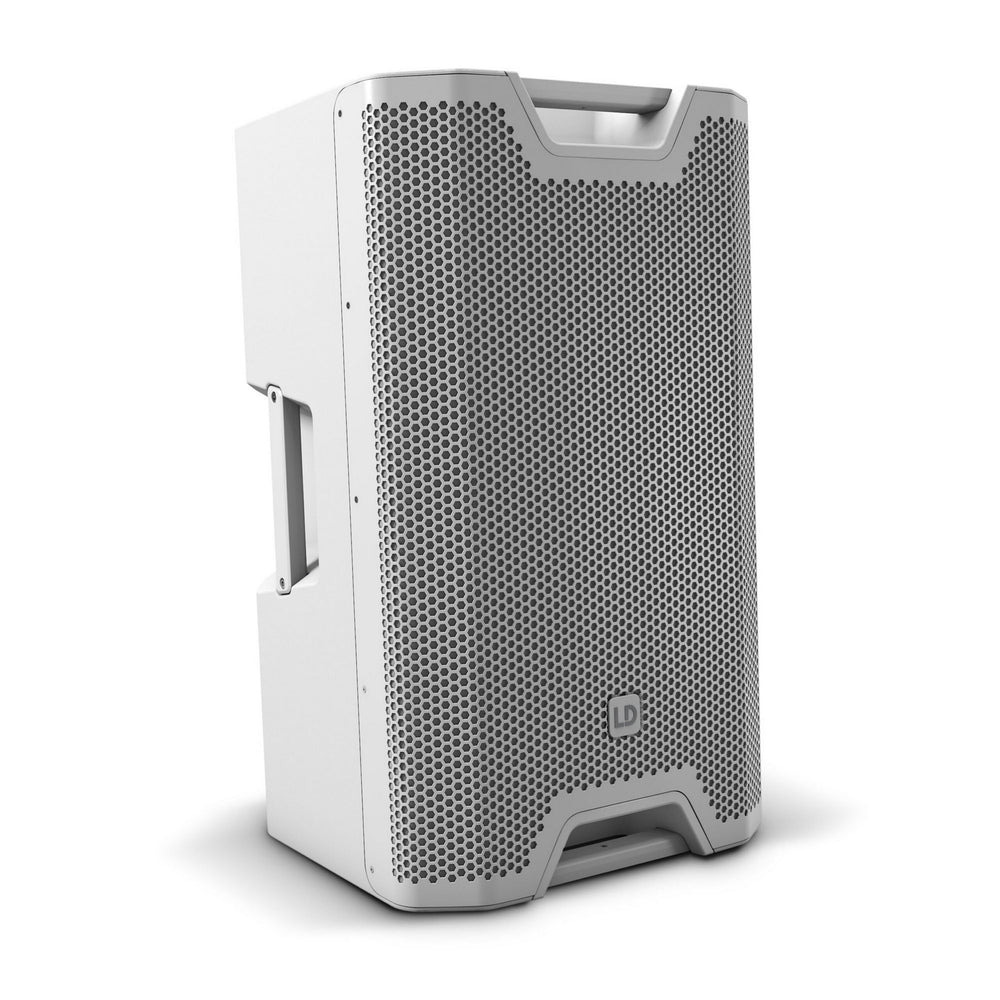

LD Systems ICOA 15 W 15 Inch Passive Coaxial PA Loudspeaker, White
The LD Systems ICOA 15 W is a 15-inch passive coaxial PA loudspeaker that stands out for its impressive sound performance, even at low frequencies. Housed in a sleek white design, this versatile speaker is ideal for a range of audio applications—from dance schools and bands to DJs and fixed installations. Boasting a coaxial structure and a rotating, BEM-optimized CD horn, the ICOA 15 offers unparalleled flexibility and adaptability, making it perfect for full-range, satellite, and monitor setups.
The horn-loaded woofer ensures outstanding bass reproduction, making it suitable for various environments without the need for a subwoofer. Additionally, with 125 dB maximum SPL and 1000 W peak power, this loudspeaker delivers both power and clarity. DJs can especially benefit from its robust bass response, and its ergonomic design makes transportation and installation a breeze.
With features such as a shock-resistant front grille, ergonomic aluminium grips, and numerous mounting options, the ICOA 15 is as durable as it is versatile. Its efficient cabinet construction and smart design considerations ensure longevity while delivering top-notch audio performance.
Key Features
- A genuine all-rounder for full-range, satellite, and monitor applications as well as fixed installations
- Passive loudspeaker with 125 dB max. SPL and 1000 W peak power
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending)
- Horn-loaded woofer
- 36 mm dual tilt stand attachment with 0 and 5 tilt angle, 55 monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal speaker protection
- Four aluminium grips with ergonomic, rubber surface
- Extensive range of optional accessories for installation and transport
Specifications
- Product type: PA loudspeaker
- Type: Passive
- Low/mid driver dimensions: 15"
- Woofer size: 381 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1"
- HF Driver Size: 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 1"
- HF Driver Voice Coil: 25.4 mm
- Dispersion (H x V): 90 x 50
- Load rating (RMS): 250 W
- Peak power: 1000 W
- Freq. response: 48 - 20000 Hz
- Crossover Freq.: 2000 Hz
- SPL (1W/1m): 95 dB
- Max. SPL: 125 dB
- Impedance: 8 Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Speakon compatible
- Loudspeaker outputs: 1
- Speaker output connections: Speakon compatible
- Cabinet material: Polypropylene
- Cabinet construction: Bass Reflex
- Mounting: 36mm flange (0, 5), 6 x M10 flying points
- Monitor angle: 55
- Width: 416 mm
- Height: 695 mm
- Depth: 415 mm
- Weight: 24.7 kg
Package Contents
- 1 x LD Systems ICOA 15 W 15 Inch Passive Coaxial PA Loudspeaker, White
