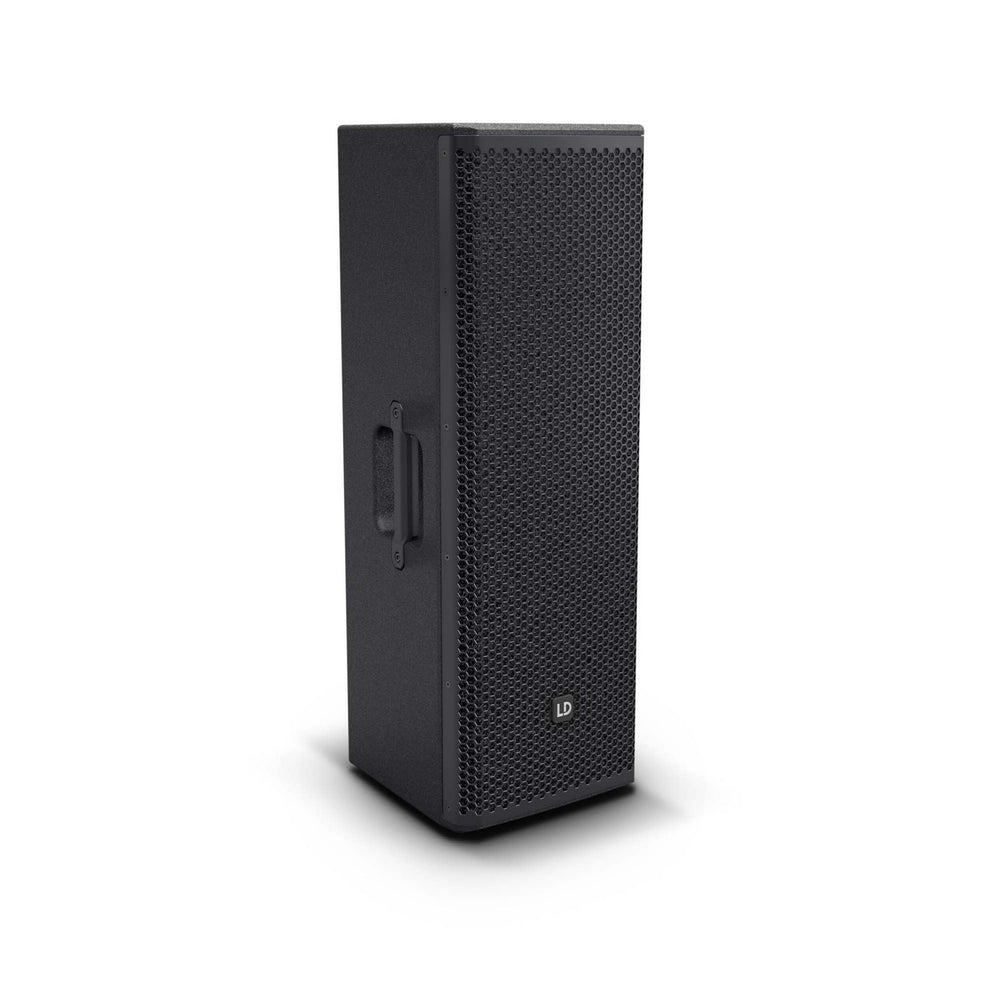

LD Systems STINGER 28 A G3 Active 2 x 8 Inch 2-Way Bass-Reflex PA Loudspeaker

LD Systems STINGER 28 A G3 Active 2 x 8 Inch 2-Way Bass-Reflex PA Loudspeaker

The LD Systems STINGER 28 A G3 is the ultimate solution for those who demand high-quality, reliable sound performance. This 2-way active bass-reflex PA loudspeaker is engineered for long-term reliability, making it ideal for various applications such as full-range speaker, satellite, or monitor. Its rugged bass reflex housing and user-friendly presets make it a versatile choice for both small-scale gigs and high-demand professional setups. The powerful 500-watt continuous output, driven by a highly efficient Class-D amplifier, ensures that every performance is delivered with precision and clarity.

At the heart of the STINGER 28 A G3 are two specially developed 8" woofers and a BMS tweeter driver. These components provide a powerful bass response and refreshingly natural treble tones. The tweeter's wave guide has been meticulously developed using the Boundary Element Method (BEM) to reduce reflections and side lobe levels, ensuring controlled and homogeneous dispersion. This means that your sound reaches the audience with minimal distortion and optimal clarity, even at maximum volumes.

What sets the STINGER 28 A G3 apart is its DynX DSP technology, which guarantees distortion-free sound at all volume levels. With practical presets for fast, user-specific frequency tuning, you can tailor the sound to fit any environment quickly. This loudspeaker is built to last with its 12mm plywood housing, polyurea coating, and shock-resistant front grille, making it durable enough to withstand the rigors of the road and frequent setups and teardowns.

Key Features

• Active 2 x 8" 2-way bass-reflex PA speaker
• 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
• Perfect all-rounder for full-range, satellite and monitor applications
• Practical presets for fast and user-specific freq. tuning
• Homogeneous dispersion pattern thanks to a BEM-optimized tweeter wave guide
• Two 8" custom woofers and BMS tweeter driver
• Distortion-free sound at even maximum volumes, thanks to DynX DSP technology
• 2 line/mic input channels with individual gain controllers plus mono mix output
• Birch plywood housing with ultra-robust polyurea coating and M10 rigging points
• Shock-resistant front grille for optimum speaker protection
• 36 mm dual tilt stand attachment with 0 and 5 tilt angle
• Extensive and smart accessories for installation and transport

Specifications

• Product type: PA loudspeaker
• Type: Active
• Low/mid driver dimensions: 2 x 8”
• Woofer size: 2 x 203.2 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2”
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1”
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: BMS
• HF driver voice coil: 1”
• Amplifier: Class D
• Dispersion (H x V): 90 x 50
• RMS: 500 W
• Peak power: 1000 W
• Freq. response: 58 - 20000 Hz
• Max. SPL (peak): 131 dB
• Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
• Input sensitivity: -5 dBu
• Controls: 2 x gain, 2 x Mic/Line, Mode
• Indicators: Limit, Mode, On, Protect (protection circuit engaged), Signal
• Line inputs: 2
• Line input connectors: 6.3 mm jack, XLR
• Line outputs: 1
• Line output connectors: XLR
• Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
• Operating Temperature: 0 - 40 C
• Relative Humidity: < 80% (non-condensing)
• Cabinet material: 12 mm Plywood
• Cabinet surface: Polyurea
• Cabinet construction: Bass Reflex
• Width: 270 mm
• Height: 756 mm
• Depth: 290 mm
• Weight: 20.5 kg

Package Contents

• LD Systems STINGER 28 A G3 Active 2 x 8 Inch 2-Way Bass-Reflex PA Loudspeaker
