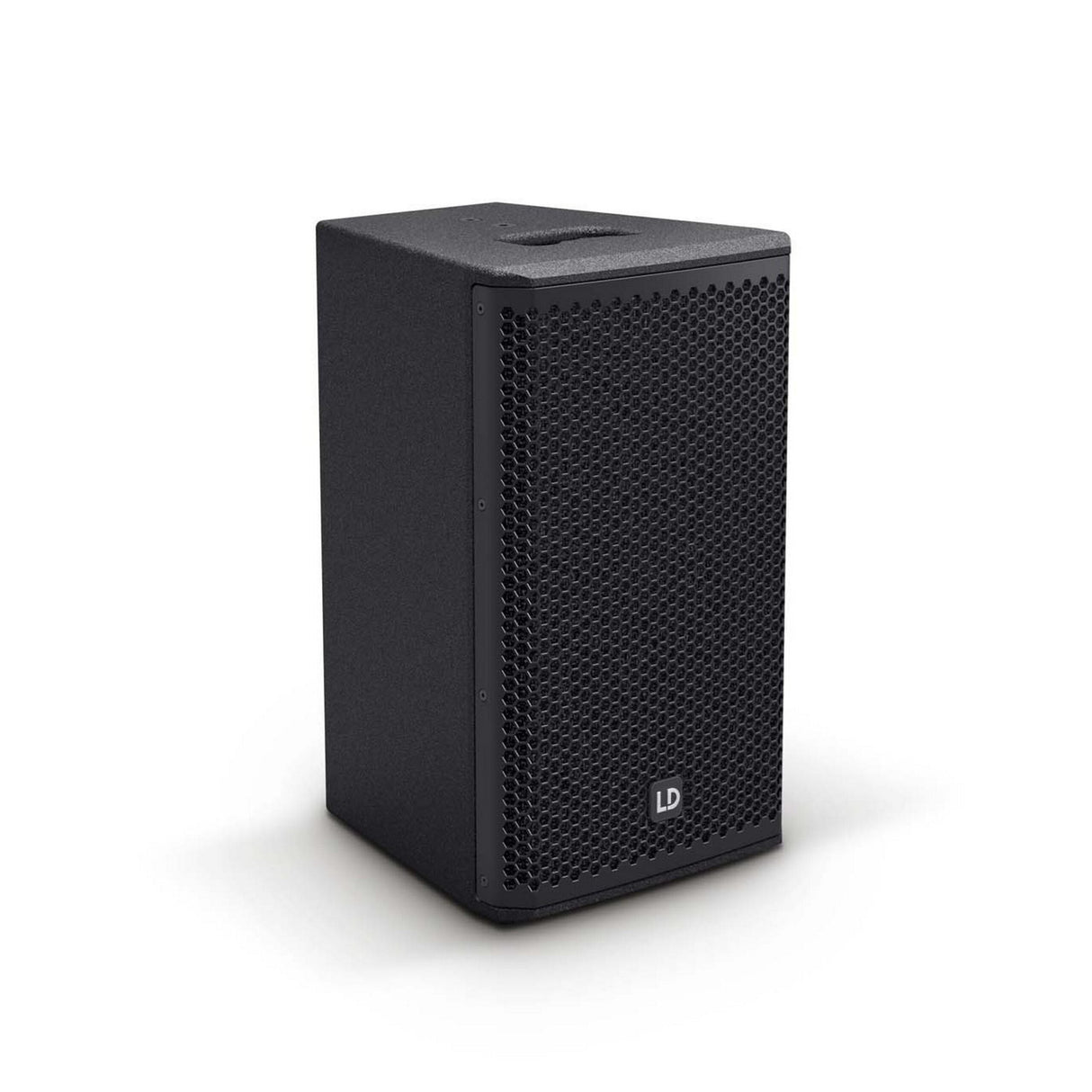

LD Systems STINGER 8 A G3 Active 8 Inch 2-Way Bass-Reflex PA Loudspeaker

LD Systems STINGER 8 A G3 Active 8 Inch 2-Way Bass-Reflex PA Loudspeaker

Engineered for rock-solid reliability day in, day out, the LD Systems STINGER 8 A G3 is an active two-way PA loudspeaker that delivers professional-grade performance. This versatile speaker is designed with a multi-purpose bass reflex construction, making it suitable for a variety of applications, including full-range, satellite, and floor monitor setups. With carefully contoured, user-friendly presets, the STINGER 8 A G3 ensures optimal audio performance in any situation.

Powered by a high-efficiency Class D amplifier, this loudspeaker boasts a robust 300 watts RMS output, driving a custom-designed 8-inch woofer and a BMS compression driver. This combination delivers punchy low-end frequencies and smooth, crisp highs. The HF waveguide, designed using BEM (Boundary Element Method) numerical modeling, ensures uniform coverage by reducing floor and ceiling reflections, effectively eliminating side lobes. The inclusion of LD Systems’ proprietary DynX DSP technology guarantees maximum clarity and punch at all times, with features such as crossover and multiband limiter functions for accurate time alignment and distortion-free audio.

This speaker is built to be a reliable workhorse in any environment. The enclosure is crafted from rigid birch plywood and coated with ultra-tough polyurea, offering extraordinary strength and durability. Additionally, the steel front grille, Dual-Tilt pole receptacle, multiple suspension points, and ergonomic handles make the STINGER 8 A G3 an excellent choice for both live performances and installed applications. A wide selection of accessories further enhances its utility in various professional sound reinforcement scenarios.

Key Features

• 2-way active 8" bass reflex PA speaker
• High-efficiency 300 watts RMS digital power stage and 129 dB max. SPL
• Multi-purpose design for full-range, satellite, and monitor applications
• Application presets for quick Freq. response contouring
• BEM optimized HF waveguide for uniform coverage
• 8” custom woofer and BMS compression driver
• DynX DSP technology for distortion-free performance
• 2 line/mic input channels with individual gain controls plus mono mix out
• 12 mm birch plywood cabinet with ultra-rugged polyurea finish and M10 suspension points
• Shock-resistant front grille provides maximum speaker protection
• 36 mm Dual-Tilt pole receptacle for 0 or 5-degree mounting angles
• Large selection of smart installation and transport accessories

Specifications

• Product type: PA loudspeaker
• Type: Active
• Low/mid driver dimensions: 8"
• Woofer size: 203.2 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2"
• Woofer voice coil (mm): 50.8 mm
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1"
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: BMS
• HF driver voice coil: 1"
• HF Driver Voice Coil: 25.4 mm
• Amplifier: Class D
• Dispersion (H x V): 90 x 50
• RMS: 300 W
• Peak power: 600 W
• Freq. response: 70 - 20000 Hz
• Max. SPL (peak): 125 dB
• Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
• Input sensitivity: -9 dBu
• Controls: 2 x gain, 2 x Mic/Line, Mode
• Indicators: Limit, Mic, Mode, On, Protect (protection circuit engaged), Signal
• Line inputs: 2
• Line input connectors: 6.3 mm jack, XLR
• Line outputs: 1
• Line output connectors: XLR
• Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching), Switching power supply
• Operating Temperature: 0 - 40 C
• Relative Humidity: < 80% (non-condensing)
• Cabinet material: 12 mm Plywood
• Cabinet surface: Polyurea
• Cabinet construction: Bass Reflex
• Width: 270 mm
• Height: 457 mm
• Depth: 290 mm
• Weight: 10.5 kg

Package Contents

• LD Systems STINGER 8 A G3 Active 8 Inch 2-Way Bass-Reflex PA Loudspeaker
