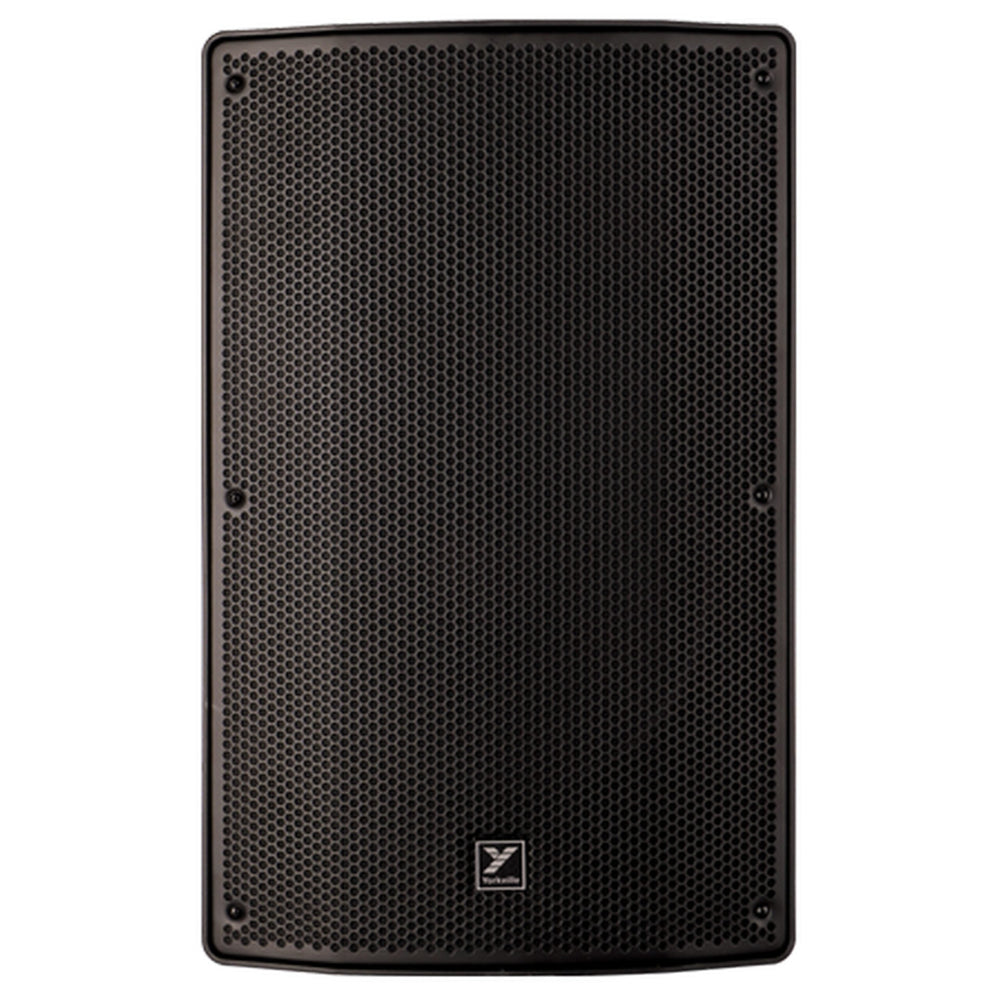

Yorkville YXL15P 2-Way 1000W 15-Inch Powered PA Bluetooth Speaker
Yorkville YXL15P 2-Way 1000W 15-Inch Powered PA Bluetooth Speaker
Yorkville YXL15P 2-Way 1000W 15-Inch Powered PA Bluetooth Speaker
The YXL cabinets use a single driver and 90 x 40-degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
Key Features
- 1000 Watts (Peak) 500 Watts (Program)
- 15-inch woofer with 2.5-inch voice coil
- 3 Channels plus Master level
- 1-inch compression driver
- 90 Degrees x 40 Degrees HF dispersion
- Polypropelene cabinet construction
- Bluetooth streaming
- 3 performance modes (Concert, Club, Monitor)
Technical Specifications
System Type
Active Loudspeaker
Active or Passive
Active
Power Rating (Watts)
500 Watts Program (1000 Watts Peak)
Max SPL (dB)
127dB Continuous
Frequency Response (Hz +/- 3dB)
45 - 16k (Hz +/-3dB)
Dispersion (Degrees H x Degrees V)
90 x 40
Crossover Frequency (Hz)
1.6kHz
HF Horn
Integrated into Baffle
LF Driver(s)
15-inch (2.5-inch voice coil)
LF Power Rating (Watts)
450 Watts Program (900 Watts Peak)
HF Power Amplifier (Watts)
50 Watts Program (100 Watts Peak)
HF Amplifier Type
Class A/B
LF Amplifier Type
Class D
Cooling Scheme
Speed controlled fan
Power Cable
Yes
Power Switch
Yes
Mixer Controls
3 recessed dial controls
Level Controls
x3 Chanels + Master
EQ Controls
Push button select, Concert, Club, Monitor
Limiter
Multiband excursion, RMS, rail
Other Controls / Features
100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Feet
Rubber
Bar Handles
2 x Side / 1 x Back
Flying Hardware
2 (Top), 1 (Pullback)
Optional Flying Hardware
Yes
Enclosure Materials
Polypropelene, Metal grille
Baffle Material
Polypropylene
Grille
Powder Coated Steel with Grille Cloth
Other Details
Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches)
14.75 x 17 x 27.375
Dimensions (DWH xbackW, cm)
37.5 x 43.18 x 70.4
Weight (lbs/kg)
45 / 20.4
