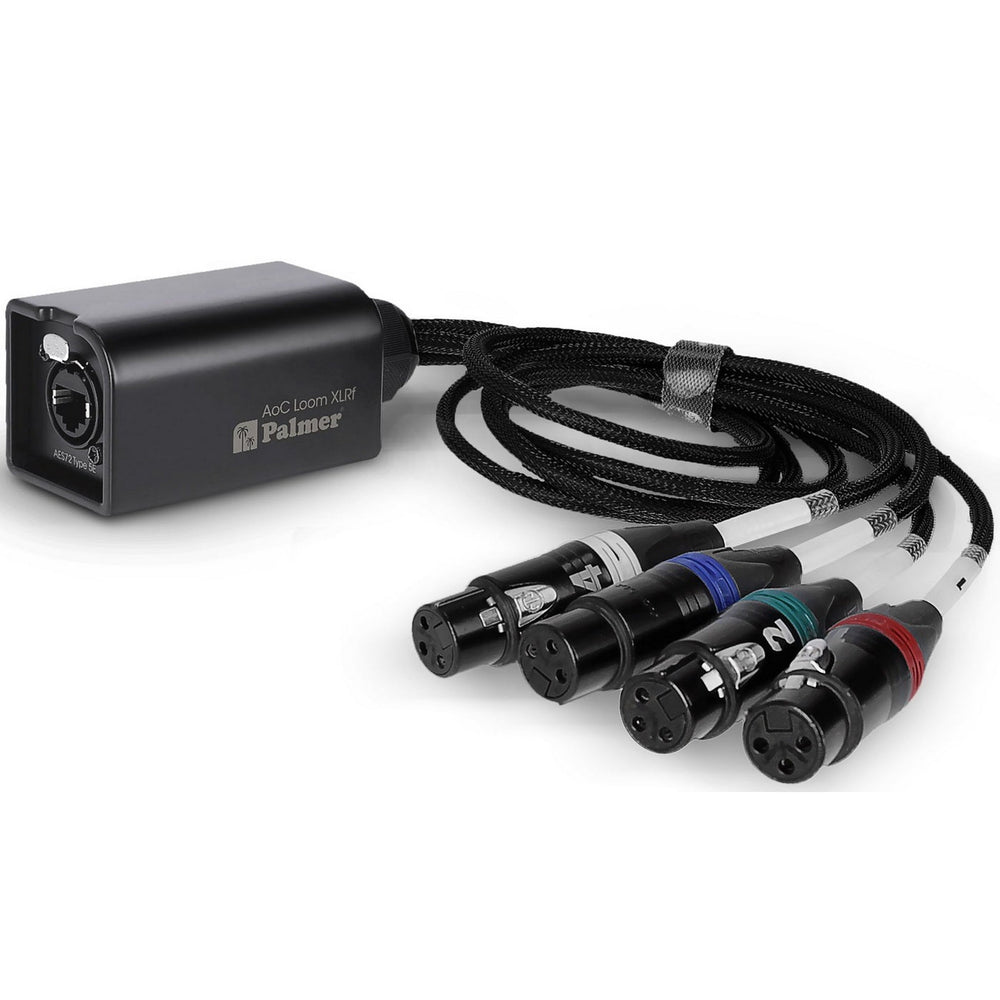

Palmer AoC Loom XLR F Audio over Cat Loom from Ethercon to 4 x XLR Female Multicore Adapter Cable

Palmer | SKU: PALM-AOCLOOMXLRF-PAOCLXLRF
$13999

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


The Palmer AoC Loom XLR Audio over Cat Loom from Ethercon to 4 x XLR functions as a multicore adapter cable, enabling the secure transmission of four distinct analog and balanced audio signals or eight digital AES3 signals through a network cable (cable not provided).

XLR plugs are numbered and color-coded for simple identification, and the Ethercon connection is designed to prevent accidental disconnection.

Beyond audio signals, the P AOC L XLR can transmit DMX or MIDI control signals and 48-volt phantom power through a standard Ethernet cable, making it versatile for various applications like live concerts, studio sessions, press conferences, and other productions.

Equipped with high-quality Neutrik components, a durable aluminum-steel casing, and sturdy mesh cables with a 50 cm splice, the P AOC L XLR ensures reliable signal transmission and longevity in professional environments. Its sleek premium design also adds visual appeal to any setup.

To sum up, the P AOC L XLR is a dependable and enduring device that presents a cost-effective and adaptable solution to traditional 4-channel multicores, all while maintaining the audio quality standards synonymous with Palmer.

Key Features

  • Allows for transmission of 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher
  • Features Ethercon to 4 x XLR connection
  • Complies with AES72 Type 5E standards
  • Compatible with 48-volt phantom power
  • Utilizes premium Neutrik components for quality performance
  • Includes a robust mesh cable measuring 0.5 meters
  • Constructed with a solid casing made of aluminum and steel for durability
  • Designed and engineered in Germany for reliability
  • XLR plugs are numbered and color-coded for easy identification
  • Ethercon connection is secure to prevent accidental cable disconnection

Technical Specifications

General
Product type
Audio over Cat adapter
Number of inputs
4
Input type
Balanced
Input connector
RJ45
Number of outputs
4
Output type
Balanced
Output connector
3 pin XLRm
Material
Aluminum, Steel
Cable Length
0.5 m
Width
128 mm
Depth
140 mm
Height
50 mm
Weight
0.38 kg
Operating Temperature
-20 - 70 Degrees C
Air humidity
> 80 % (non-condensing)
Audio
Max. input level (< 1% THD, 1 kHz)
+ 32 dBu dBu
Frequency range
0 Hz - 20 kHz
THD (1 kHz, +4 dBu, unity, unweighted)
< 0,0005 %
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
Pin 1
Channel 3 -
Pin 2
Channel 3 +
Pin 3
Channel 4 -
Pin 4
Channel 1 +
Pin 5
Channel 1 -
Pin 6
Channel 4 +
Pin 7
Channel 2 -
Pin 8
Channel 2 +
Channel color code
Channel 1
Red
Channel 2
Green
Channel 3
Blue
Channel 4
White
