Palmer GA 03 Splitter for Guitars

Palmer | SKU: PALM-GA03-PALPGA03
$14999

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

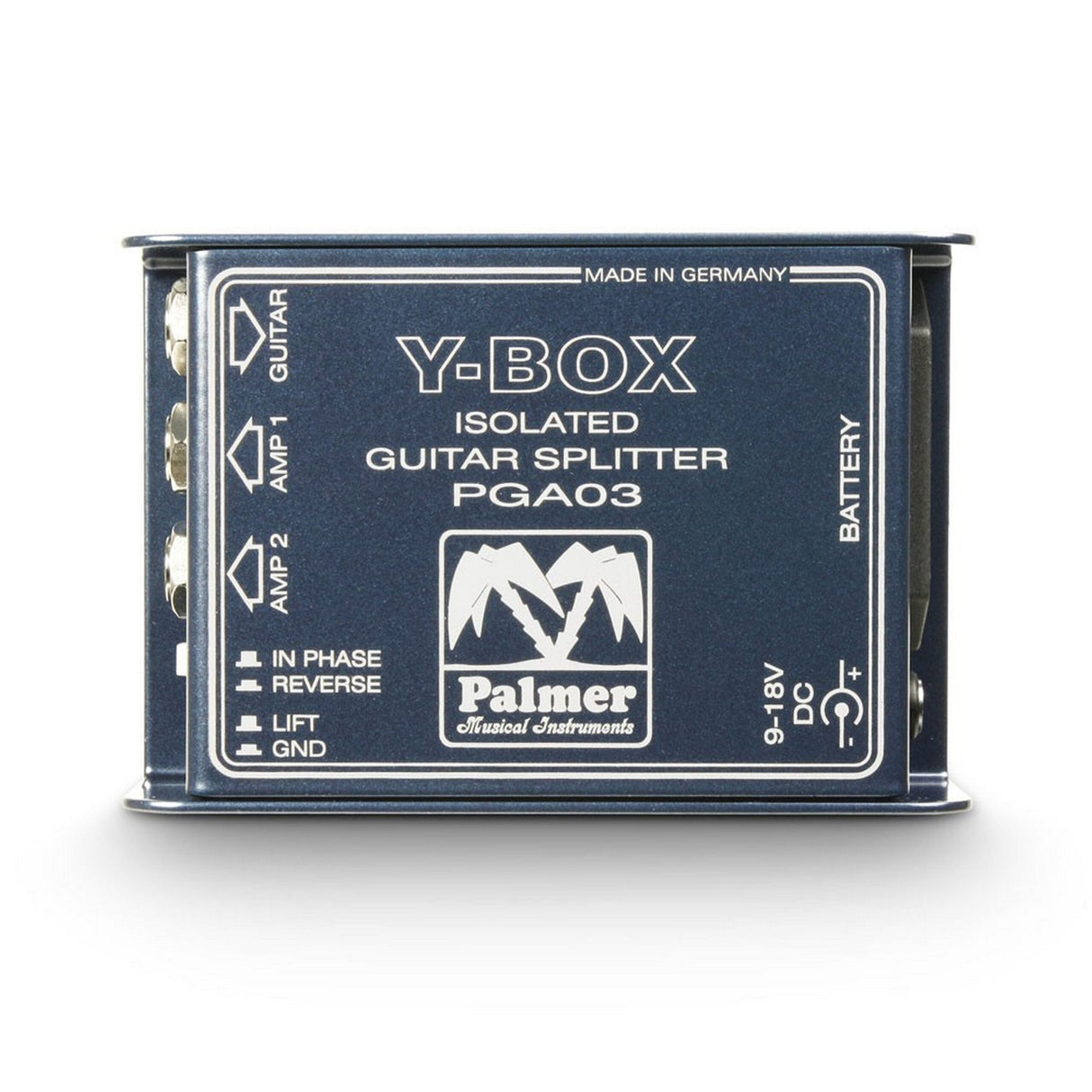

Palmer GA 03 Splitter for Guitars

"When I run my guitar into two amps simultaneously, I always get a loud hum". This is a rather common problem, often discussed in the technology section of relevant industry magazines. The Palmer Y box is the solution. Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended. The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.

Technical Specifications

Product type
Splitters
Split type
1 in 2
Inputs
1
Input connectors
6.3 mm jack
Adjustable input
no
Number of split-outputs per canal
1
Output connectors
6.3 mm jack
THRU outputs/channel
1
Transformer isolated outputs
Yes
Adjustable output
no
Controls
ground lift , phase
Indicators
Power
Operating voltage
9 V block , 9 V DC power supply
Width
125 mm
Depth
80 mm
Height
45 mm
Cabinet material
sheet steel
Cabinet surface
Powder coated
Weight
0,58 kg
