Palmer LI 02 Line Isolation Box, 2 Channel

Palmer | SKU: PALM-LI02-PALPLI02
$19999

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

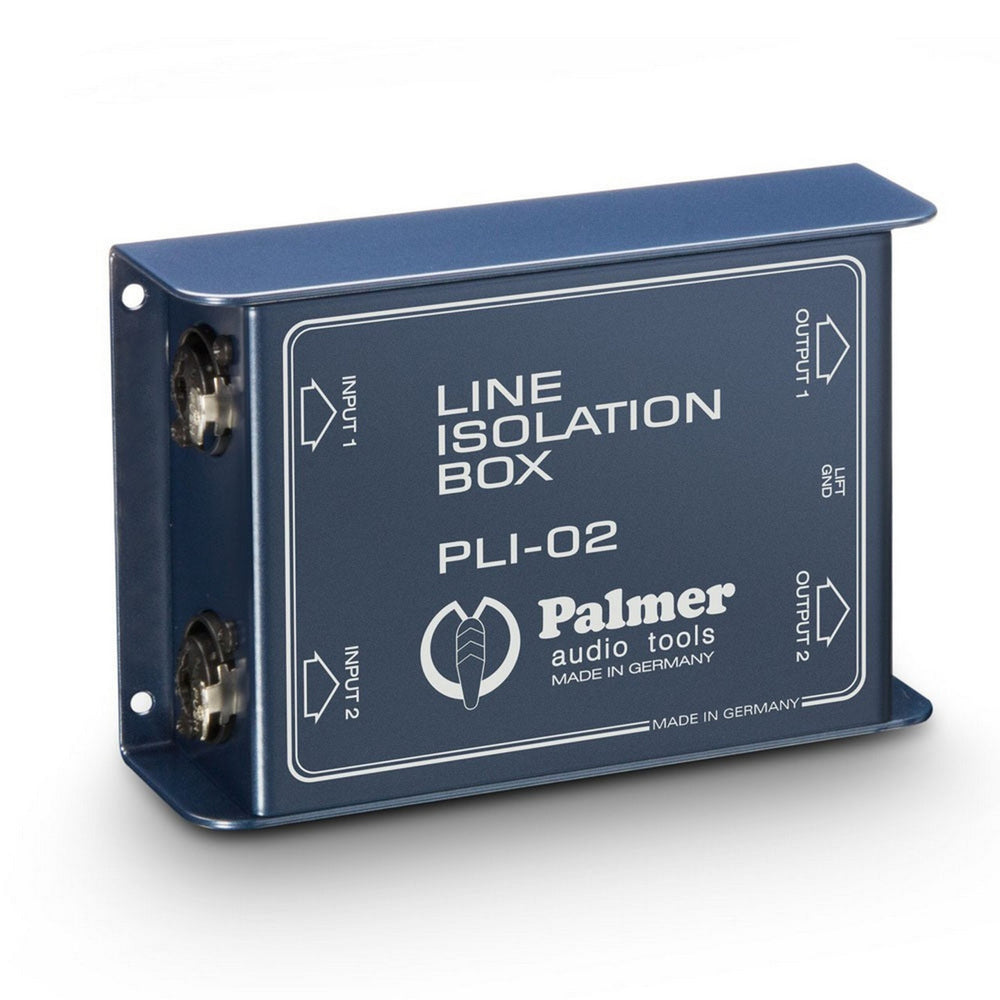

Palmer LI 02 Line Isolation Box, 2 Channel

Two-channel isolation transformer (line isolator). Neutrik combination socket input (XLR & jack socket) and XLR output. The PLI02 also has a ground-lift switch. Especially suitable for eliminating ground loops that cause hum. Conversion from unbalanced to balanced is possible. 600 ohm version can handle levels up to +20 dBu. Professional dual channel line isolating unit for stage and studio use. A unique Neutrik input connector accepts both male XLR and jack plugs. The PLI-02 easily converts unbalanced outputs into balanced ones. It may also be used to transformer balance electronically balanced inputs and outputs.

Technical Specifications

Product type
Line Isolators
Channels
2
Inputs
2
Input connectors
6.3 mm jack , XLR
Input type
balanced/unbalanced (depending on TS/TRS connection)
Input impedance
0.6 k Ohm(s)
Max. input level
+ 20 dBu
Outputs
2
Output connectors
XLR
Output type
balanced/unbalanced (depending on TS/TRS connection)
Output impedance
600 Ohm(s)
Max. output level
+ 20 dBu
Transformer balanced
Yes
Ratio
1:1
Frequency response
20 - 20.000 Hz
Controls
ground lift
Cabinet material
Die-cast aluminum
Cabinet surface
Powder coated
Width
135 mm
Depth
95 mm
Height
35 mm
Weight
0,53 kg

Palmer LI 02 Line Isolation Box 2 Channel
