Palmer PAN 02 Active DI Box

Palmer | SKU: PALM-PAN02-PALPAN02
$8999



Estimated Shipping Widget will be displayed here!


Condition: New

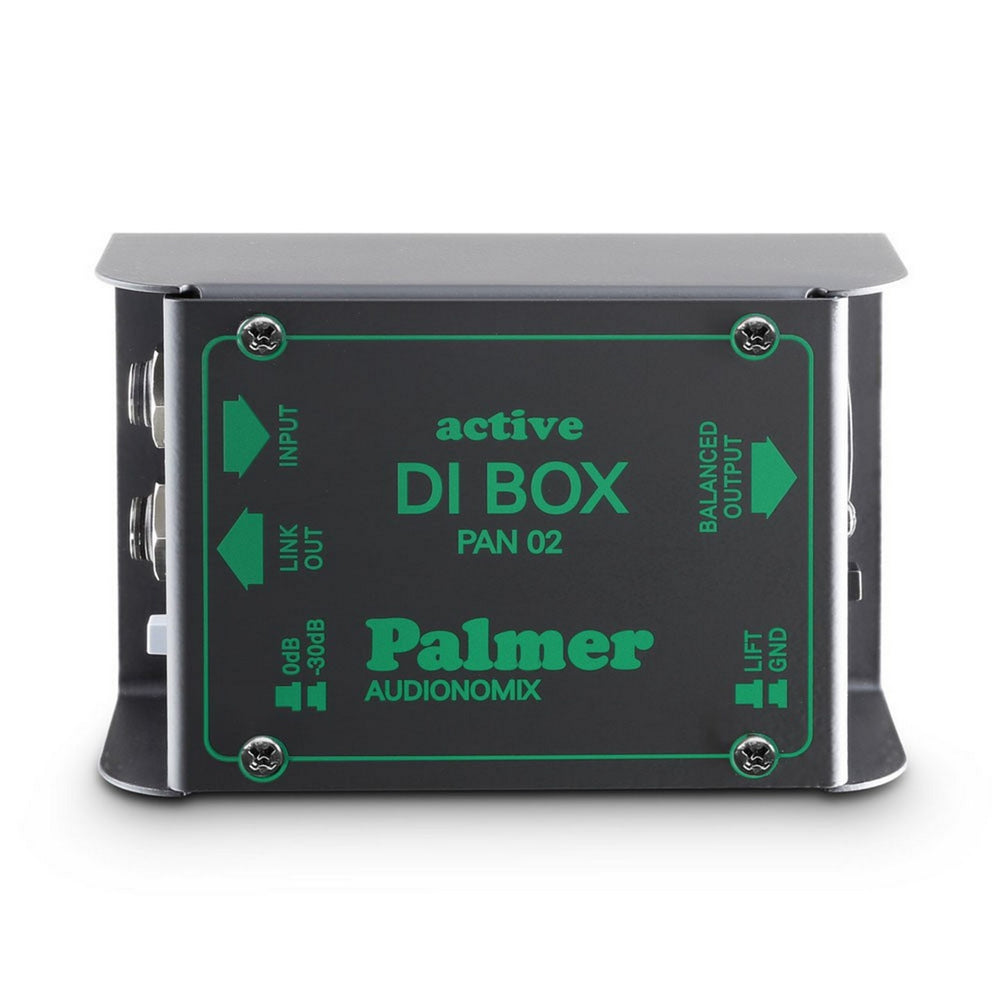

Palmer PAN 02 Active DI Box

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Technical Specifications

Product type
DI Boxes
Type
active
Channels
1
Inputs
1
Input connectors
6.3 mm jack
Max. input level
+ 45 dBu
Input impedance
(@ 60 Hz) 1 M Ohm(s)
Input pad
0 / -30 dB
Outputs
1
THRU outputs/channel
1
Output connectors
6.3 mm jack , XLR
Max. output level
+ 10 dBu
Output impedance
600 Ohm(s)
Frequency response
10 - 20000 Hz
Transformer balanced
Yes
Ratio
1 : 1
Controls
attenuator , ground lift
Operating voltage
+48 V phantom power , 9 V block
Power consumption
3.8 mA (9V) , 4 mA (48V)
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
110 mm
Depth
73 mm
Height
42 mm
Weight
0,353 kg
