Palmer PAN 03 PASS 19-Inch 4-Channel Passive DI Box

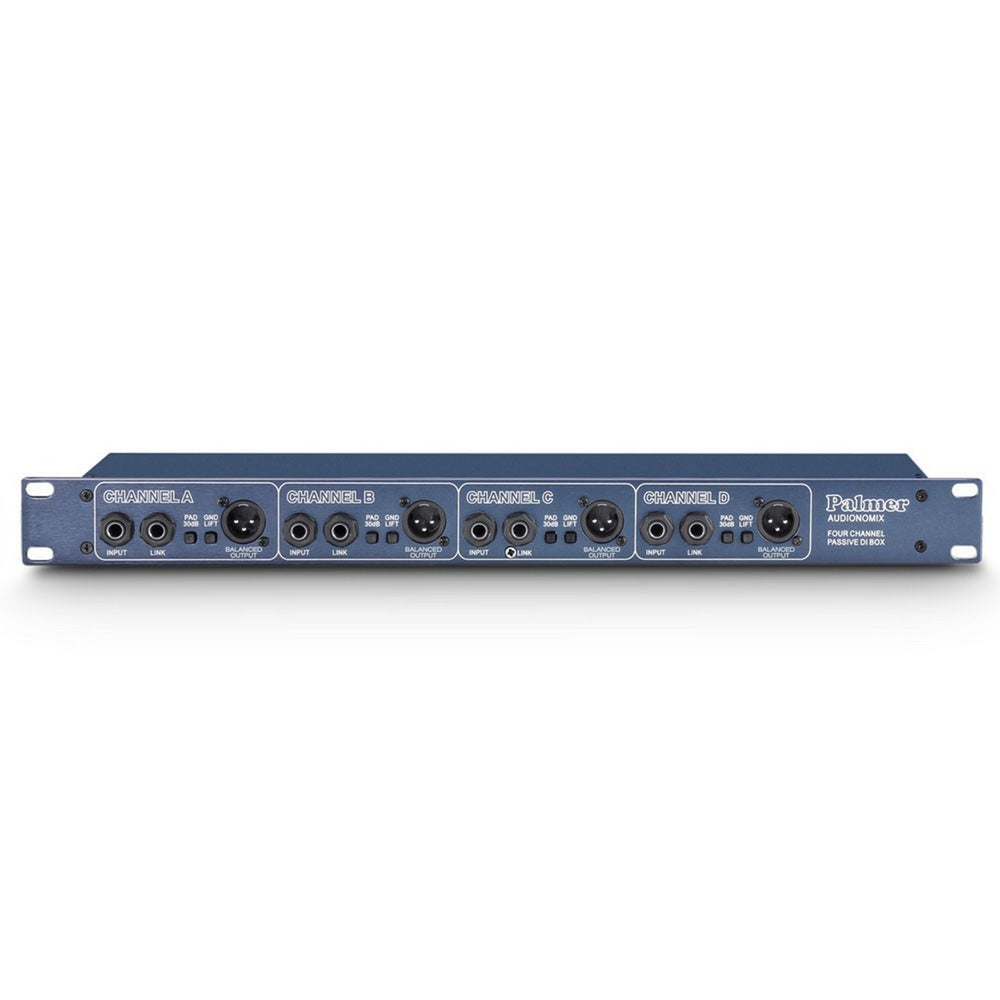

Passive 4-channel DI BOX in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.
Technical Specifications
Product type
DI Boxes
Type
passive
Channels
4
Inputs
4
Input connectors
6.3 mm jack
Max. input level
+ 54 dBu
Input impedance
(@ 60 Hz) 68k Ohm(s)
Input pad
0 / -30 dB
Outputs
4 (+ 4 parallel outs)
THRU outputs/channel
1
Output connectors
6.3 mm jack , XLR
Max. output level
+4 dBu
Output impedance
600 Ohm(s)
Frequency response
10 - 40000 Hz
Transformer balanced
Yes
Ratio
10 : 1
Controls
attenuation , ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
480 mm
Width
19 "
Depth
90 mm
Height
45 mm
Height
1 U
Weight
1,43 kg
