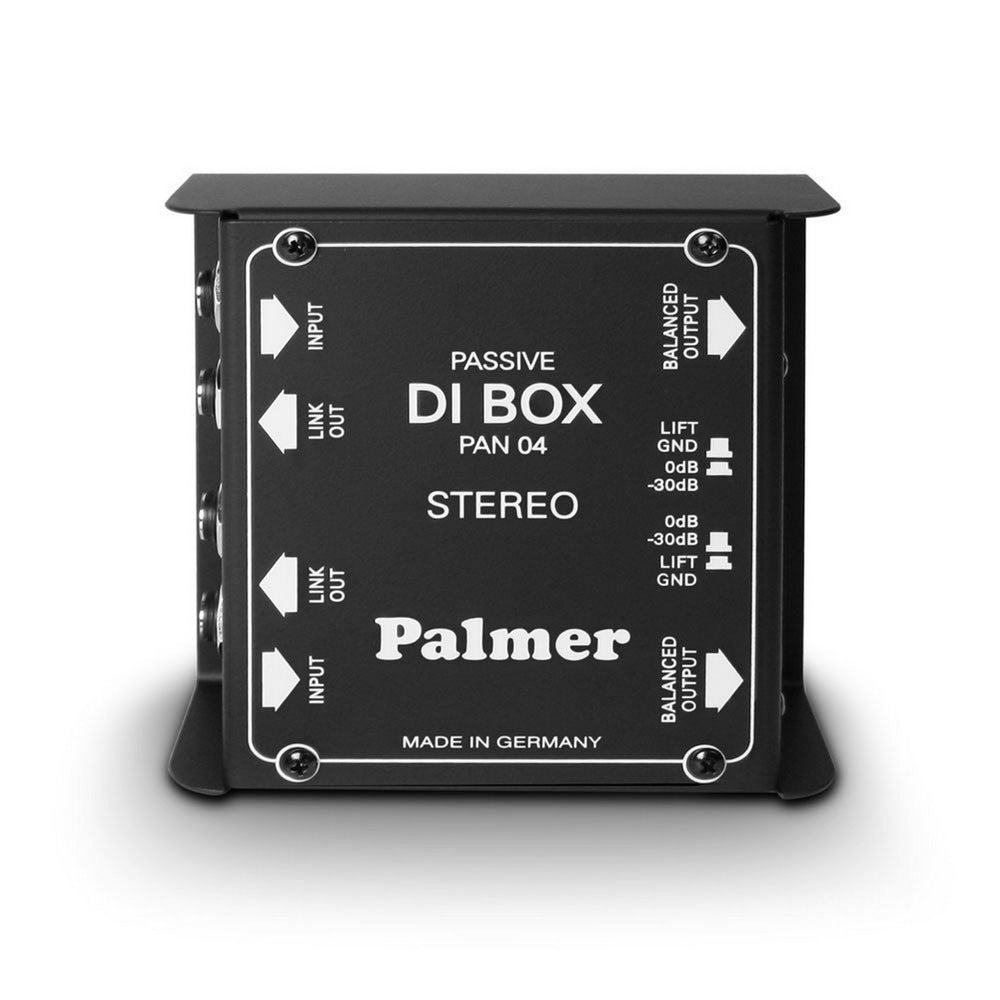

Palmer PAN 04 2-Channel Passive DI Box
The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Technical Specifications
Product type
DI Boxes
Type
passive
Channels
2
Inputs
2
Input connectors
6.3 mm jack
Max. input level
+ 54 dBu
Input impedance
60 k Ohm(s)
Input pad
0 / -30 dB
Outputs
2
THRU outputs/channel
1
Output connectors
6.3 mm jack , XLR
Max. output level
+ 4 dBu
Output impedance
600 Ohm(s)
Frequency response
10 - 40.000 Hz
Transformer balanced
Yes
Ratio
10 : 1
Controls
attenuation , ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
110 mm
Depth
110 mm
Height
45 mm
Weight
0,419 kg
