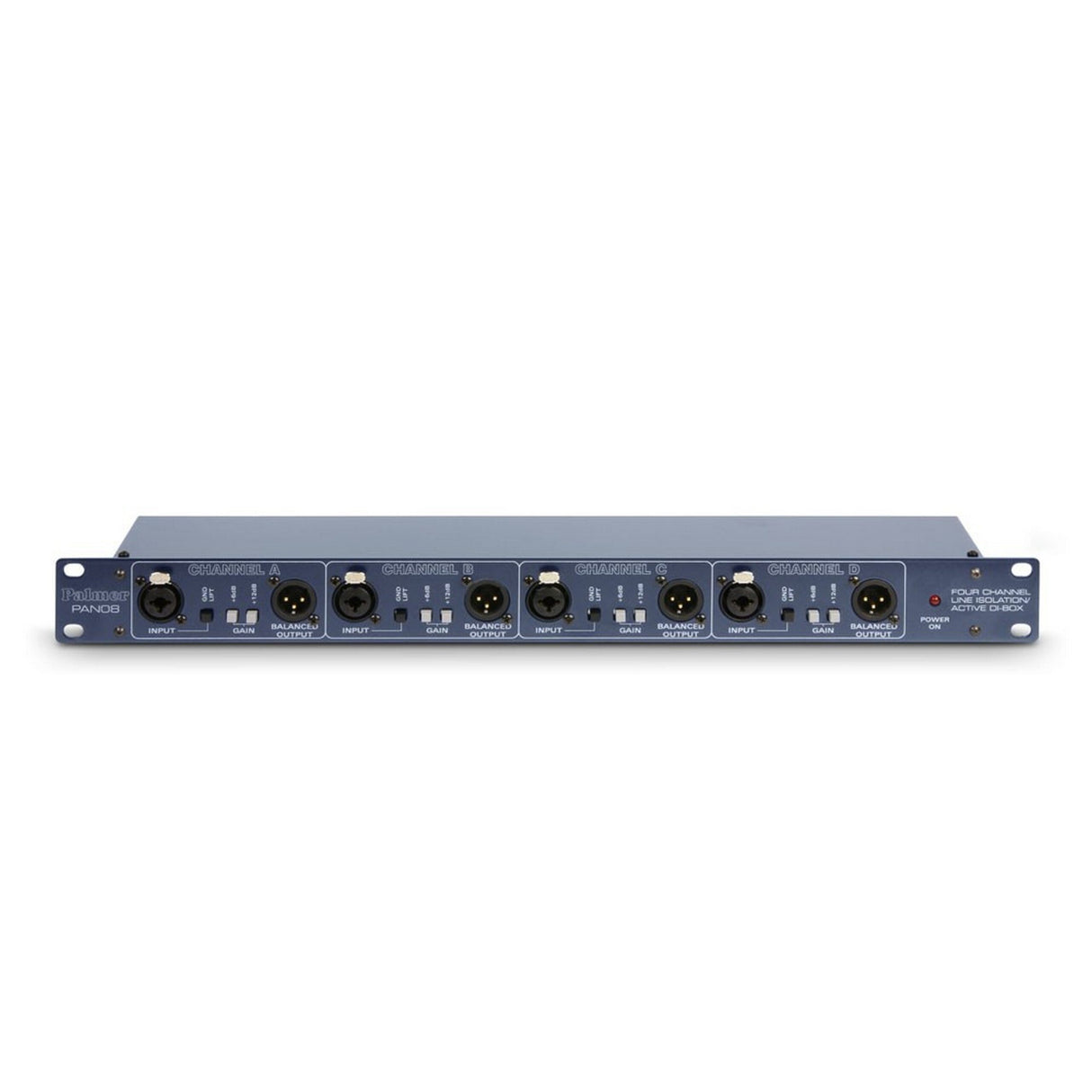

Palmer PAN 08 19-Inch 4-Channel Active DI/Line Isolation Box
Description
Description
Palmer PAN 08 19-Inch 4-Channel Active DI/Line Isolation Box
The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear). The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.
Technical Specifications
Product type
DI Boxes
Type
active
Channels
4
Inputs
4
Input connectors
6.3 mm jack , XLR
Max. input level
+12 dBu
Input impedance
Balanced: 20k Ohm(s)
Outputs
8
THRU outputs/channel
0
Output connectors
XLR
Max. output level
+12 dBu
Output impedance
600 Ohm(s)
Frequency response
20 - 20000 Hz
Transformer balanced
Yes
Ratio
Variabel
Indicators
Power
Controls
2 x gain , attenuator , ground lift
Operating voltage
9 V DC power supply
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
480 mm
Width
19 "
Depth
90 mm
Height
45 mm
Height
1 U
Weight
1,59 kg
