Palmer PAN 16 19-Inch 8-Channel Passive DI Box

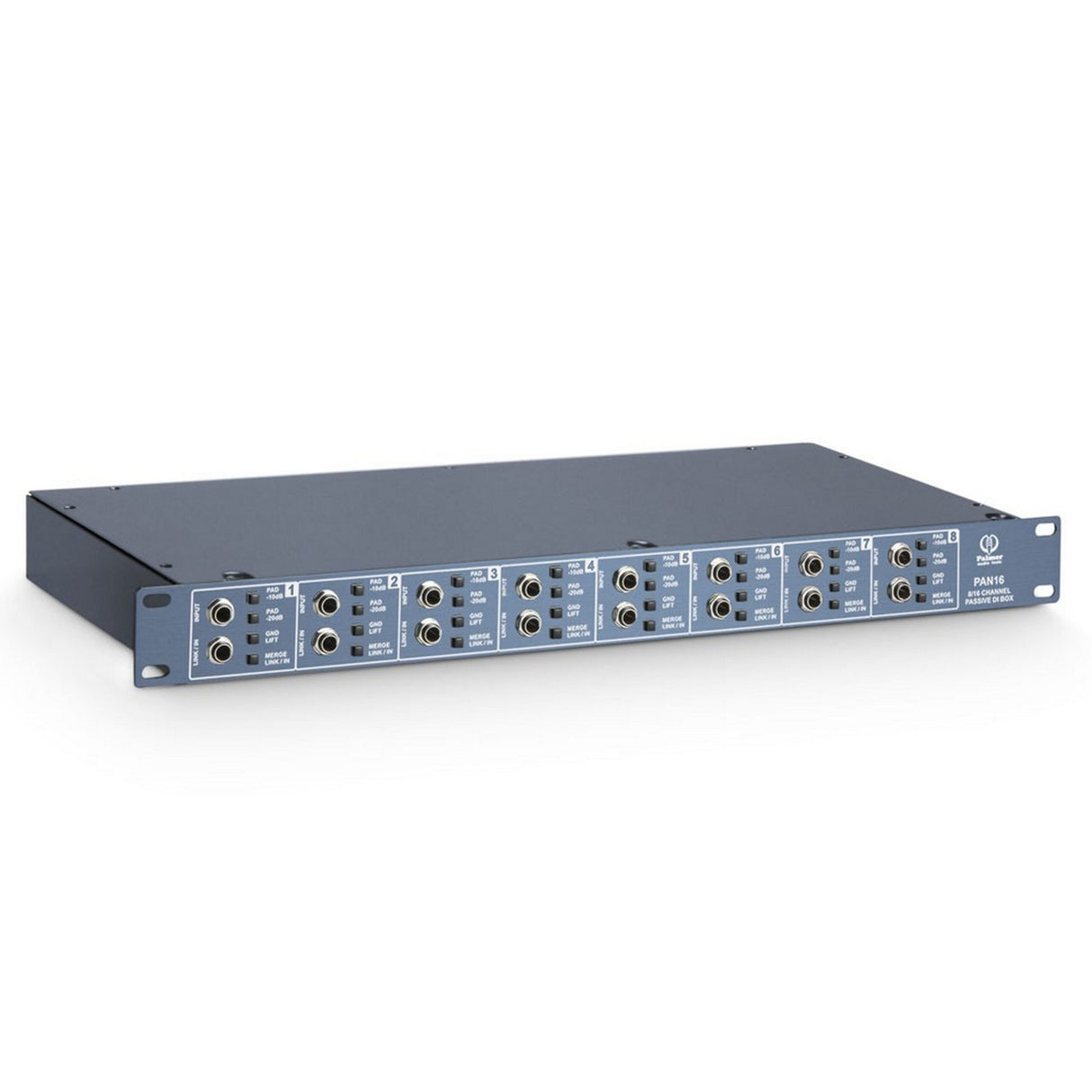

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.
Key Features
- 19ā passive DI-Box
- 8 Channels
- Up to 16 Inputs
- Link Merge Function
- Flexible PAD: -10dB, -20dB, -30dB
- Transformer balanced and isolated outputs
Technical Specifications
Product type
DI Boxes
Type
passive
Channels
8
Inputs
8 / 16
Input connectors
6.3 mm jack
Max. input level
+ 54 dBu
Input impedance
(@ 60 Hz) 1 M Ohm(s)
Input pad
0 / -30 dB
Outputs
4 (+ 4 Parallel Thru out)
THRU outputs/channel
2
Output connectors
6.3 mm jack , XLR
Max. output level
+4 dBu
Output impedance
600 Ohm(s)
Frequency response
10 - 40000 Hz
Transformer balanced
Yes
Ratio
10 : 1
Controls
ground lift , merge , PAD -10dB , PAD -20dB
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
480 mm
Width
19 "
Depth
200 mm
Height
45 mm
Height
1 U
Weight
2,39 kg
