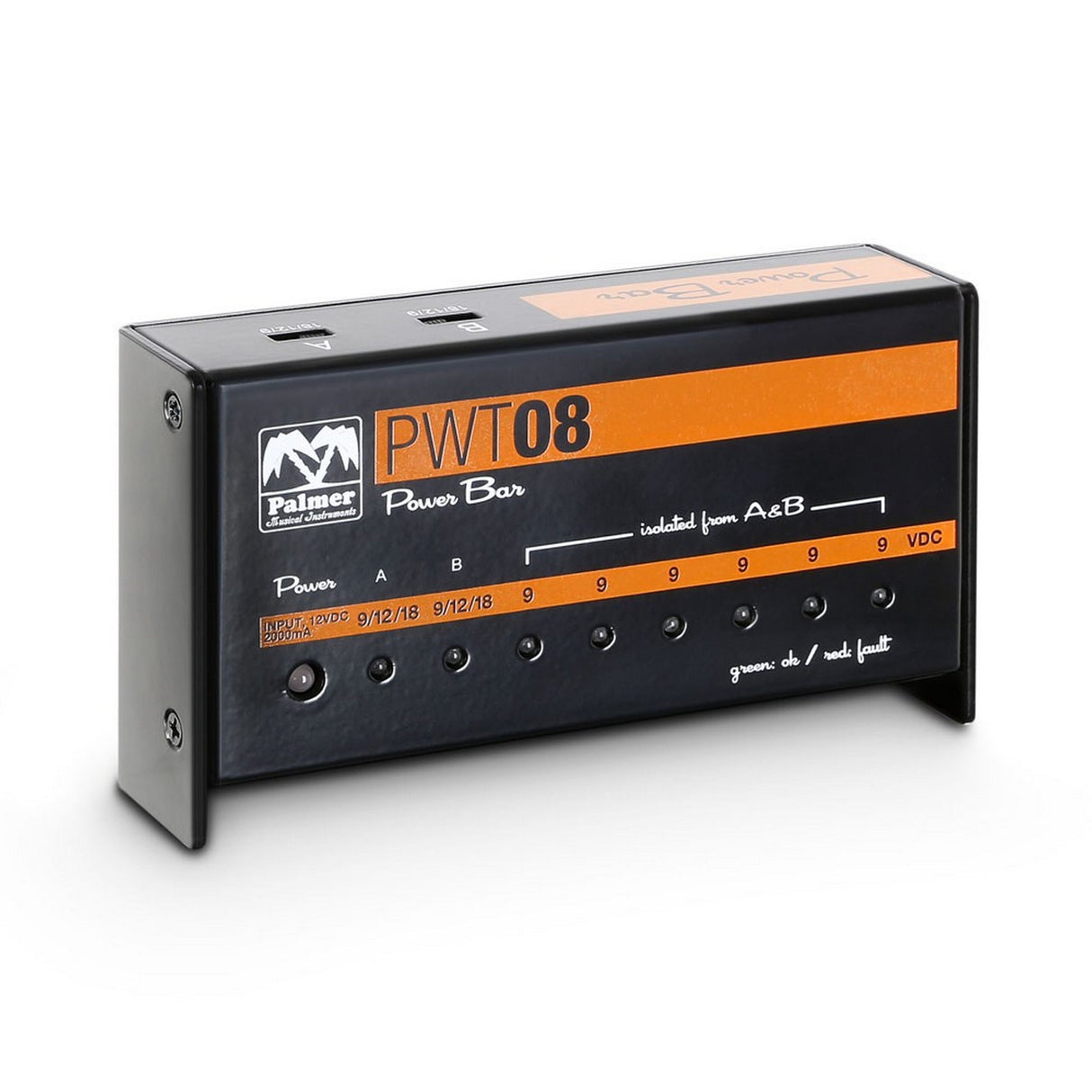

Palmer PWT 08 Universal 9V Pedalboard Power Supply, 8 Outputs
The PWT 08 is a universal pedalboard power supply with huge 2,000 mA output capacity and 8 standard center negative outlets. Two of these are switchable to 9, 12 or 18 volts, and with the included Y cable they can be combined to a single outlet for 21, 24, 30 or 36 volts maximum output. They are isolated from each other and the remaining outlets. Featuring short circuit and overload protection, the PWT 08 is fully regulated to deliver constant voltage. The unIt'sports a power on LED, bi-color outlet status LEDs and comes with a set of DC cables and dedicated mains adapter. The PWT 08 is the ideal choice if you have just one or two power hungry pedals or 9 volt effects that can be run on higher DC currents for more dynamics and headroom.
Key Features
- Fully regulated universal pedalboard power supply
- 8 standard center negative outlets with 2,000 mA output total
- Two 9, 12 or 18 V switchable outputs
- Short circuit and overload protection for each outlet
- Bright power and outlet status LED indicators
- DC cables, Y cable and mains adapter included
Technical Specifications
Product type
Power Supplies
Mains connector
Plug-in power supply
Input voltage
100 - 250 V
Outputs
8
Output connectors
2.1 x 5.5 mm
Output voltage
12 V , 18 V , 9 V
Max. output current
2000 mA A
Isolated outputs
Yes
Polarity
Center negative
Cord length
25 - 50 cm
Indicators
Fault , Power
Controls
Output voltage selector
Width
140 mm
Depth
80 mm
Height
32 mm
Weight
0,3 kg
Features
8 x DC cable, 1 x merge cable
