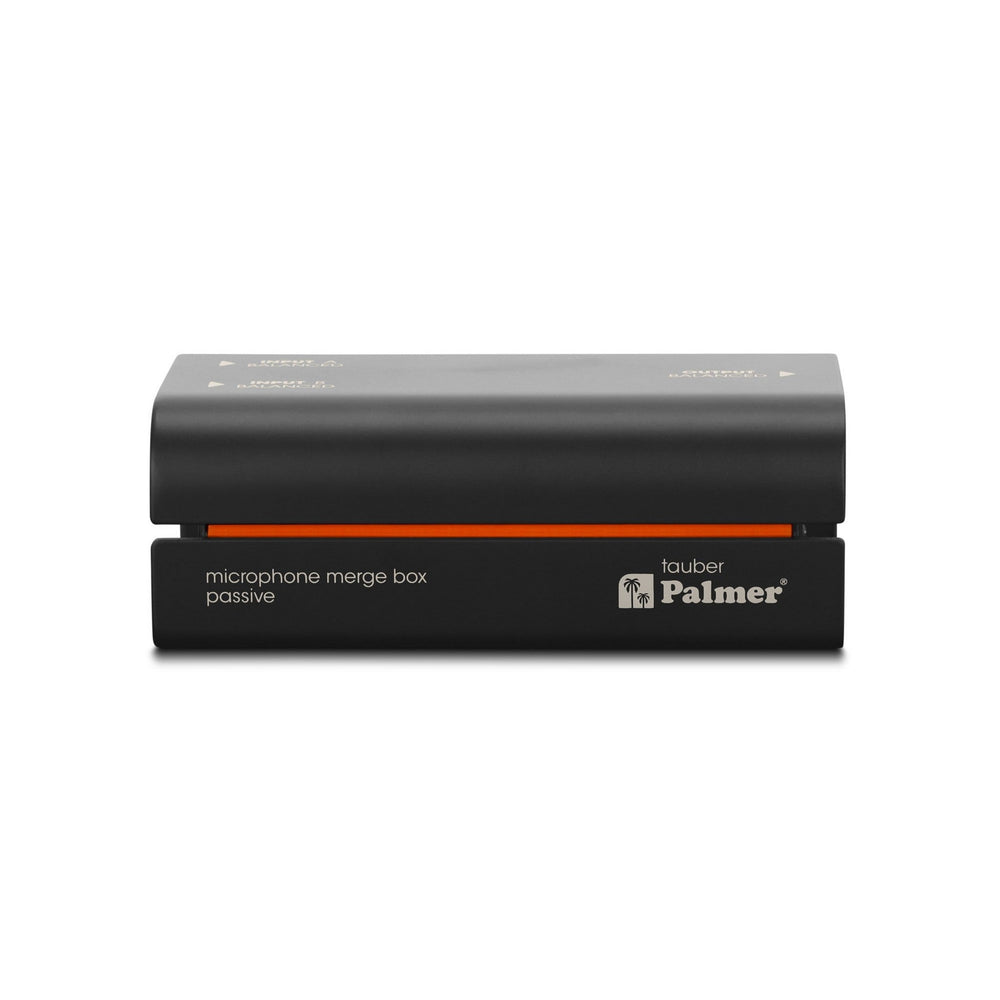

Palmer tauber Passive Microphone Merge Box
Do you have two microphones, but just one free microphone input?
This problem has existed for as long as there have been PA systems! The Palmer tauber Microphone Merge Box solves the problem in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix to a balanced mono signal which is routed to a single XLR output. It's as easy as It'sounds!
It can be used for two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid any undesirable level differences. Phantom power is passed through to both inputs.
Due to its passive circuitry, the tauber works without any sound coloration and does not require a power supply. The casing and sockets are extremely robust and long-lasting.
Key Features
- For connecting two microphones to one microphone input
- Two balanced XLR inputs
- One balanced XLR output
- For two dynamic microphones or two condenser microphones
- Phantom power can pass through
- Reliable problem-solver for PA systems with a shortage of mixer channels
- Extremely fail-safe
- Passive switching, no power supply required
- Solid casing made of aluminum and steel
- Incl. rewritable tour label for attachment onto the back of the tauber
- Engineered in Germany
Technical Specifications
Product type
Microphone summing unit
Type
passive
Channels
1
Transformer isolated
no
Inputs
2
Input type
balanced
Input connectors
XLR
Outputs
1
Output type
balanced
Output connectors
XLR
Housing
Aluminum continuous casting
Dimensions (W x H x D)
50 x 140 x 68 mm
Weight
0,36 kg
Ambient temperature (in operation)
- 20 - 70 °C
Relative Humidity
< 80% (non-condensing)
Accessories (included)
Inscription label (tour label), rubber feet
Audio
Input impedance (1 kHz)
644 Ohm Ohm(s)
Output impedance (1 kHz)
400 Ohm Ohm(s)
