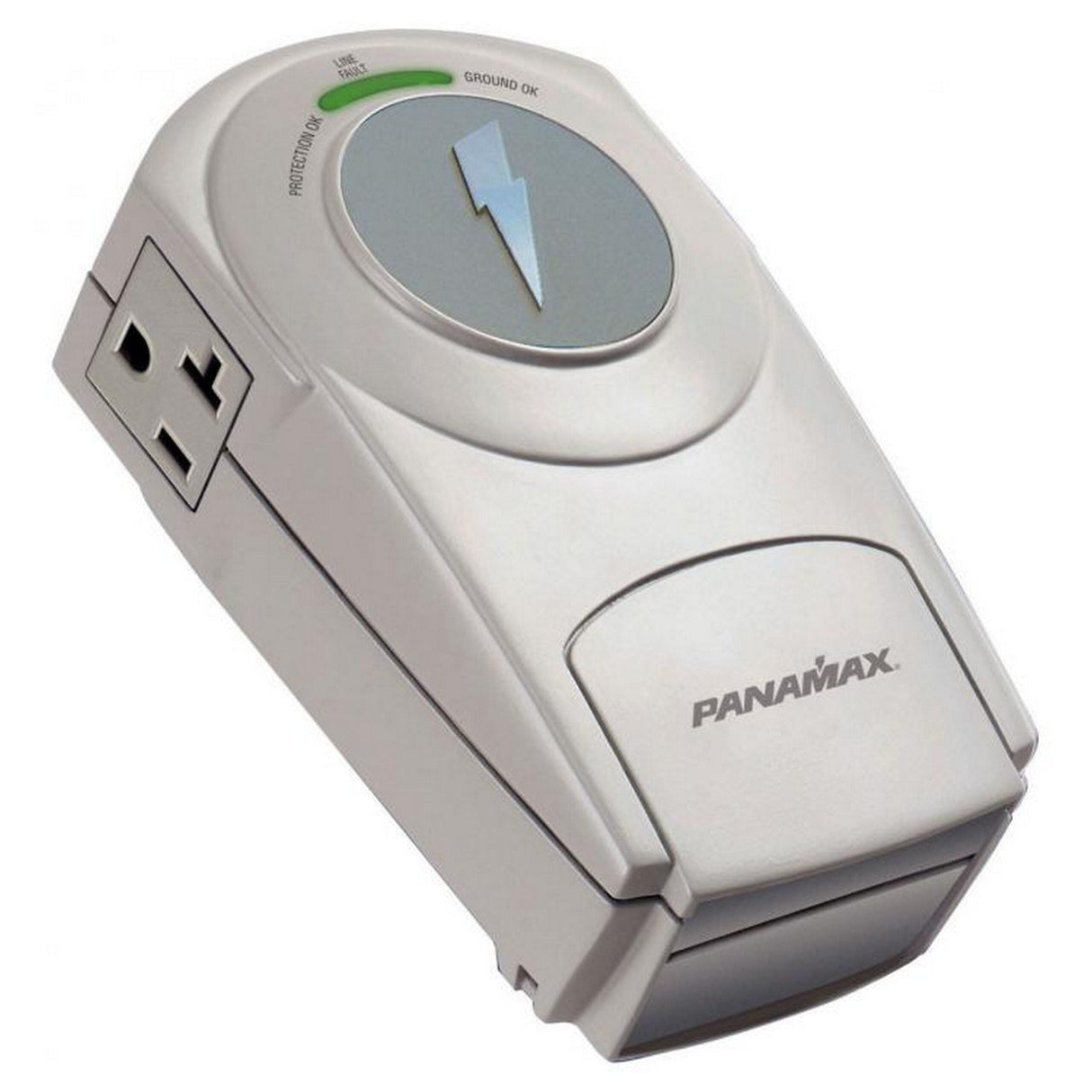

Panamax M2A20 2 Outlet Direct Plug-In Surge Protector, 20 Amp
Description
Description
Panamax M2A20 2 Outlet Direct Plug-In Surge Protector, 20 Amp
Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Exclusive Protect or Disconnect Circuitry
Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Signal Perfect Circuitry
Optimized phone line surge protection circuitry ensures a clean, clear signal. It features solid-state SIDACtor and autor-resetting PTCR's for maximum protection and reliability.
$5,000,000 Limited Connected Equipment Protection Warranty
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
Lifetime Product Warranty
The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.
Product Upgrade Offer
See policy for details on upgrade offer to replace damaged units.
Key Features
- One 15 Amp AC Outlet
- One 20 Amp AC Outlet
- Protect-or-Disconnect Circuitry
- Convenient security feature; attach the protector to your equipment’s power cords.
- Three diagnostic lights indicate wiring integrity and protection status.
- Space-saving design plugs directly into wall outlet.
- Convenient security feature; attach the protector to your equipment’s power cords.
- Versatile outlet orientation accommodates the widest range of plug styles including transformers and right angle plugs.
Technical Specifications
Family
Direct Plug Ins
Line Voltage
120 (Volts)
Number of Outlets
2
Outlet Descriptions
One 15 Amp AC Outlet and One 20 Amp AC Outlet, both filtered and surge protected
Compliance
C-UL (UL standard #1449)
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
N/A
Dimensions
3.12" W X 5.5" D X 2" H
Weight
0.75 lbs
AC Protection Technology
Protect or Disconnect
L-N, L-G, N-G Protection Modes
Thermal Fusing
Undervoltage Shutoff
N/A
Over-Voltage Shutoff
N/A
Maximum Current Rating
20 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
50 dB @ 100 kHz - 1 MHz
Signal Line Protection
No
Length
4.6 (Inches)
Width
3.2 (Inches)
Height
6.2 (Inches)
Weight
0.75 (Lbs)
