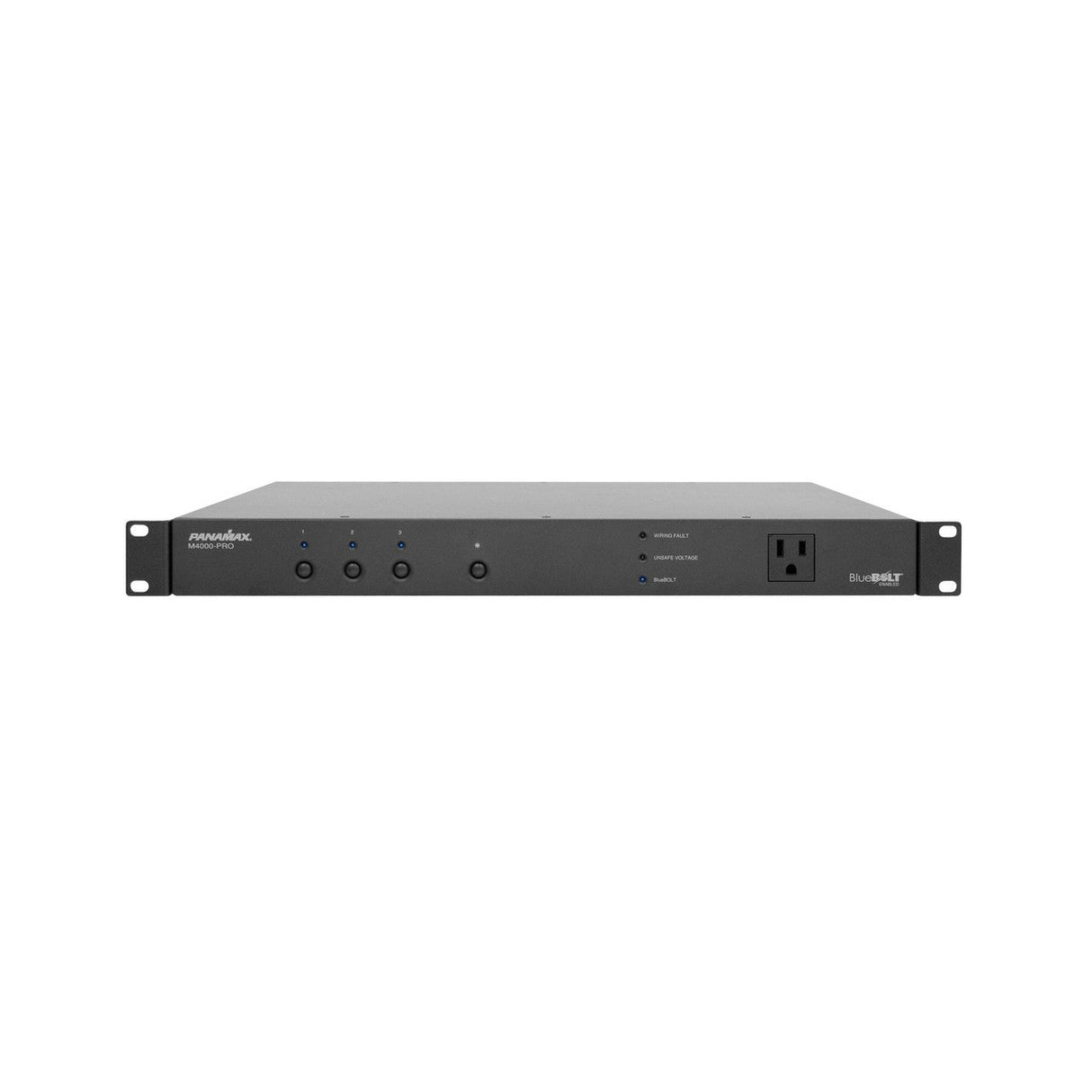

Panamax M4000-PRO Compact BlueBOLT Power Conditioner 8 Outlets AVM 15A
Ideal for moderate (DIY) to high end (installed) home entertainment systems. Protects connected equipment from power surges and dangerous voltage conditions (7 outlets). Filters AC for best electronics performance. Provides remote power, energy and network management from any web enabled device at www.mybluebolt.com, Reduces equipment issues/services calls. Provides visibility on energy usage with cloud-based monitoring and tracking. Safeguards equipment from catastrophic surges with Protect-or-Disconnect protection. AVM Protects against brownouts and dangerous overvoltage conditions. Reduces excess energy consumption with scheduled on/off commands. Automatically reboots network equipment when connectivity is lost
Key Features
- BlueBOLT Enabled
- 7 rear panel outlets in 3 controllable outlet banks
- Front panel convenience outlet
- AVM + Protect or Disconnect protection
- Signal side protection
- 12V trigger
- Linear Level 3 Filtration
Technical Specifications
AC POWER
Operating Voltage:
120 Vac / 60Hz
Current Capacity:
15 A
UL 1449 Voltage Protection Rating:
330V L-N, 400V L-G, 400V N-G
UL 1449 Nominal Discharge Current:
3,000A
Initial Clamping Level:
200V
Energy Dissipation:
1,575 Joules (8/20µs)
Overvoltage shutoff:
134 Vac ± 2 Vac
Undervoltage shutoff:
95 Vac ± 2 Vac
EMI / RFI Noise Filtration:
-18.7dB @ 10kHz
-50.5dB @ 100kHz
-43.9dB @ 1MHz
LAN PROTECTION
Connectors:
RJ-45 Cat 5e
Wires protected:
8-wires
Compatibility:
10/100BASE-T
Clamping Level:
60V
TELEPHONE PROTECTION
Connectors:
RJ-11
Suppression Modes:
Metallic & Longitudinal
Fuseless / Auto-resetting:
Yes
Clamping Level:
260V
UNIVERSAL COAX PROTECTION
Connectors:
Female F, Gold-plated
Insertion loss:
<0.5dB
Frequency Range:
0 MHz - 2.2GHz
Clamping Level:
75V
DC TRIGGER INPUT
Voltage and Polarity:
5 - 24VDC, bidirectional
Jacks:
3.5mm (1/8) mono mini-plug
Weight:
10.63 lbs.
Dimensions:
17" W (19" W with rack ears) x 1.75" H x 13" D
