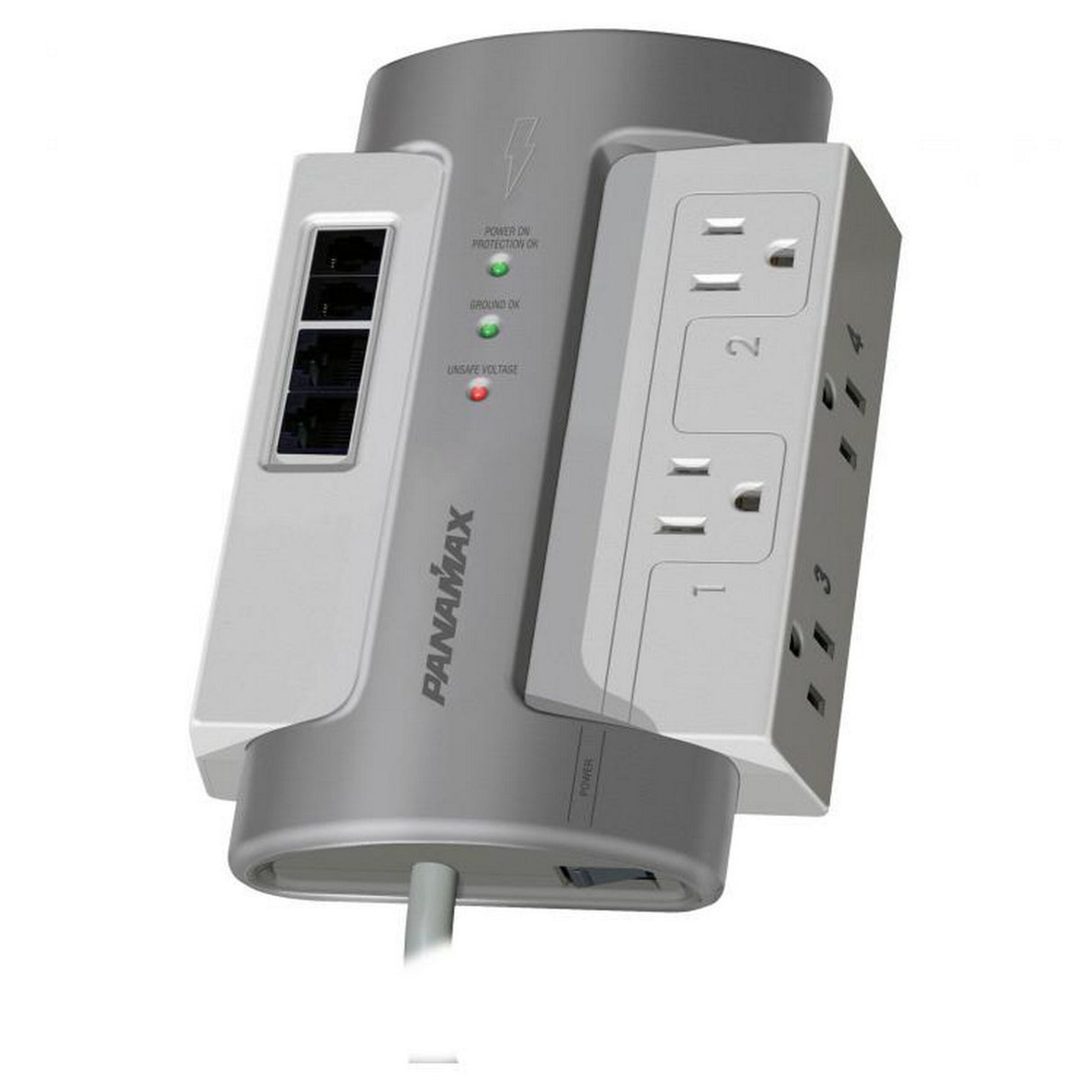

Panamax M4LT-EX Noise Filtration/Surge Protector
Description
Description
Panamax M4LT-EX Noise Filtration/Surge Protector
Noise Filtration/Surge Protection for All Home/Office Equipment
Key Features
- Exceeds UL Safety Standards
- Solid-State Telephone Line Protection
- Compatibility 10/100/1000 BASE-T (CAT 5e)
- Includes DSL Phone Line Splitter
- Four AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accomodate System Expansion
Technical Specifications
Family
Floor Models
Line Voltage
120 (Volts)
Number of Outlets
4
Outlet Descriptions
All 4 outlets filtered and surge protected
Control
On/Off control to all outlets through power switch.
Compliance
UL 1449 3rd Edition, 3000A
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
8 ft. captive cord
AC Protection Technology
Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
Undervoltage Shutoff
90 VAC +/- 6 VAC
Over-Voltage Shutoff
144 VAC +/- 8 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
50 dB @ 100 KHz - 1 MHz
Signal Line Protection
1 LAN
1 Tel
Length
9.9 (Inches)
Width
2.1 (Inches)
Height
10.3 (Inches)
Weight
2.65 (Lbs)
