Panamax  |  SKU: PANMX-M5300PM

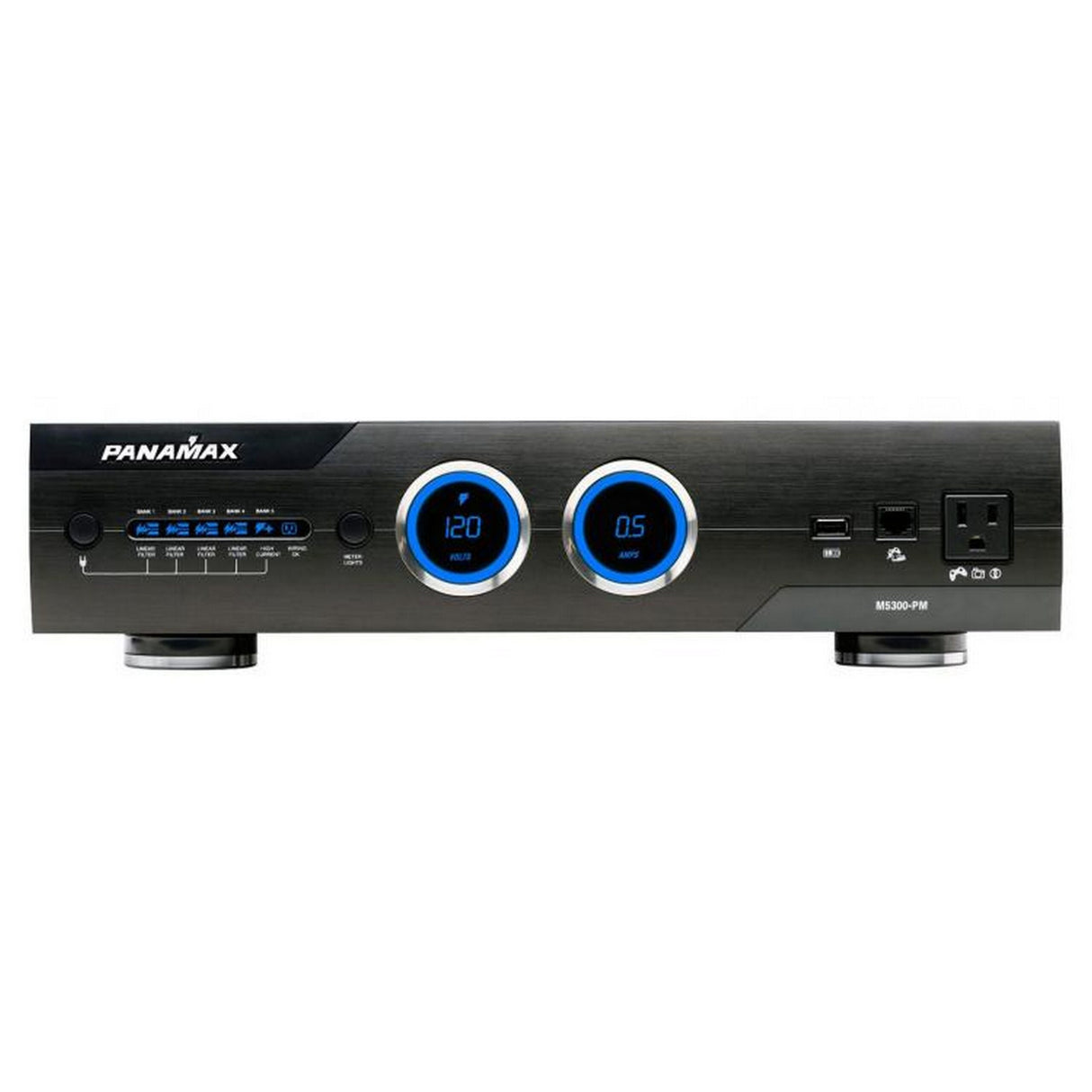

Panamax M5300-PM 2RU 11 Outlets Power Management Device

$77200
🚚 Order within the next 2 hours, 15 minutes for delivery by 22 May, 2024.

Condition: New



Description

Panamax M5300-PM 2RU 11 Outlets Power Management Device

Improves Picture and Sound Quality, Monitors Incoming Line Voltage, and Reduces Cross-Contamination Between Components.

Improves Picture and Sound Quality

Level 4 Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing red lightning bolt will be displayed in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5300-PM is designed to provide noise isolation between 5 isolated outlet banks (including 1 bank with 2 high current outlets) so that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank.

Key Features

  • Clean Power Level 4
  • Improves picture and sound quality by eliminating noise across the entire AC bandwidth. 40% more efficient at eliminating noise than Clean Power Level 3.
  • AVM (Automatic Voltage Monitoring)
  • Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
  • High Current Outlets
  • 2 outlets for equipment with high-power demands (Amps/Subwoofers).
  • USB Charger
  • 1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
  • Gaming LAN Port
  • Easy access to LAN port on front panel. Perfect for online gaming.
  • 5 Isolated Outlet Banks
  • Isolating outlet banks from one another prevents noise contamination between components.
  • 12 Volt Trigger
  • Allows source equipment to activate or deactivate the switched outlets on the M5300-PM.
  • Power Sequencing
  • Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.
  • 11 Outlets
  • 5 Always On, 4 Switched, 2 Switched High Current.

Technical Specifications

Family
PM Series
Line Voltage
120 (Volts)
Number of Outlets
11
Number of Isolated Banks
5
Outlet Descriptions
1 (always on, linearly filtered outlet, front panel)
4 (always on, linearly filtered outlets, rear panel)
4 (switchable, linearly filtered outlets, rear panel)
2 (switchable high current outlets, rear panel)
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
1 voltmeter, 1 Ammeter
Front Media Light(s)
No
Control
On/Off control of switched outlets through front panel power button or rear panel DC trigger.
Voltage Regulation
No
Compliance
cCSAus
USB Charging
1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
Low Voltage Trigger
12 V, In/Out
AC Power Cord
10 ft. detachable
Dimensions
17" W x 12.75" D x 3.5" H, (4.1" Including feet)
Weight
12.8 lbs
AC Protection Technology
Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
Under-Voltage Shutoff
90 VAC +/- 2 VAC
Over-Voltage Shutoff
142 VAC +/- 8 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
LiFT
Filtration Rating
Bank 1: Up to -86 db (100 KHz _ 2 MHz)
Bank 2: Up to -91 db (100 KHz _ 2 MHz)
Bank 3: Up to -81 db (100 KHz _ 2 MHz)
Bank 4: Up to -100 db (100 KHz _ 2 MHz)
Bank 5, High Current Outlets: Up to -81 db (100 KHz _ 2 MHz)
Signal Line Protection
2 LAN, 1 Tel, 3 Cable/Satellite
Length
20.3 (Inches)
Width
10.3 (Inches)
Height
24 (Inches)
Weight
19.55 (Lbs)
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
500V
Single Pulse Energy Dissipation
2125 Joules
Peak Impulse Current
72,000 Amps
LAN - Wires Protected
8-Wires
LAN - Compatibility
10/100bT
LAN - Clamping Level
60V +/- 5V
Coax - Shielded
Yes
Coax - Insertion Loss
< 0.5 dB
Coax - HD 1080 i/p Ready
Yes
Coax - Frequency Range
0 MHz - 2.2 GHz
Coax - Connections
Female +/-F, Gold Plated
Coax - Clamping Level
75V
Coax - Bidirectional
Yes
