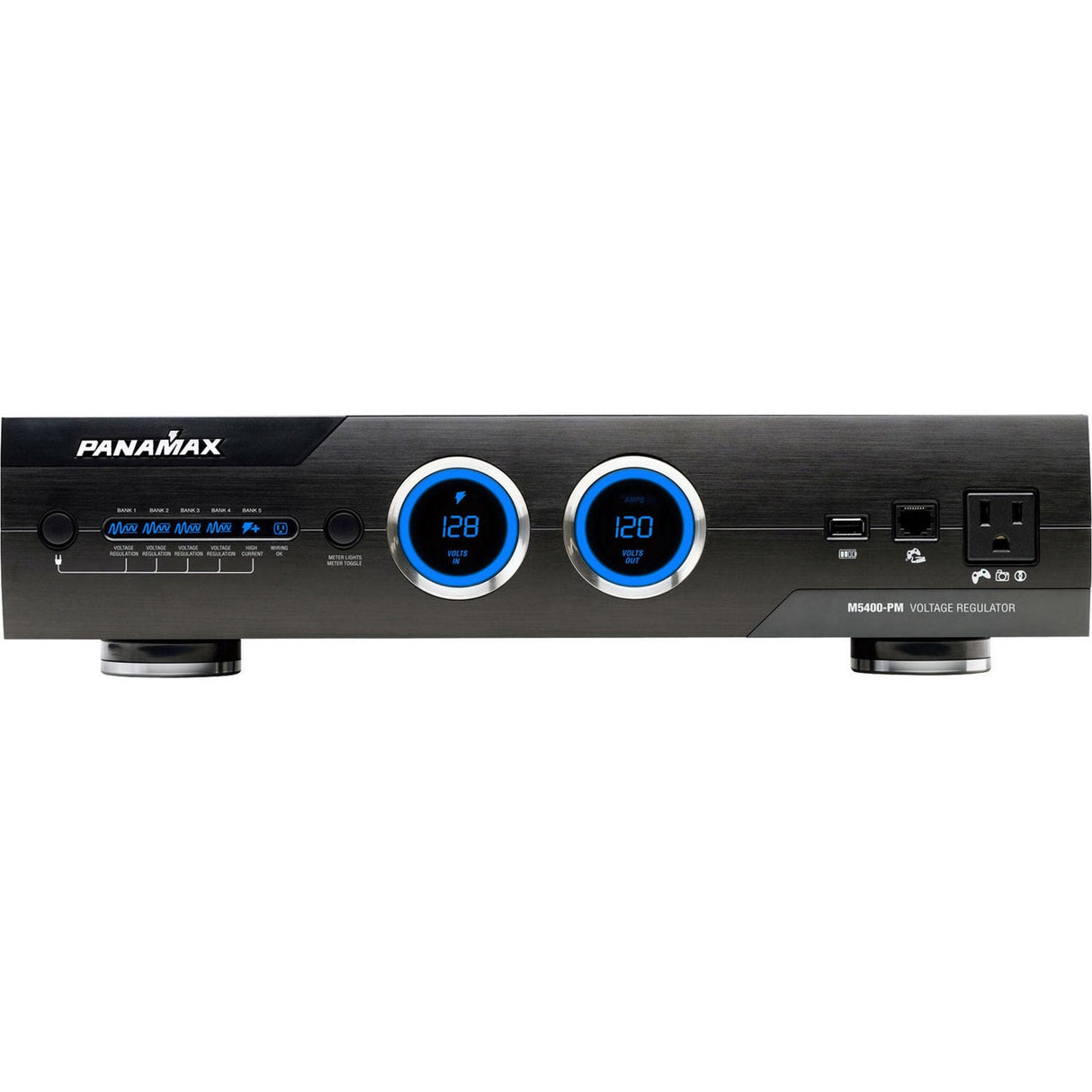

Panamax M5400-PM 2RU 11 Outlets Power Management Device with Voltage Regulation

Panamax M5400-PM 2RU 11 Outlets Power Management Device with Voltage Regulation

Regulates Voltage, Improves Picture and Sound Quality, Monitors Incoming Line Voltage, and Reduces Cross-Contamination Between Components.

Voltage Regulation

Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.

Improves Picture and Sound Quality

Level 4+ Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamax patent pending AVM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5400-PM is designed to provide noise isolation between five isolated outlet banks including two high current outlets so that any noise created by an A/V component can not contaminate the power going to equipment plugged into another outlet bank.

Key Features

• Clean Power Level 4+
• Panamax PM family highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.
• Voltage Regulation
• Improve system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.
• AVM (Automatic Voltage Monitoring)
• Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
• High Current Outlets
• 2 outlets for equipment with high power demands (Amps/Subwoofers).
• USB Charger
• 1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
• Gaming LAN Port
• Easy access to LAN port on front panel. Perfect for online gaming.
• 5 Isolated Outlet Banks
• Isolating outlet banks from one another prevents noise contamination between components.
• 12 Volt Trigger
• Allows source equipment to activate or deactivate the switched outlets on the M5400-PM.
• Power Sequencing
• Guards against blown fuses and potentially damaging speaker thump by automatically powering outlets on and off in sequence.
• 11 Outlets
• 5 Always On, 4 Switched, 2 Switched High Current.

Technical Specifications

Family
PM Series
Line Voltage
120 (Volts)
Number of Outlets
11
Number of Isolated Banks
5
Outlet Descriptions
All 11 outlets voltage regulated, filtered, and surge protected.
Banks 1 and 2 are always on
Bank 3 and 4 are switchable from front panel power button or 12V trigger
Bank 5 outlets are high current and switchable from power button or 12V trigger
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
1 voltmeter (volts in), 1 voltmeter(volts out)/ammeter combo
Front Media Light(s)
No
Control
On/Off control of switched outlets through front panel power button or rear panel DC trigger.
Voltage Regulation
Regulation capture range: 100VAC to 136VAC
Output voltage range: 120VAC +/- 6 VAC
Compliance
cCSAus
USB Charging
1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.
Low Voltage Trigger
12 V, In/Out
AC Power Cord
10 ft. detachable
Dimensions
17" W x 12.75" D x 3.5" H, (4.1" Including feet)
Weight
20 lbs
AC Protection Technology
Voltage Regulation
Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
Under-Voltage Shutoff
86VAC +/- 6V
Over-Voltage Shutoff
142 VAC +/- 8 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
LiFT
Filtration Rating
Banks 1, 2, 3, 4: 80 db (100 KHz - 2 MHz)
Bank 5, High Current Outlets: 60 db (100 KHz - 2 MHz)
Signal Line Protection
2 LAN, 1 Tel, 3 Cable/Satellite
Length
24 (Inches)
Width
20.1 (Inches)
Height
10.4 (Inches)
Weight
24 (Lbs)
UL1449 Suppression Rating
330V
Peak Impulse Current
72,000 A
Energy Dissipation
2125 Joules
LAN Circuits -Wires Protected
8-Wires
LAN Circuits - Connectors
RJ-45
LAN Circuits - Compatibility
10/100bT
LAN Circuits - Clamping Level
52V
USB Circuit - Power Delivery
500 mA @ 5VDC
USB Circuit - Jacks
USB-A
Telco Protection - Wires Protected
2-Wire, Pins 4 & 5
Telco Protection - Suppression Modes
Metallic & Longitudinal
Telco Protection - Fuseless/Auto-resetting
Yes
Telco Protection - Connectors
RJ-11
Telco Protection - Clamping Level
260V
Telco Protection - Capacitance
30pf (approx.)
Universal Coax Protection - Shielded
Yes
Coax Protection - Insertion Loss
< 0.5 dB
Coax Protection - HD 1080 i/p Ready
Yes
Coax Protection - Frequency Range
0 MHz - 2.2 GHz
Coax Protection - Connections
Female "F", Gold Plated
Coax Protection - Clamping Level
75V
Coax Protection -Bidirectional
Yes
