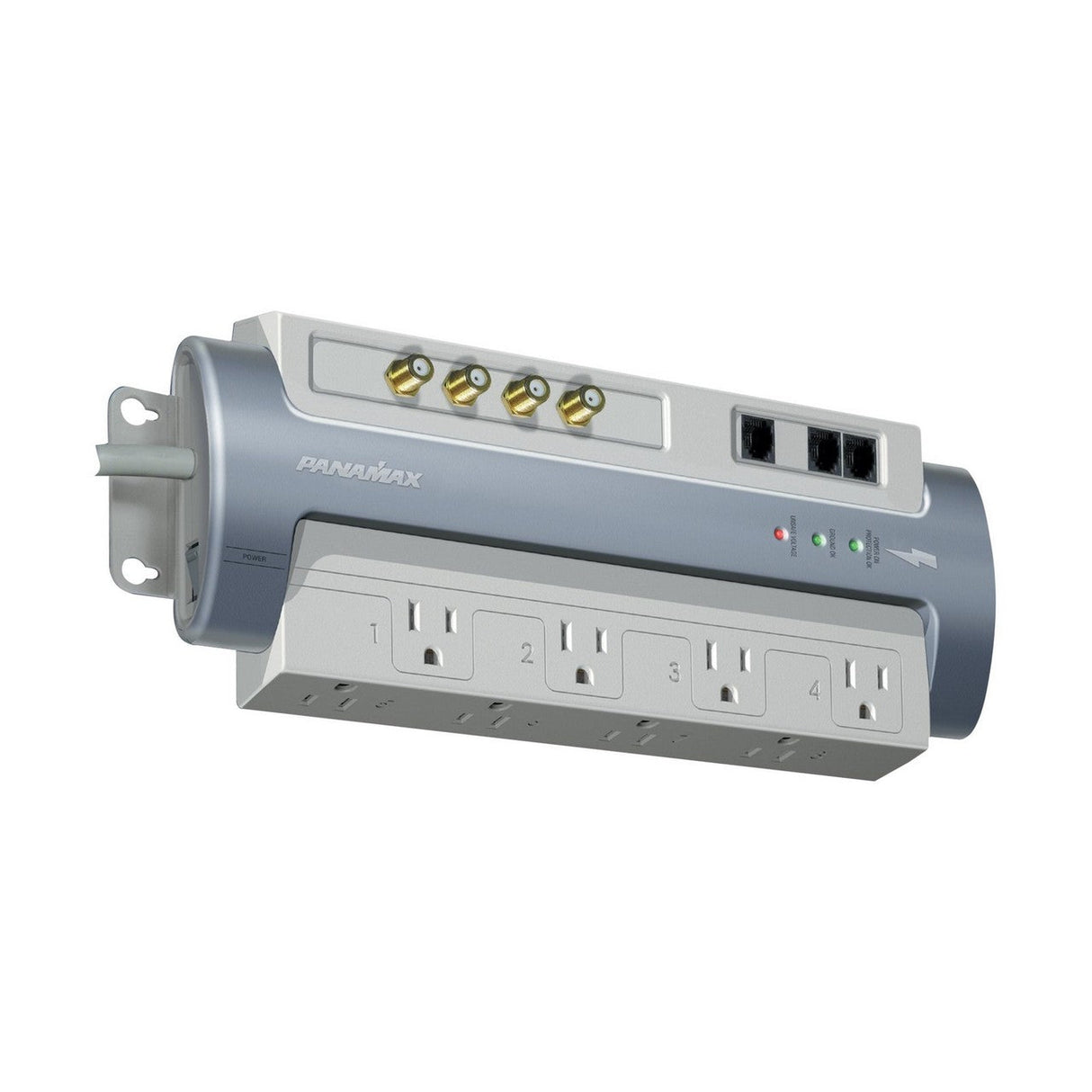

Panamax M8-AV Home Theater Power Management Device
AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV eliminates voltage irregularities & protects your AV system.
SURGE PROTECTION
Panamax's patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnecte dwhen voltage returns to a safe level, eliminating service calls or system downtime.
IMPROVES PICTURE & SOUND QUALITY
The M8-AV's Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Key Features
- CABLE/SAT PROTECTION
Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines. - SURGE PROTECTION
Exclusive Protect or Disconnect circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment. - 8 OUTLETS
8 filtered and surge protected outlets for all of your power needs. - TELEPHONE LINE PROTECTION
Protects equipment from electrical surges that travel over telephone lines. - AVM
Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns. - HI DEF READY
Hi-Def Designed to work with your High Definition system.
Technical Specifications
Weight
3.5 lbs.
Dimensions
12 in. L x 5 in. W x 1.75 in H (12.5 in. L Including brackets)
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
500V
Thermal Fusing
Yes
Single Pulse Energy Dissipation
1650 Joules
Response Time
< 1ns
Protection Modes
L-N, L-G, N-G
Protect or Disconnect Circuitry
Yes
Power Cord
6 ft fixed
Plug Type
Right angle, 45 degree offset
Peak Impulse Current
52,000 Amps
Patented Power Management Circuit
Yes
Maximum Current Rating
15 A (1800W)
Line Voltage
120VAC, 50/60Hz
Initial Clamping Level
200V Peak, 141V RMS
EMI/RFI Noise Filtration
50 dB(100 KHz - 1 MHz)
Auto-Resetting Under-Voltage Shutoff
90V ± 6V
Auto-Resetting Over-Voltage Shutoff
144V ± 8V
Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)
Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
HD 1080 i/p Ready: Yes
Frequency Range: 0MHz - 2.2 GHz
Connections: Female "F", Gold Plated
Clamping Level: 75V
Bidirectional: Yes
